| Usage: | Tension Compression Load Cell | Theory: | Strain Gauge Load Cell |
|---|---|---|---|
| Output: | Analog Sensor | ||
| High Light: | tension load cell 5kg,force transducer 50N,force sensor 50N |
||

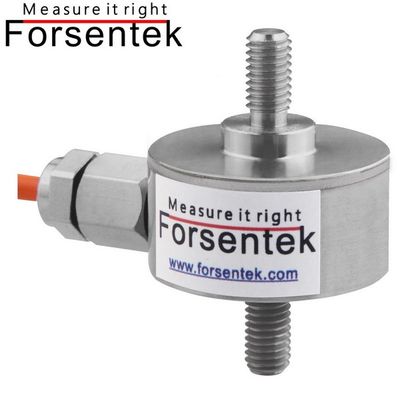

Tension load cell 5kg tension force sensor 50N
Features
Application
Dimensions
Specifications
| Capacity | 5kg 10kg 20kg 30kg 50kg 100kg |
| Rated output | 1.7-2.2mV/V |
| Excitation | 5-15V |
| Zero balance | ±2% R.O. |
| Nonlinearity | ±0.3% R.O. |
| Hysteresis | ±0.3% R.O. |
| Nonrepeatability | ±0.1% R.O. |
| Creep(30min) | ±0.1% R.O. |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Compensated temperature | -10...+40oC |
| Operating temperature | -20...+60oC |
| Temperature shift zero | ±0.01% R.O./oC |
| Temperature shift span | ±0.01% R.O./oC |
| Input resistance | 700±30 ohms |
| Output resistance | 700±5 ohms |
| Insulation resistance | >5000M ohms |
| Ingress protection | IP64 |
| Material of element | Stainless steel |
| Cable | Ø3*2800mm |
|
Wiring code |
Red--E+ Black--E- Green--S+ White--S- |
Tension load cell 5kg tension force transducer 50N
Ordering code: FL25-50N,FL25-100N,FL25-200N,FL25-300N,FL25-500N,FL25-1KN
