| Usage: | Tension Measurement And Control | Structure: | Pillow Block Load Bearing Load Cell |
|---|---|---|---|
| Capacity: | 100N 200N 300N 500N 1kN 2kN |

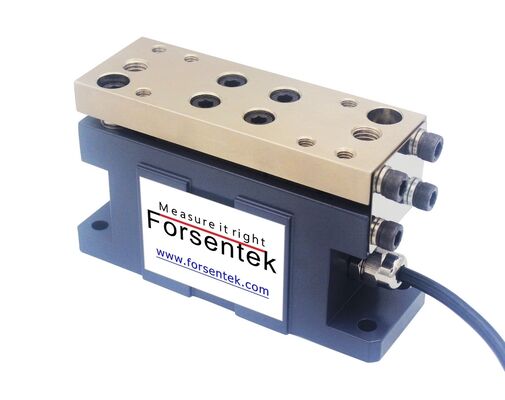

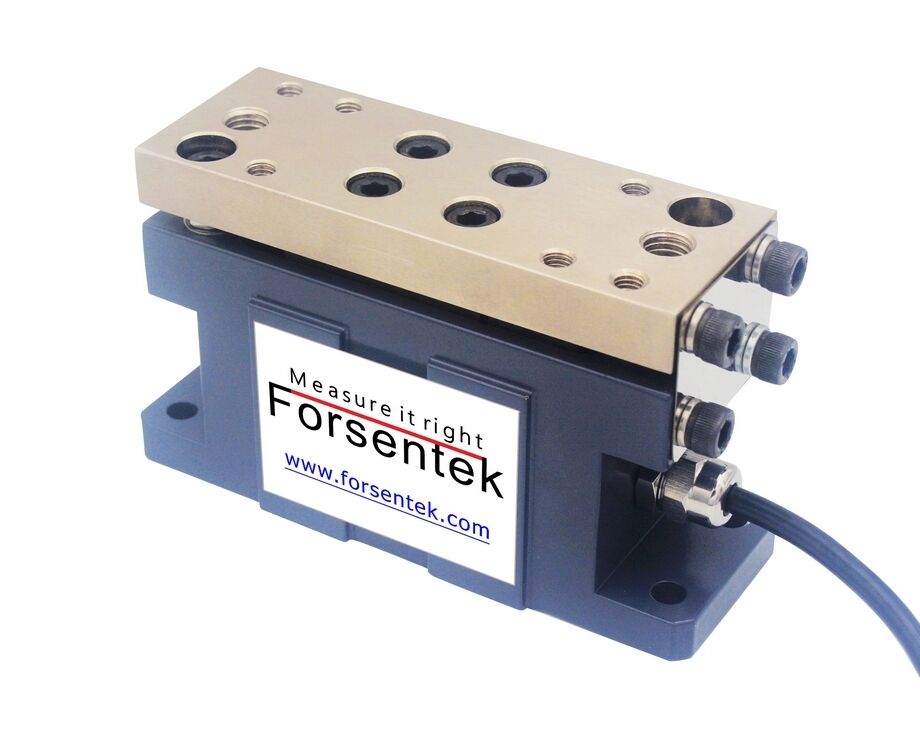

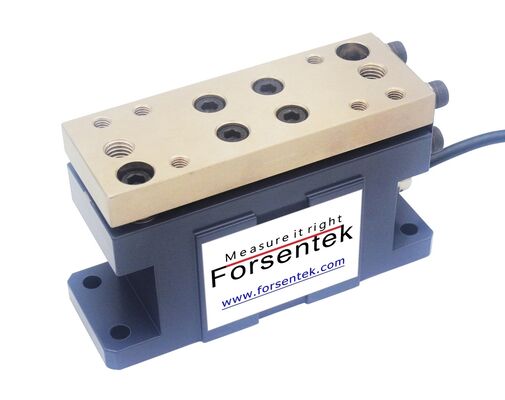

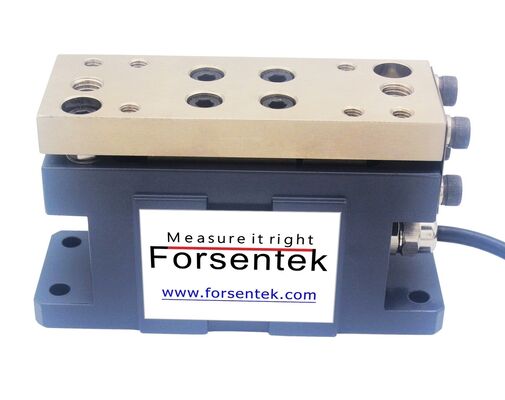

Pillow Block Tension Sensor 0-2000N Under Pillow Block Load Cell
The FZTF Pillow block tension sensor is a compact and highly accurate solution developed for web tension monitoring in continuous production lines. Designed to fit between a pillow block bearing and the supporting machine frame, this Under pillow block load cell senses the load transmitted from the idler roll shaft and converts it into reliable tension signals for real-time control. Its robust structure ensures secure installation, consistent force transmission, and dependable long-term performance even in demanding industrial environments. With capacity options from 100N to 2000N, this force measuring block is suitable for a wide range of light- to medium-duty tension measurement and control tasks.
Built for modern web handling applications, the FZTF performs reliably in industries such as printing, flexible packaging, paper converting, film production, textiles, and lithium battery manufacturing. It is commonly integrated into slitting and rewinding systems, laminating and coating equipment, gravure and flexographic printing presses, extrusion lines, and foil or wire tension control machines. By delivering stable and precise force feedback, this Pillow block tension sensor helps optimize web tracking, minimize material waste, improve production efficiency, and maintain consistent product quality during high-speed processing.
Specifications
| Capacity |
100N 200N 300N 500N 1kN 2kN 10kg 20kg 30kg 50kg 100kg 200kg |
| Rated output | 2.0 mV/V |
| Excitation | 3-12V |
| Zero balance | ±0.05mV/V |
| Nonlinearity | ±0.3% of full capacity |
| Hysteresis | ±0.3% of full capacity |
| Nonrepeatability | ±0.1% of full capacity |
| Creep(3min) | ±0.1% of full capacity |
| Safe overload | 150% of full capacity |
| Ultimate overload | 200% of full capacity |
| Compensated temperature | 0...+40oC |
| Operating temperature | -20...+60oC |
| Temperature shift zero | ±0.02% R.O./oC |
| Temperature shift span | ±0.02% R.O./oC |
| Input resistance | 380±30 ohms |
| Output resistance | 352±5 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP50 |
| Material of element | Alloy steel |
| Cable | Ø5.3*2000mm 4-core shielded |
| Wiring code @ Tension |
Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal- |
