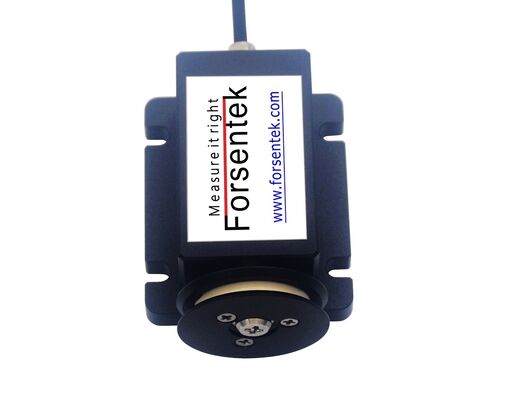

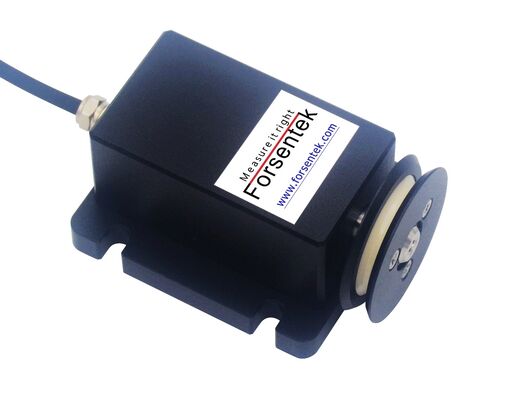

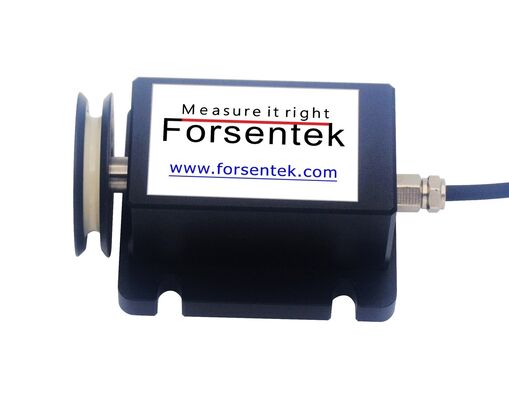

On-line Tension Sensor 0-5kg for Wire and Yarn Tension Measurement and Control
The FZAP is an on-line tension sensor developed for continuous monitoring of running line forces in automated production environments, delivering precise performance as a yarn tension sensor and wire tension transducer across a wide range of flexible materials. It is widely used for copper and aluminum conductors, polyester and nylon fibers, optical fiber cables, fishing lines, elastic filaments, and various textile yarns, making it suitable for both textile processing and wire handling systems. With its robust design, it ensures consistent signal stability even under fluctuating operating conditions, supporting accurate process feedback in real time.

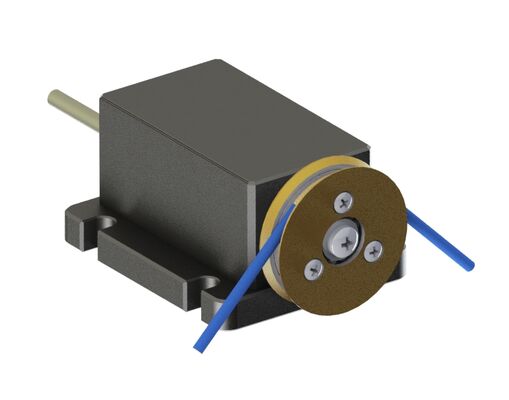

As an advanced solution for wire tension measurement, the FZAP adopts a single-roller sensing architecture that guides moving materials smoothly while maintaining highly repeatable output signals. Its measurement principle relies on a precision bearing system that converts radial force variations and wrap-angle changes into proportional electrical outputs, forming a reliable online tension transducer for industrial integration. A ceramic-coated guide wheel minimizes wear and extends service life, while the compact structure allows installation in space-constrained equipment. Available standard ranges of 500 g, 1 kg, 2 kg, and 5 kg cover light to medium load applications. In addition, the sensor supports customized roller dimensions, mounting configurations, and measurement ranges, providing flexible engineering adaptation and low minimum order quantity options for diverse production line requirements.
Specifications
| Capacity |
500g 1kg 2kg 5kg 5N 10N 20N 50N |
| Rated output | 1.0~1.5 mV/V |
| Excitation | 3-12V |
| Zero balance | ±0.05mV/V |
| Nonlinearity | ±0.2% of full capacity |
| Hysteresis | ±0.2% of full capacity |
| Nonrepeatability | ±0.1% of full capacity |
| Creep(3min) | ±0.1% of full capacity |
| Safe overload | 150% of full capacity |
| Ultimate overload | 200% of full capacity |
| Compensated temperature | 0...+40oC |
| Operating temperature | -10...+60oC |
| Temperature shift zero | ±0.02% R.O./oC |
| Temperature shift span | ±0.02% R.O./oC |
| Input resistance | 380±30 ohms |
| Output resistance | 350±5 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP40 |
| Material of element |
500g: Aluminum 1/2/5kg: Stainless steel |
| Cable | Ø2.8*3000mm 4-core shielded |
| Wiring code @ Tension |
Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal- |
