| Usage: | Tension Measurement | Output: | 0-5V 0-10V 4-20mA |
|---|---|---|---|
| Capacity: | 100N 200N 300N 500N 1kN | Installation: | Flange Mounting |

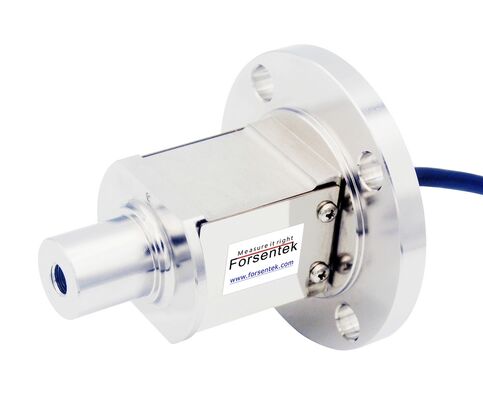

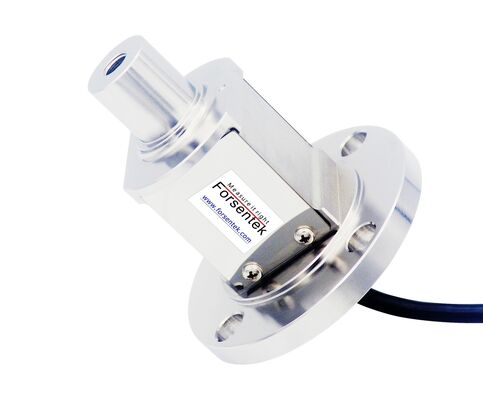

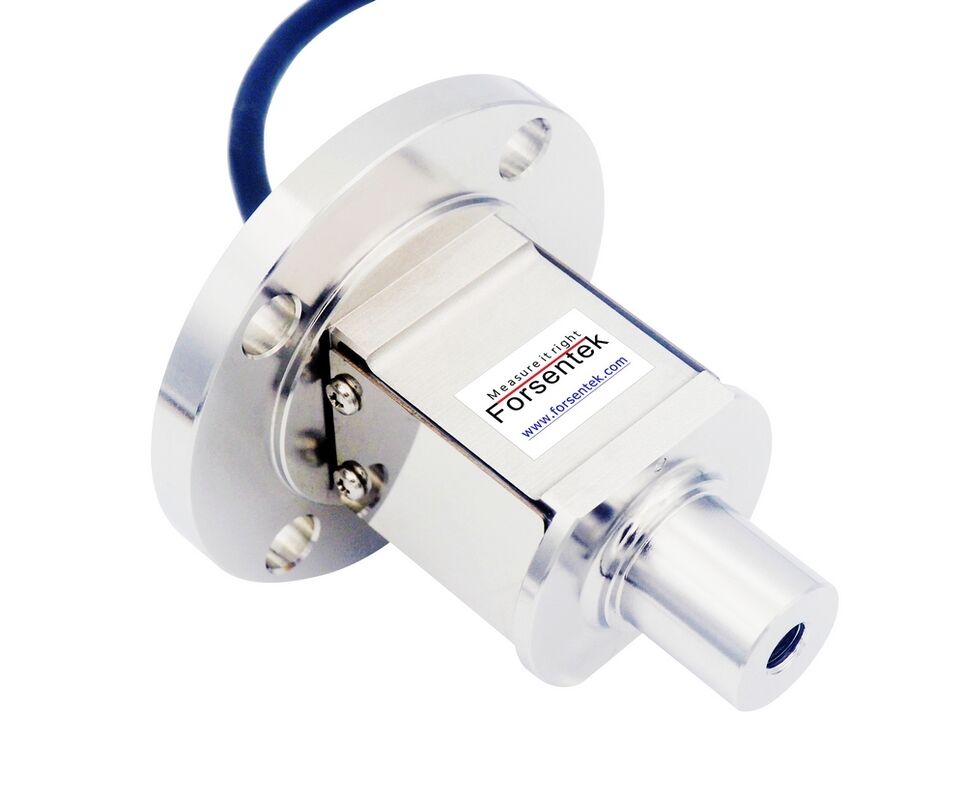

Online Tension Sensor For Cable And Rope Tension Measurement And Control
The FZAK is a high-precision on-line tension sensor engineered for continuous monitoring and control of ropes, cables, wires, tapes, and similar flexible materials. Constructed from durable stainless steel, it delivers reliable performance even in demanding industrial environments, ensuring consistent measurement accuracy over extended operation. Its adaptable design accommodates various guide pulleys, allowing seamless integration into diverse production lines and material types.
With available force capacities ranging from 100N to 1000N, this rope tension sensor meets the needs of both light and heavy-duty applications. The flange-mounted cable tension load cell offers multiple signal outputs, including mV/V, 0–5V, 0–10V, and 4–20mA, enabling straightforward connection to PLCs, control displays, and automated systems.
Commonly deployed in cable extrusion, wire drawing, textile manufacturing, winding processes, and film or foil production, the FZAK ensures precise tension control for improved product quality and operational efficiency. Customizable capacities and mechanical designs are available to accommodate specific installation conditions or specialized industrial requirements, making this on-line tension sensor a versatile solution for a wide range of manufacturing applications.
Specifications
| Capacity |
100N 200N 300N 500N 1kN |
|
| Rated output | 1.0mV/V | 0-5V 0-10V 4-20mA |
| Excitation | 3-15V | 12~24V DC |
| Zero balance | ±2% R.O. | |
| Nonlinearity | ±0.2% of full capacity | |
| Hysteresis | ±0.2% of full capacity | |
| Nonrepeatability | ±0.1% of full capacity | |
| Creep(3min) | ±0.1% of full capacity | |
| Safe overload | 150% of full capacity | |
| Ultimate overload | 200% of full capacity | |
| Compensated temperature | 0...+40oC | |
| Operating temperature | -20...+60oC | |
| Temperature shift zero | ±0.02% R.O./oC | |
| Temperature shift span | ±0.02% R.O./oC | |
| Bridge resistance | 380±30 ohms | |
| Insulation resistance | >2000M ohms | |
| Ingress protection | IP62 | |
| Material of element | Stainless steel | |
| Cable | Ø5.5*3000mm 4-core shielded | |
| Wiring code @ 1.0mV/V |
Red--Power+ Black--Power- Green--Output+ White--Output- |
|
| Wiring code @ 0-5V 0-10V 4-20mA |
Red--Power+ Black--Power-/Output- White--Output+ |
|
