| Usage: | Tension Measurement And Control | Structure: | Shaft-through Load Cell |
|---|---|---|---|
| Capacity: | 15kg 30kg 50kg 75kg |

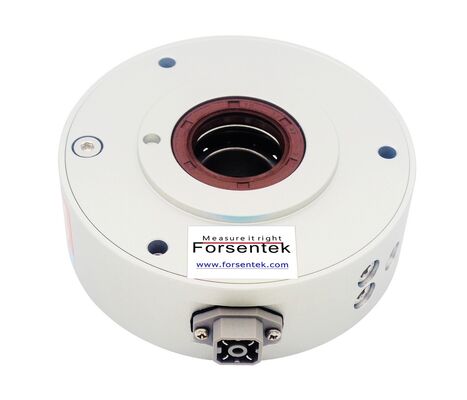

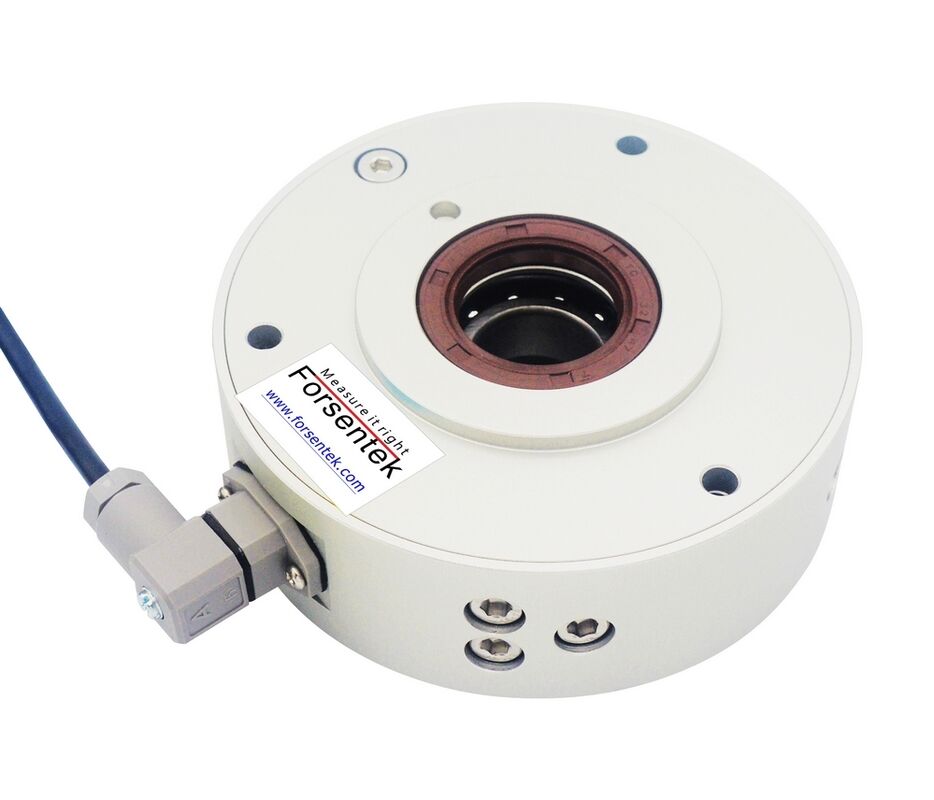

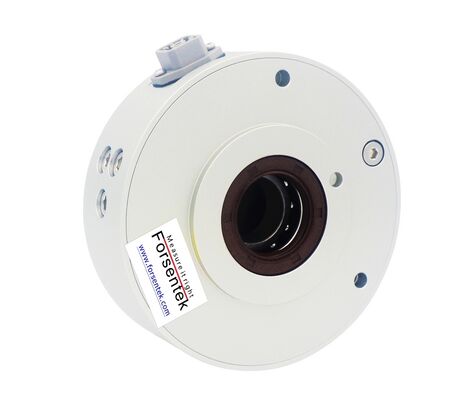

Shaft-through Load Cell 15kg 30kg 50kg 75kg Roller Tension Sensor
The FZTP shaft-through load cell is a high-precision sensing solution developed for accurate force monitoring in continuous material processing systems. Acting as a reliable web tension sensor, it measures the load applied by moving webs directly through the support rollers, enabling stable and responsive tension detection. Built for durability and consistency, this sensor is available in multiple capacity ranges, making it suitable for light to medium-duty industrial applications where steady performance is essential. Its integrated bearing structure allows smooth shaft rotation and reduces mechanical friction, supporting long-term operational reliability in demanding production environments.
As a specialized roller load cell, the FZTP is widely used in industries such as printing, packaging, paper production, and textile processing, where precise tension regulation directly impacts product quality. By delivering continuous feedback during winding and unwinding operations, this shaft-through load cell helps maintain uniform material flow and prevents common defects such as wrinkling, stretching, tearing, or misalignment. Its stable output simplifies signal integration and reduces maintenance effort, improving overall system efficiency. For applications with non-standard shaft dimensions or special installation requirements, customized configurations are available to ensure optimal compatibility and performance. This advanced sensing solution enhances process stability, reduces downtime, and supports consistent, high-quality output in modern automated production lines.
Specifications
| Capacity |
15kg 30kg 50kg 75kg 150N 300N 500N 750N |
| Rated output | 1.0 mV/V |
| Excitation | 3-12V |
| Zero balance | ±0.05mV/V |
| Nonlinearity | ±0.2% of full capacity |
| Hysteresis | ±0.2% of full capacity |
| Nonrepeatability | ±0.1% of full capacity |
| Creep(5min) | ±0.05% of full capacity |
| Safe overload | 150% of full capacity |
| Ultimate overload | 200% of full capacity |
| Compensated temperature | 0...+40oC |
| Operating temperature | -20...+60oC |
| Temperature shift zero | ±0.02% R.O./oC |
| Temperature shift span | ±0.02% R.O./oC |
| Input resistance | 750±50 ohms |
| Output resistance | 700±5 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP50 |
| Material of element | Aluminum |
| Cable | Ø5.2*2000mm 4-core shielded |
| Wiring code @ Tension |
Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal- |
