| Usage: | Tension Measurement And Control | Structure: | Flange Load Cell |
|---|---|---|---|
| Capacity: | 10kg 20kg 30kg 50kg |
Flange Load Cell 10kg 20kg 30kg 50kg For Tension Measurement And Control

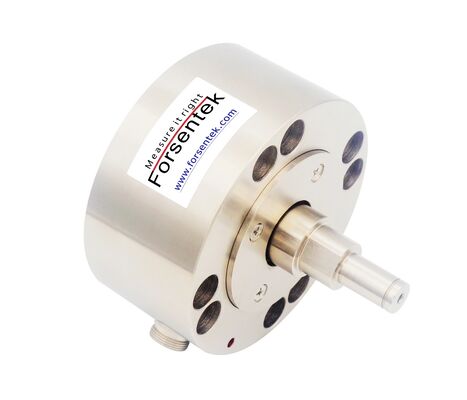

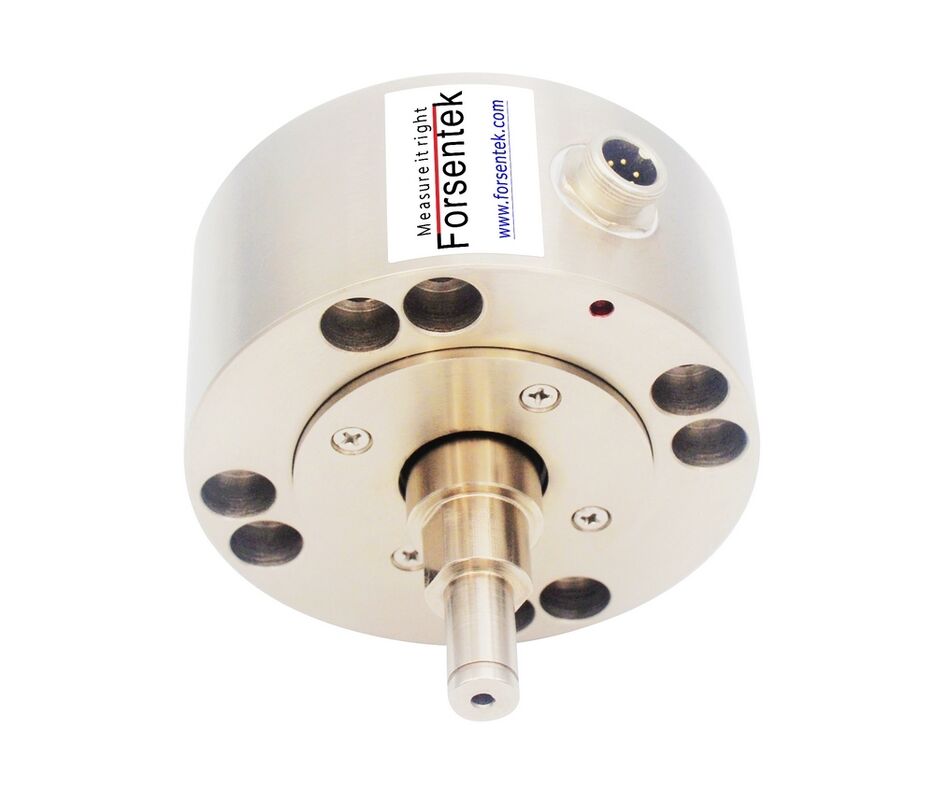

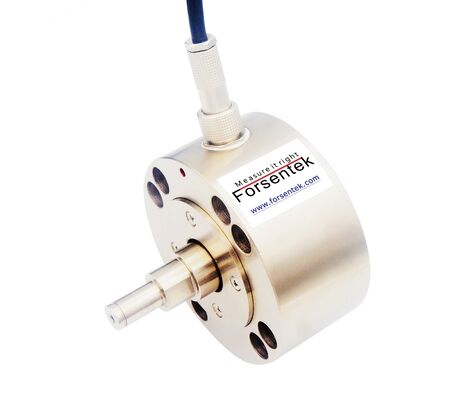

The FZTQ flange mount load cell is a precision-engineered tension sensor developed for accurate tension measurement and control in industrial production systems. Constructed from high-strength alloy steel for durability and long service life, it is available in capacities of 10kg, 20kg, 30kg, and 50kg to suit a variety of force monitoring applications. Its compact flange-mounted design allows easy integration into machinery, while the 10mm diameter shaft enables convenient installation of guide rollers for handling cables, wires, films, tapes, belts, and other continuous materials.
Designed as a dependable tension load cell, the FZTQ continuously measures pulling force and provides real-time feedback for maintaining stable tension throughout production processes such as winding, unwinding, laminating, printing, coating, and converting. Accurate force monitoring helps prevent material stretching, wrinkling, slippage, and breakage, ensuring smoother operation and consistent product quality. This robust flange mount load cell is an ideal solution for automated systems where reliable tension regulation, reduced material waste, and improved production efficiency are critical.
Specifications
| Capacity |
10kg 20kg 30kg 50kg 100N 200N 300N 500N |
| Rated output | 1.0 mV/V |
| Excitation | 3-12V |
| Zero balance | ±0.05mV/V |
| Nonlinearity | ±0.3% of full capacity |
| Hysteresis | ±0.3% of full capacity |
| Nonrepeatability | ±0.1% of full capacity |
| Creep(5min) | ±0.1% of full capacity |
| Safe overload | 150% of full capacity |
| Ultimate overload | 200% of full capacity |
| Compensated temperature | 0...+40oC |
| Operating temperature | -20...+60oC |
| Temperature shift zero | ±0.02% R.O./oC |
| Temperature shift span | ±0.02% R.O./oC |
| Input resistance | 380±30 ohms |
| Output resistance | 352±3 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP50 |
| Material of element | Alloy steel |
| Cable | Ø5.4*2000mm 4-core shielded |
| Wiring code @ Tension |
Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal- |
