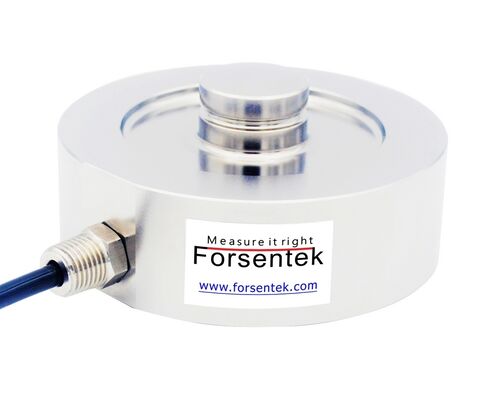

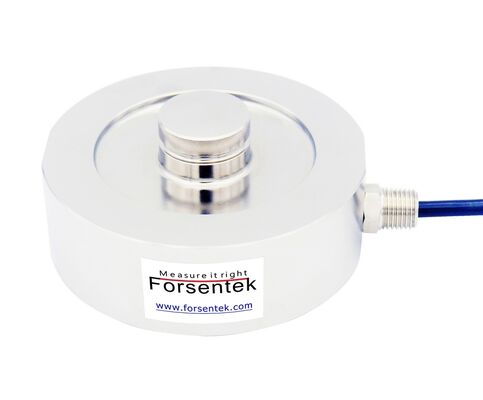

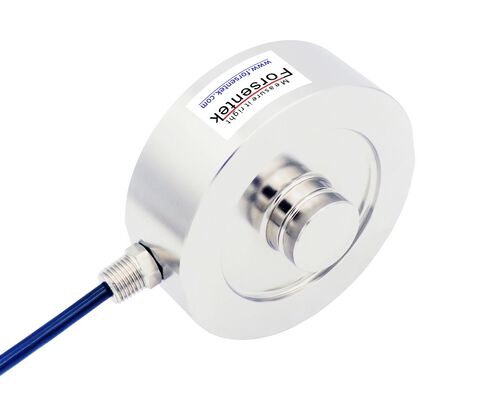

Waterproof Disc Load Cell 1000kN 500kN 300kN 200kN 100kN 50kN Round Force Sensor
The FCSE disc load cell is a compact yet powerful hermetic load cell engineered for precise and reliable compression force measurement in challenging industrial and laboratory environments. Constructed from high-quality stainless steel, this round force sensor is fully sealed to meet IP68 standards, offering exceptional resistance to moisture, dust, oil, and other harsh external conditions. Its durable and robust design ensures long-term stability and dependable performance whether installed indoors or exposed to demanding outdoor applications. The hermetic sealing not only protects the sensor’s internal components but also extends its operational lifespan, making it highly suitable for use in environments where reliability and accuracy are critical.
Offering a wide range of capacities from 5kN to 1000kN across ten models, the FCSE disc load cell is incredibly versatile, capable of delivering accurate force measurements for both low-capacity test benches and large-scale heavy-duty compression monitoring systems. Its strain-gauge diaphragm design incorporates a convex loading button that helps absorb minor installation misalignments, significantly enhancing measurement accuracy, repeatability, and overall stability. The compact button-type form factor allows integration into spaces with tight installation constraints without compromising performance. This makes the FCSE ideal for applications such as press-fit force monitoring, material testing machines, structural compression testing, and a variety of industrial automation systems where precision and durability are essential.
Specifications
| Capacity |
5kN / 500kg 10kN / 1 ton 25kN / 2.5 ton 50kN / 5 ton 100kN / 10 ton 150kN / 15 ton 200kN / 20 ton 300kN / 30 ton 500kN / 50 ton 1000kN / 100 ton |
| Rated output | 2.0mV/V |
| Excitation | 5-15V |
| Zero balance | ±0.05mV/V |
| Nonlinearity |
5~100kN: ±0.05% F.S. 150~300kN: ±0.1% F.S. 500/1000kN: ±0.2% F.S |
| Hysteresis |
5~100kN: ±0.05% F.S. 150~300kN: ±0.1% F.S. 500/1000kN: ±0.2% F.S |
| Nonrepeatability |
5~100kN: ±0.03% F.S. 150~300kN: ±0.05% F.S. 500/1000kN: ±0.1% F.S |
| Creep(30min) | ±0.05% R.O. |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Compensated temperature | -10...+40oC |
| Operating temperature | -20...+65oC |
| Temperature shift zero | ±0.05% R.O./10oC |
| Temperature shift span | ±0.05% R.O./10oC |
| Input resistance | 750±100 ohms |
| Output resistance | 700±50 ohms |
| Insulation resistance | >5000M ohms |
| Ingress protection | IP68 |
| Material of element | Stainless steel |
| Cable | Ø6.5*6000mm 4-core shielded cable |
| Wiring code |
Red--Excitation+ Black--Excitation- |
