| Type: | Flange Mounted Load Cell | Capacity: | 2t 1t 500kg 200kg 100kg 50kg 20kg |
|---|---|---|---|
| Usage: | Compression Force Measurement | Mounting: | Flange To Flange |
| Output: | Analog Sensor |

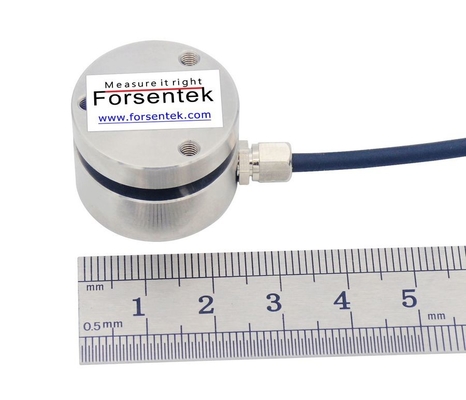

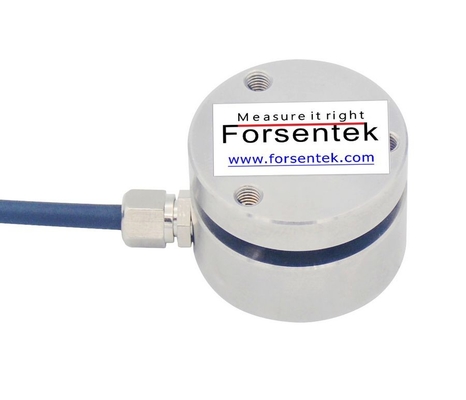

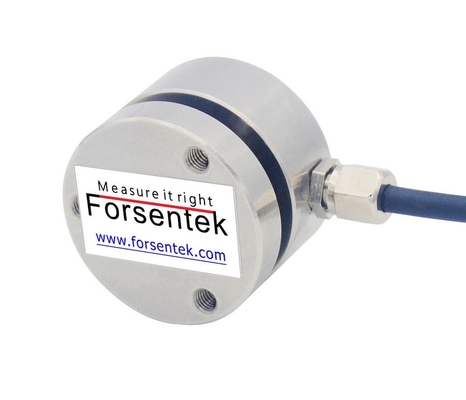

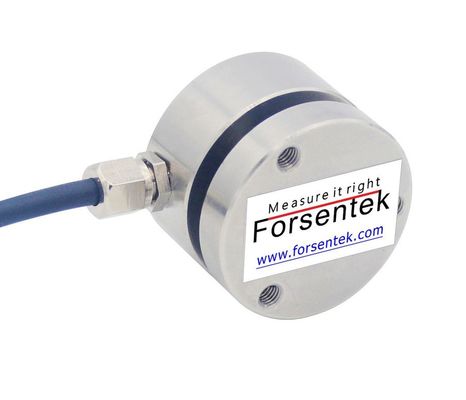

Flange Type Load Cell 20kg 50kg 100kg 200kg 500kg 1t 2t Compression Sensor
Column Type Flange Load Cell FFP is made of stainless steel utilizing strain gauge technology to deliver mV/V output from the full wheatstone bridge. Flange Type Force Sensor FFP offers 0-20kg / 0-50kg / 0-100kg / 0-200kg / 0-500kg / 0-1t / 0-2t seven rated measuring ranges to choose from, Column type force transducer FFP is designed for compression force measurement with flange-to-flange configuration. Flange Mounted Force Sensor is suitable for applications such as automated control process, cylinder thrust measurement, assembly force monitoring, bearing press fit measurement , fixture clamping force test, hand press force verification,and so on. In addition to the standard specifications, Forsentek is also capable of and willing to provide load cell custom design service to meet requirements of different applications.
Dimensions(Unit in "mm")
| Ordering code | Measurement Range | Force direction |
| FFP-200N | 0-200N / 0-20kgf | Compression |
| FFP-500N | 0-500N / 0-50kgf | |
| FFP-1kN | 0-1000N / 0-100kgf | |
| FFP-2kN | 0-2000N / 0-200kgf | |
| FFP-5kN | 0-5000N / 0-500kgf | |
| FFP-10kN | 0-10kN / 0-1000kgf | |
| FFP-20kN | 0-20kN / 0-2000kgf |
Specifications
| Capacity |
200N / 500N / 1kN / 2kN / 5kN / 10kN / 20kN |
| Rated output | 1.5 mV/V |
| Excitation | 3-15V |
| Zero balance | ±0.05mV/V |
| Nonlinearity | ±0.5% R.O. |
| Hysteresis | ±0.5% R.O. |
| Nonrepeatability | ±0.2% R.O. |
| Creep(5min) | ±0.1% R.O. |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Compensated temperature | -10...+40oC |
| Operating temperature | -20...+60oC |
| Temperature shift zero | ±0.02% R.O./oC |
| Temperature shift span | ±0.02% R.O./oC |
| Input resistance | 380±30 ohms |
| Output resistance | 350±10 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP65 |
| Material of element | Stainless steel |
| Cable | Ø3*2000mm 4-core shielded |
| Wiring code |
Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal- |
A Force Sensor is a transducer that converts mechanical load into mV signal proportional to the applied force.The acting force causes deformation of the measuring element,the bonded strain gage deforms accordingly which will cause the resistance change of the wheatstone bridge,under constant power supply, the output signal between Sig+ and Sig- will change proportionally,thus the load/force can be measured by measuring the output signal from the transducer.
Output signal of load cell and amplifier:
Load cell output: = (Power supply * Rated output) * Load / Capacity
Rated output of Flange Mounted Load Cell FFP is normally around 1.5mV/V.
Power supply of Flange Type Load cell FFP is normally within 3-15V.
Load / Capacity is within 0-1.
So the output range of Compression Type Force Sensor FFP is normally within 0…+22.5mV.
Example one: Flanged Load Cell FFP-500kg with 1.5mV/V sensitivity powered by 5V DC,the output range is 0mV...+7.5mV.
Example two: Flange Type Load Cell FFP-200kg with 1.5mV/V rated output powered by 10V DC,the output range is 0mV...+15mV.
The mV/V output from the wheatstone bridge sometimes can hardly be processed directly, a signal conditioner can be used with the load cell to deliver -5~5V, 0-10V or 4-20mA output.
Example one: Flange Type Compression Load Cell FFP-100kg working with amplifier FSC(0-10V)-24V,the Load-Voltage relationship will be 0-100kg compression force VS 0-10V output, which is linear regardless of the measurement error, 1V output corresponds to 10kg compression load, 2V output corresponds to 20kg compression load, and so on.
Example two: Flange Type Flat Load Cell FFP-50kg working with amplifier FSC(4-20mA)-24V,the Force-Current relationship will be 0-50kg compression force VS 4-20mA output, which is linear regardless of the measurement error, 4mA output corresponds to “0” load, 5.6mA output corresponds to 5kg compression load, 12mA output corresponds to 25kg compression load, and so on.
Flange Type Load Cell 20kg 50kg 100kg 200kg 500kg 1t 2t Compression Sensor
