Usage: Force Measurement Type: Cylinder Flat Load Cell
Output: Analog Sensor Capacity: 20kN 10kN 5kN 2kN 1kN 500N 200N
Force Measurement Direction: Tension And Compression Mounting: Flange-to-Flange

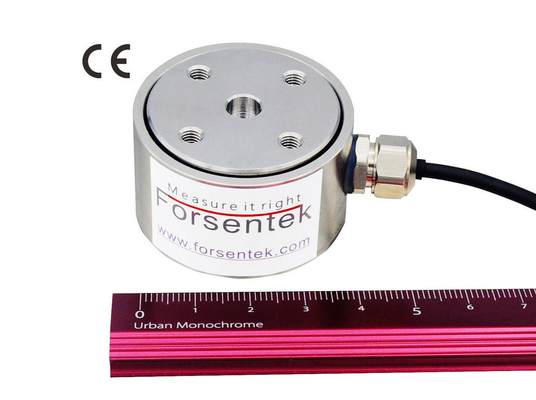

Flange Type Load Cell 20kN 10kN 5kN 2kN 1kN 500N 200N Flange Mounted Force Transducer

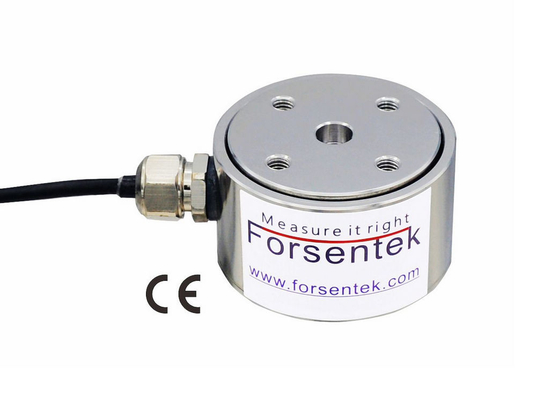

Flange-to-Flange type tension and compression Force Transducer FFA is made of stainless steel utilizing strain gauge technology to deliver maximum 0.1% non-linearity of full scale.Tension Compression Force Sensor  FFA offers 200N / 500N / 1000N / 2000N / 5000N / 10kN / 20kN seven rated capacities to choose from, transducer FFA can be used for both tension and compression force measurement. Stainless steel construction, flange design, compact size, bidirectional force measurement, high accuracy, Flange Load Cell FFA offers a perfect force measuring solution for applications such as wire tension control, force distribution analysis, automated control, cylinder thrust measurement, assembly force monitoring, spring testing, ultrasonic welding clamp force control, hand press force verification,and so on. In addition to the standard specifications, Forsentek is also capable of and willing to provide custom design service to meet requirements of different applications.

flange to flange load cell 20kN 10kN 5kN 2kN

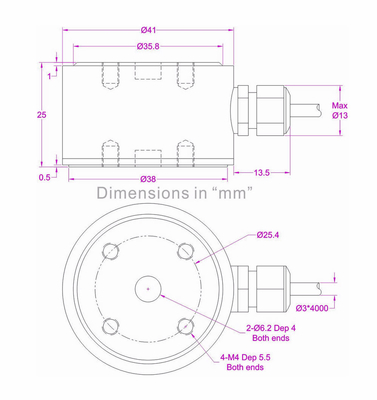

Dimensions(Unit in "mm")

flange to flange load cell 1kN 2kN 5kN 10kN 20kN

Ordering code Measurement Range Force direction
FFA-200N 0-200N / 0-20kgf Tension/compression
FFA-500N 0-500N / 0-50kgf
FFA-1kN 0-1000N / 0-100kgf
FFA-2kN 0-2000N / 0-200kgf
FFA-5kN 0-5000N / 0-500kgf
FFA-10kN 0-10kN / 0-1000kg
FFA-20kN 0-20kN / 0-2000kg

Specifications

Capacity

200N / 20kg / 45 lbf
500N / 50kg / 112lb
1000N / 100kg / 225 lbf

2000N / 200kg / 450lb
5000N / 500kg / 1.12klbf
10kN / 1000kg / 2.25k lb

20kN / 2000kg / 4.5klb

Rated output 2.0 mV/V
Excitation 3-15V
Zero balance ±0.05mV/V
Nonlinearity ±0.1% R.O.
Hysteresis ±0.1% R.O.
Nonrepeatability ±0.05% R.O.
Creep(5min) ±0.05% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.02% R.O./oC
Temperature shift span ±0.02% R.O./oC
Input resistance 400±50 ohms
Output resistance 400±10 ohms
Insulation resistance >2000M ohms
Ingress protection IP62
Material of element Stainless steel
Cable Ø3*3000mm 4-core shielded
Wiring code

Red--Excitation+   Black--Excitation-

Green--Signal+   White--Signal-



The output signal from the wheatstone bridge is normally within -30mV...+30mV. A load cell amplifier can be used to deliver -5~5V, 0-10V or 4-20mA output.

Example: Flange Load Cell FFA-10kN working with -10-10V amplifier,the Force-Voltage relationship will be 0-10kN compression load VS 0-10V output, 0-10kN tension load VS 0-(-10V) output,when you get 5V output,it means the current load is 5kN compression force,when you get -3V output,it means the current load is 3kN tension force,and so on.

Flange Type Load Cell Sensor 20kN 10kN 5kN 2kN 1kN 500N 200N Flange Mounted Force Transducer

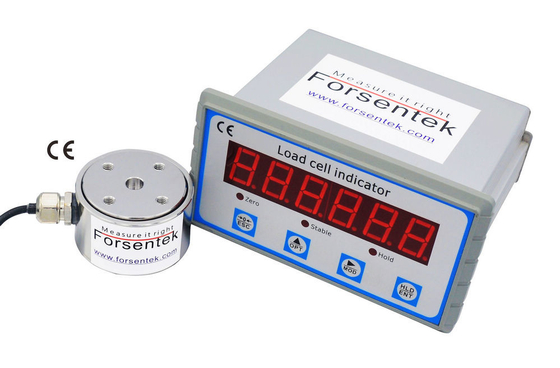

flange type load cell with digital indicator
Click here to download datasheet
