Flange Type Load Cell 1000kg Thrust Force Sensor 10kN Compression Force Measurement

Flange Type Load Cell 1000kg Thrust Force Sensor 10kN Compression Force Measurement

Flange Type Load Cell 1000kg Thrust Force Sensor 10kN Compression Force Measurement
Flange Type Load Cell 1000kg Thrust Force Sensor 10kN Compression Force Measurement Flange Type Load Cell 1000kg Thrust Force Sensor 10kN Compression Force Measurement Flange Type Load Cell 1000kg Thrust Force Sensor 10kN Compression Force Measurement Flange Type Load Cell 1000kg Thrust Force Sensor 10kN Compression Force Measurement

Large Image :  Flange Type Load Cell 1000kg Thrust Force Sensor 10kN Compression Force Measurement Get Best Price

Product Details:
Place of Origin: China
Brand Name: Forsentek
Certification: CE
Model Number: FFA
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: Carton
Delivery Time: 3~25 working days
Payment Terms: T/T,Western Union or Paypal
Supply Ability: 2670pcs/month
Detailed Product Description
Usage: Thrust Force Measurement Type: Flange Load Cell
Force Range: 20kg 50kg 100kg 200kg 500kg 1t 2t Load Direction: Tension And Compression
Connection: Flange To Flange Output: Analog Force Sensor
Structure: Column Type Loadcell

Flange Type Load Cell 1000kg Thrust Force Sensor 10kN Compression Force Measurement

Flange Type Load Cell 1000kg is made of stainless steel utilizing strain gauge technology to deliver maximum 0.1% non-linearity of full scale.Traction And Compression Force Sensor  FFA offers 20kg / 50kg / 100kg / 200kg / 500kg / 1000kg / 2000kg seven rated load capacities to choose from, Thrust force transducer FFA can be used for both tension and compression force measurement. Stainless steel construction, flange design, compact size, bidirectional force measurement, high accuracy, Flange to Flange Load Cell FFA offers a perfect force measuring solution for applications such as wire tension control, force distribution analysis, automated control, air cylinder thrust force measurement, assembly force monitoring, spring testing, ultrasonic welding clamp force control, hand press force verification, and so on. In addition to the standard specifications, Forsentek is also capable of and willing to provide custom design service to meet requirements of different applications.

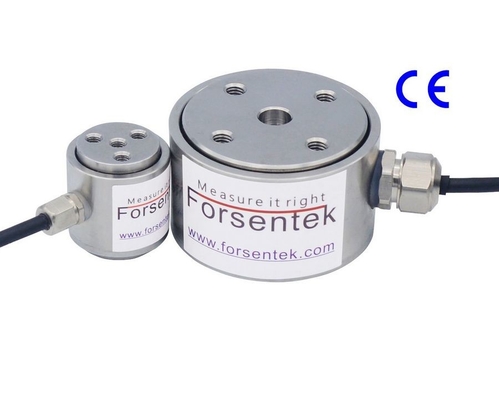

Flange_to_Flange_Load_Cell_1000kg

Specifications

Capacity

200N / 500N / 1kN / 2kN / 5kN / 10kN / 20kN
20kg / 50kg / 100kg / 200kg / 500kg / 1000kg / 2000kg
45lb / 110lb / 220lbs / 450lbf / 1.1klb / 2.2klb / 4.5klb

Rated output 2.0 mV/V
Excitation 3-15V
Zero balance ±0.05mV/V
Nonlinearity ±0.1% of capacity
Hysteresis ±0.1% of capacity
Nonrepeatability ±0.05% of capacity
Creep(5min) ±0.05% of capacity
Safe overload 150% of capacity
Ultimate overload 200% of capacity
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.02% R.O./oC
Temperature shift span ±0.02% R.O./oC
Input resistance 385±30 ohms
Output resistance 350±10 ohms
Insulation resistance >2000M ohms
Ingress protection IP62
Material of element Stainless steel
Cable Ø3*3000mm 4-core shielded
Wiring code

Red--Excitation+   Black--Excitation-

Green--Signal+   White--Signal-



Flange Type Load Cell 1000kg Thrust Force Sensor 10kN Compression Force Measurement

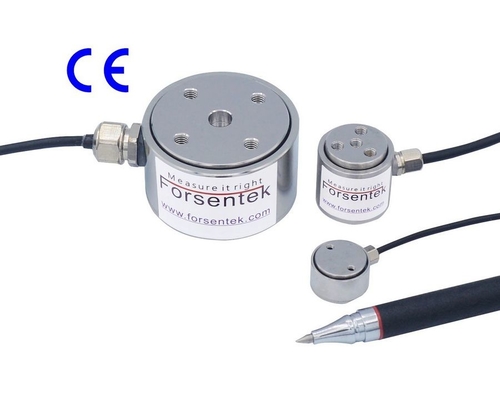

Thrust_Force_Sensor_10kN

A Force Sensor is a transducer that converts mechanical load into mV signal proportional to the applied force. The acting force causes deformation of the measuring element, the bonded strain gage deforms accordingly which will cause the resistance change of the wheatstone bridge, under constant power supply, the output signal between Sig+ and Sig- will change proportionally, thus the load/force can be measured by measuring the output signal from the transducer.
Load cell output: = (Power supply * Rated output) * Load / Capacity
Rated output of Flange Type Load Cell FFA is normally around 2.0mV/V.
Power supply of Flange Type Thrust Force Load Cell FFA is normally within 3-15V.
Load / Capacity is within 0-1.
So the output range of Flange Mounted Thrust Force Sensor FFA is normally within 0…+30mV(-30mV...+30mV for Pull And Press Force Measurement).
Example one: Flanged Load Cell FFA-5KN with 2.0mV/V sensitivity powered by 5V DC,the output range is -10mV...+10mV.
Example two: Tension Compression Load Cell FFA-500kg with 1.9mV/V rated output powered by 10V DC, the output range is -19mV...+19mV.

Thrust_Force_Load_Cell_1000kg

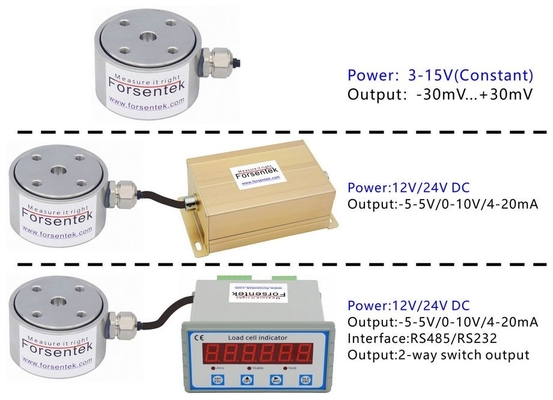

The mV/V output from the wheatstone bridge sometimes can hardly be processed directly, a signal conditioner can be used with the load cell to deliver -5~5V, 0-10V or 4-20mA output.
Example one: Flange Type Thrust Force Sensor FFA-500kg working with amplifier FSC(0-5V)-24V,the Force-Voltage relationship will be 0-500kg compression force VS 0-5V output, which is linear regardless of the measurement error, 1V output corresponds to 100kg compression load, 2V output corresponds to 200kg compression load, and so on.
Example two: Flange Mounted Compression Load Cell FFA-5kN working with amplifier FSC(4-20mA)-24V,the Force-Current relationship will be 0-5000N compression force VS 4-20mA output, which is linear regardless of the measurement error, 4mA output corresponds to “0” load, 5.6mA output corresponds to 500N compression load, 12mA output corresponds to 2500N tension load, and so on.

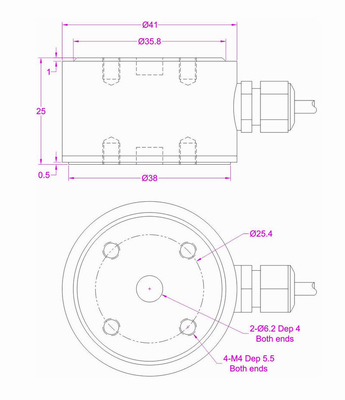

Dimensions(Unit in "mm")

Thrust Force Transducer 10kN

Ordering code Measurement Range Force direction
FFA-200N 0-200N / 0-20kgf Tension/compression
FFA-500N 0-500N / 0-50kgf
FFA-1kN 0-1000N / 0-100kgf
FFA-2kN 0-2000N / 0-200kgf
FFA-5kN 0-5000N / 0-500kgf
FFA-10kN 0-10kN / 0-1000kgf
FFA-20kN 0-20kN / 0-2000kgf


Click here to download datasheet
