Detailed Product Description
Usage: Compression Force Measurement Type: Micro Load Cell
Output: Analog Sensor Capacity: 10 Lb 20 Lb 45lb 110lb
Structure: Button Load Cell Outer Diameter: 8mm

Micro Button Load Cell 100lb 50lb 20 lb 10 lb Compression Force Measurement Transducer

Subminiature Button Load Cell FC8E is made of stainless steel based on metal foil stain gauge technology intended for compression force measurement. 1000 ohms high resistance strain gauge delivers better stability compared to commonly used 350ohms gauges, miniature load cell FC8E offers 0-11lb / 0-22lb / 0-45lb / 0-110lb four measuring ranges to choose from.Small size button type compression load cell FC8E is featured with only 8mm outer diameter and 6mm total height which makes it extremely suitable for force measurement applications with limited mounting space.Typical applications for transducer FC8E are such as clamping force measuremen, force overload protection, load distribution analysis, pressing die force measurement, auto equipment, assembly line and so on.
20lb button load cell 50lb

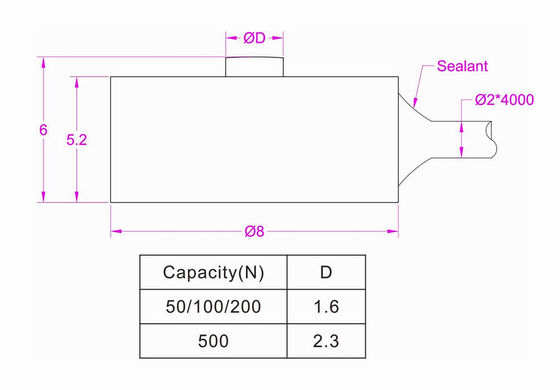

Dimensions(unit in milimeter)
10lb button load cell 20lb
Specifications

Capacity

50N / 5kg / 11 lb

100N / 10kg / 22 lbf

200N / 20kg / 44lbf

500N / 50kg / 110lb

Rated output 1.0 mV/V
Excitation 3-8V
Zero balance ±0.1mV/V
Nonlinearity ±1% of capacity
Hysteresis ±1% of capacity
Nonrepeatability ±0.5% of capacity
Creep(5min) ±0.2% of capacity
Safe overload 150% of capacity
Ultimate overload 200% of capacity
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.05% R.O./oC
Temperature shift span ±0.05% R.O./oC
Input resistance 900±100 ohms
Output resistance 900±100 ohms
Insulation resistance >2000M ohms
Ingress protection IP64
Material of element Stainless steel
Cable Ø2*4000mm 4-core shielded
Wiring code

Red--Excitation+ Black--Excitation-

Green--Signal+ White--Signal-


Load cell zero output(Zero Balance):The output signal of the loadcell with no-load applied,expressed in mV/V or as a percentage of rated output.The zero output is caused by the stress during strain gauge bonding,it can be handled during calibration or signal processing without affecting the measurement accuracy.

A Load Cell is a transducer that converts force acting on it into electronic signal which is proportional to the applied force.The acting force causes deformation of the measuring element,the bonded strain gauge deforms accordingly which will cause the resistance change of the wheatstone bridge,under constant power supply,the output signal between Sig+ and Sig- will change proportionally,thus the force can be measured by measuring the output signal from the load cell which is normally within 0...+10mV for model FC8E. A signal conditioner can be used to convert mV signal into 0-5V / 0-10V / 4-20mA output, taking compression force transducer FC8E-500N working with amplifier FSC(0-5V)-24V for example, the force-voltage relationship will be 0-500N load VS 0-5V voltage, 1V corresponds to 100N load, 2V voltage corresponds to 200N force,and so on.

Micro Button Load Cell 100lb 50lb 20 lb 10 lb Compression Force Measurement Transducer
50lb button load cell 100lb

Click here to download datasheet
