Detailed Product Description
Usage: Compression Force Measurement Type: Miniature Button Load Cell
Output: Analog Sensor Capacity: 50N 100N 200N 500N
Feature: Miniature Size Material: Stainless Steel
Diameter: 10mm Height: 6mm

Micro Button Load Cell 500N 200N 100N 50N Subminiature Compression Force Transducer

Subminiature Compression Load Cell Force Sensor FC10C is made of stainless steel based on metal foil stain gauge technology intended for compression force measurement. Load Button Load Cell FC10C offers 0-50N / 0-100N / 0-200N / 0-500N four rated measuring ranges to choose from.Small size compression load cell FC10C is featured with only 10mm outer diameter and 6mm total height which makes it extremely suitable for compression force measurement applications with limited mounting space.Typical applications for transducer FC10C are such as clamping force measuremen, force overload protection, load distribution analysis, pressing die force measurement, auto equipment, assembly line and so on. Miniature Force Sensor FC10C can also be modified or customized as per client's request.
subminiature button load cell 5kg 10kg 20kg 50kg

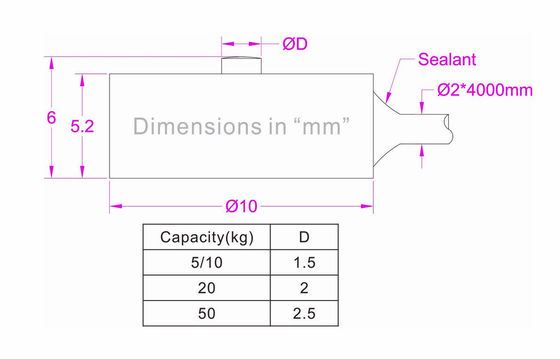

Dimensions(in "mm")
subminiature compression transducer 500N 200N 100N 50N
Specifications

Capacity

5kg / 50N / 11lb

10kg / 100N / 22 lb

20kg / 200N / 44lb

50kg / 500N / 110lb

Rated output 1.0mV/V
Excitation 3-10V
Zero balance ±0.05mV/V
Nonlinearity ±1% R.O.
Hysteresis ±1% R.O.
Nonrepeatability ±0.5% R.O.
Creep(3min) ±0.5% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.05% R.O./oC
Temperature shift span ±0.05% R.O./oC
Input resistance 900±100 ohms
Output resistance 900±100 ohms
Insulation resistance >2000M ohms
Ingress protection IP65
Material of element Stainless steel
Cable Ø2*4000mm 4-core shielded
Wiring code

Red--Excitation+    Black--Excitation-

Green--Signal+    White--Signal-



Load cell output: = (Power supply * Rated output) * Load / Capacity
Rated output is normally within 1mV/V~3mV/V.
Power supply is normally within 3-15V.
Load / Capacity is within 0-1.
So the load cell output signal is normally within 0-45mV(-45mV...+45mV for bidirectional load cell).
Example one: FC10C-20kg with 1.0mV/V sensitivity powered by 3.3V DC,the output range is 0~3.3mV.
Example two: FC10C-10kg with 1.0mV/V sensitivity powered by 5V DC,the output range is 0~5mV.

Load cell + Signal amplifier:
Load cell normally outputs -30mV...+30mV which sometimes can hardly be processed directly,so signal conditioner is introduced to convert mV signal into 0-5V/0-10V/4-20mA for easy signal processing.
Example: Button Load Cell FC10C-10kg working with 0-10V amplifier,the load-output relationship will be 0-10kg load VS 0-10V output, when you get 1V output,it means the current load is 1kg,when you get 5V output,it means the current load is 5kg, and so on.

Micro Button Type Load Cell 500N 200N 100N 50N Subminiature Compression Sensor
subminiature compression force sensor 50N 100N 200N 500N
