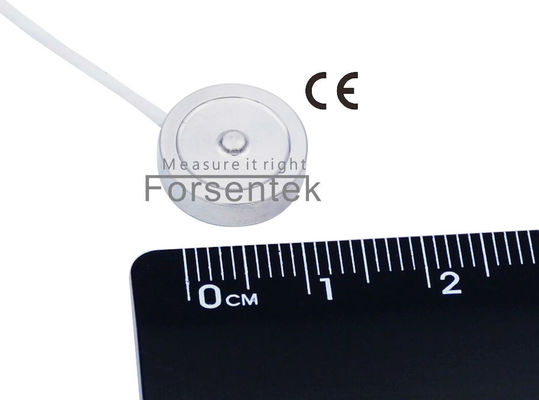

Miniature Button Type Force Transducer 1kN 500N 200N 100N 50N Compression Sensor

Miniature Button Type Force Transducer 1kN 500N 200N 100N 50N Compression Sensor

Miniature Button Type Force Transducer 1kN 500N 200N 100N 50N Compression Sensor
Miniature Button Type Force Transducer 1kN 500N 200N 100N 50N Compression Sensor Miniature Button Type Force Transducer 1kN 500N 200N 100N 50N Compression Sensor Miniature Button Type Force Transducer 1kN 500N 200N 100N 50N Compression Sensor Miniature Button Type Force Transducer 1kN 500N 200N 100N 50N Compression Sensor

Large Image :  Miniature Button Type Force Transducer 1kN 500N 200N 100N 50N Compression Sensor Get Best Price

Product Details:
Place of Origin: China
Brand Name: Forsentek
Certification: CE
Model Number: FCCK
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: Carton
Delivery Time: 3~20 working days
Payment Terms: T/T,Western Union or Paypal
Supply Ability: 1975pcs/month
Detailed Product Description
Usage: Compression Force Measurement Type: Miniature Compression Sensor
Output: Analog Capacity: 1kN 500N 200N 100N 50N
Material: Stainless Steel Feature: Low Height
Diameter: 12.7mm

Miniature Button Type Force Transducer 1kN 500N 200N 100N 50N Compression Sensor

Ultra Thin Miniature Compression Type Button Load Cell Force Sensor FCCK is made of stainless steel based on strain gauge technology, very compact size with 12.7mm outer diameter and 3.95mm height which makes miniature force transducer FCCK suitable for compression force measurement applications with limited mounting space.Low Profile Compression Load Cell FCCK offers 0-1000N / 0-500N / 0-200N / 0-100N / 0-50N five rated measuring ranges to choose from. Transducer FCCK utilizes 1000 ohms bridge resistance for lower heat emission and better stability, you may find Subminiature Load Cell FCCK suitable for applications such as clamping force measurement, force overload protection, load distribution measurement, pressing die force measurement, auto equipment, medical divices, assembly line, and so on. Custom made service is available for similar structures with different capacities.

low profile button load cell 100kg 50kg 20kg 10kg 5kg
Dimensions(unit in "mm")
ultra thin compression load cell 100kg 50kg 20kg 10kg 5kg
Specifications

Capacity

50N / 5kg / 11 lb
100N / 10kg / 22lb
200N / 20kg / 44 lb
500N / 50kg / 110 lb
1000N / 100kg / 220lb

Rated output 1.5mV/V
Excitation 3-12V
Zero balance ±0.1mV/V
Nonlinearity ±2% R.O.
Hysteresis ±2% R.O.
Nonrepeatability ±0.5% R.O.
Creep(3min) ±0.5% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.05% R.O./oC
Temperature shift span ±0.05% R.O./oC
Input resistance 1000±100 ohms
Output resistance 1000±100 ohms
Insulation resistance >2000M ohms
Ingress protection IP65
Material of element Stainless steel
Cable Ø1.2*3000mm 4-conductor
Wiring code Red--Exc+ Black--Exc- Green--Sig+ White--Sig-



Miniature Button Type Load Cell 1kN 500N 200N 100N 50N Compression Force Sensor

subminiature button load cell 5kg 10kg 20kg 50kg 100kg
Brief instruction of Rated output(or Sensitivity):
Definition: The signal produced by load cell(or force transducer) when rated load is applied, expressed in terms of mV/V. The rated output indicates the output signal range of a sensor.
Sensor output = (Power supply * Rated output) * Load / Capacity
Rated output is normally within 1mV/V~3mV/V.
Power supply is normally within 3-15V.
Load / Capacity is within 0-1.
So the load cell output signal is normally within 0-45mV(-45mV...+45mV for bidirectional load cell).
Example one: FCCK-50N with 1.5mV/V power by 5V DC,the output range is 0~7.5mV proportional to the applied load.
Example two: FCCK-100N with 1.6mV/V power by 10V DC,the output range is 0~16mV proportional to the applied load.

The mV output from the loadcell sometimes cannot be recognized by signal processing units directly,so signal conditioner is introduced to convert mV signal into 0-5V/0-10V/4-20mA for easy signal processing.
Example: Button Load Cell FCCK-500N working with amplifier FSC(0-5V)-24V,the force-voltage relationship will be 0-500N force VS 0-5V output.
