| Usage: | Compression Force Measurement | Type: | Small Button Load Cell |
|---|---|---|---|
| Output: | Analog Sensor | Capacity: | 0-1.12klb(Selectable) |
| Diameter: | 20mm |
Button Load Cell 1.12klb 450lb 220lb 110lb 45lb 10lb 5lb Compression Force Sensor

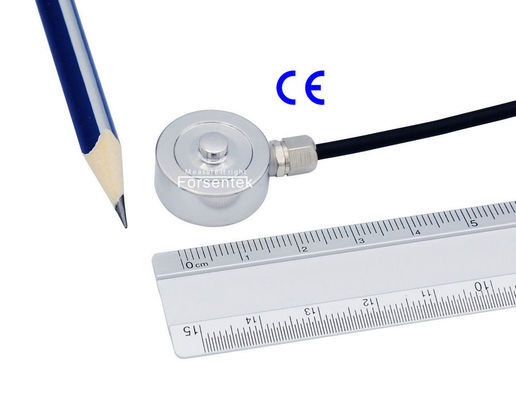

Miniature Compression Type Button Load Cell FCLB is made of stainless steel based on strain gauge technology which offers 0-11lb / 0-22lb / 0-45lb / 0-110lb / 0-220lb / 0-450lb / 0-1120lb seven rated measuring ranges to choose from,compact design makes button type load cell FCLB suitable for compression force measurement applications with limited mounting space. Each sensor comes with a 4-meter-long shielded cable, 4xM2.5 threaded holes located on the bottom make it easy to mount force sensor FCLB to a flat platform,you may find Miniature Load Cell FCLB suitable for applications such as load distribution analysis, mold pressure measurement, force overload protection, clamping force measurement, assembly force monitoring, hydraulics force control and so on.
Dimensions(unit in "mm")
Specifications
| Capacity |
50N / 5kg / 11lb 100N / 10kg / 22 lb 200N / 20kg / 45lb 500N / 50kg / 112lbf 1kN / 100kg / 224 lbf 2kN / 200kg / 450 lb 5kN / 500kg / 1124 lbf |
| Rated output | 1.5mV/V |
| Excitation | 3-12V |
| Zero balance | ±0.1mV/V |
| Nonlinearity | ±0.5% of capacity |
| Hysteresis | ±0.5% of capacity |
| Nonrepeatability | ±0.2% of capacity |
| Creep(3min) | ±0.1% of capacity |
| Safe overload | 150% of capacity |
| Ultimate overload | 200% of capacity |
| Compensated temperature | -10...+40oC |
| Operating temperature | -20...+60oC |
| Temperature shift zero | ±0.05% R.O./oC |
| Temperature shift span | ±0.05% R.O./oC |
| Input resistance | 1000±100 ohms |
| Output resistance | 1000±100 ohms |
| Insulation resistance | >5000M ohms |
| Ingress protection | IP65 |
| Material of element | Stainless steel |
| Cable | Ø3*3000mm 4-core shielded cable |
| Wiring code |
Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal- |
A Load Cell is a transducer that converts force acting on it into electronic signal which is proportional to the applied force.The acting force causes deformation of the measuring element,the bonded strain gage deforms accordingly which will cause the resistance change of the wheatstone bridge,under constant power supply,the output signal between Sig+ and Sig- will change proportionally,thus the force can be measured by measuring the output signal from the load cell. Miniature Button Load Cell FCLB is designed to measure force in compression direction,outputs millivolt signal within 0~20mV, and signal amplification may be required for most applications, a load cell signal conditioner can be used to convert mV signal into -5-5V, 0-10V or 4-20mA output which is proportional to applied force.Taking FCLB-1kN working with amplifier FSC(0-10V)-24V for example, the load-voltage relationship will be 0-1000N compression force VS 0-10V output, the amplified output then can be easily processed by PLCs and data acquisition software. The force can also be displayed through force indicator,force meter FPT is integrated with high accuracy/low noise 24 bit Sigma-Delta ADC,sampling speed up to 960Hz makes it suitable for both static and dynamic measurement;FPT also supports Modbus RTU protocol with RS485 or RS232 communication port,amplified signal 0-5V,0-10V,0-20mV or 4-20mA is also achievable from FPT.
Button Load Cell 1.12klb 450lb 220lb 110lb 45lb 10lb 5lb Compression Force Transducer
