High Range Flange Load Cell 300kN 500kN 1000kN 2000kN 3000kN 5000kN

High Range Flange Load Cell 300kN 500kN 1000kN 2000kN 3000kN 5000kN

High Range Flange Load Cell 300kN 500kN 1000kN 2000kN 3000kN 5000kN
High Range Flange Load Cell 300kN 500kN 1000kN 2000kN 3000kN 5000kN High Range Flange Load Cell 300kN 500kN 1000kN 2000kN 3000kN 5000kN High Range Flange Load Cell 300kN 500kN 1000kN 2000kN 3000kN 5000kN High Range Flange Load Cell 300kN 500kN 1000kN 2000kN 3000kN 5000kN

Large Image :  High Range Flange Load Cell 300kN 500kN 1000kN 2000kN 3000kN 5000kN Get Best Price

Product Details:
Place of Origin: China
Brand Name: Forsentek
Model Number: FCRF
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: Carton
Delivery Time: 3~25 working days
Payment Terms: T/T,Western Union or Paypal
Supply Ability: 2980pcs/month
Detailed Product Description
Usage: Force Measurement Type: Column Flange Load Cell
Output: Analog Capacity: 0-5000kN(Selectable)
Mounting: Flange To Flange

High Range Flange Load Cell 300kN 500kN 1000kN 2000kN 3000kN 5000kN

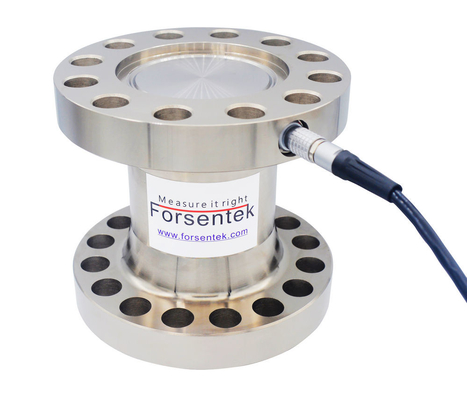

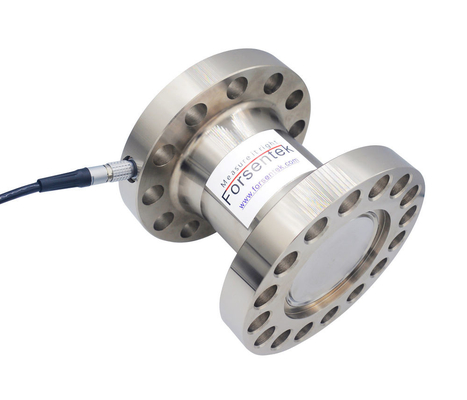

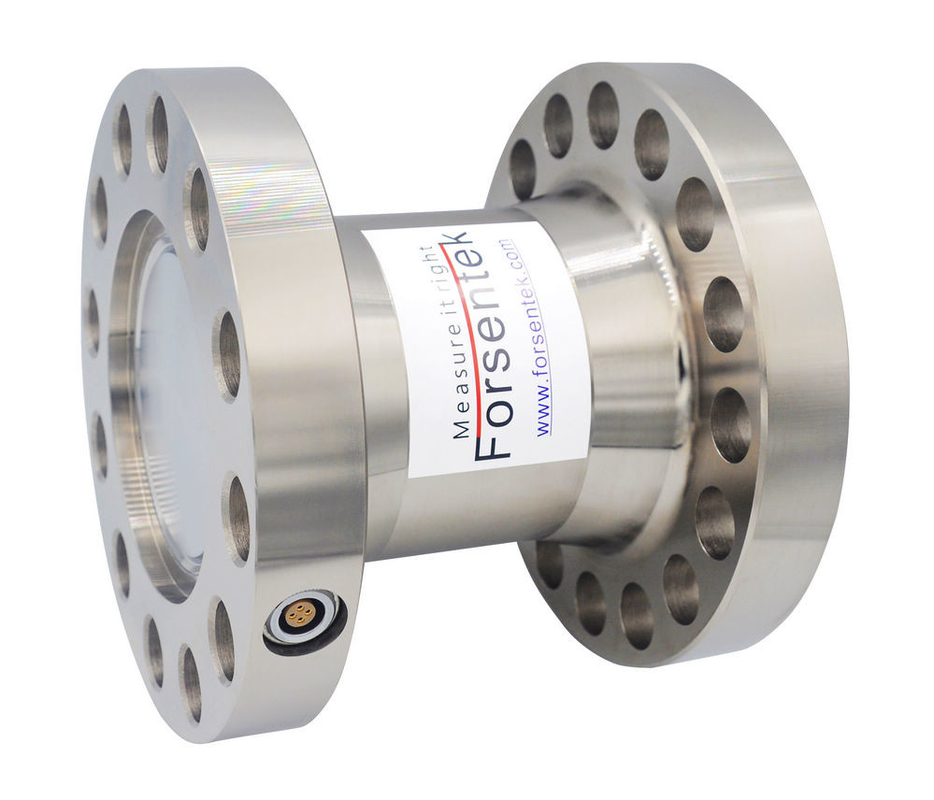

High Capacity Flange Mounted Column Load Cell FCRF is made of alloy steel based on strain gauge technology adopting a column design that has a flange-to-flange mount for easy installation. High range Compression Force Sensor FCRF offers 0-300kN / 0-500kN / 0-600kN / 0-1000kN / 0-1500kN / 0-2000kN / 0-2500KN / 0-3000kN / 0-4000kN / 0-5000kN ten rated measuring ranges to choose from. You may find Compression Force Transducer FCRF applicable for pile load test, bridge load monitoring, injection molding machines, structure testing, rolling mills and so on.

column load cell 5000KN 3000KN 2000KN 1000KN 500KN

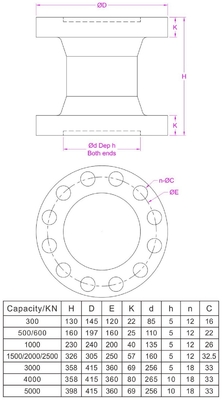

Dimensions(Unit in "mm")

HIGH CAPACITY LOAD CELL 500kN 1000kN 2000kN 3000kN 5000kN

Specifications

Capacity

300kN / 30 ton

500kN / 50 ton

600kN / 60 ton

1000kN / 100 ton

1500kN / 150 ton

2000kN / 200 ton

2500kN / 250 ton

3000kN / 300 ton

4000kN / 400 ton

5000kN / 500 ton

Rated output 2.0 mV/V
Excitation 3-15V
Zero balance ±0.05mV/V
Nonlinearity

±0.3% R.O.

(>600kN ±0.5% of R.O.)

Hysteresis

±0.3% R.O.

(>600kN ±0.5% of R.O.)

Nonrepeatability

±0.1% R.O.

(>600kN ±0.2% of R.O.)

Creep(3min) ±0.1% R.O.
Safe overload 120% F.S.
Ultimate overload 150% F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.02% R.O./oC
Temperature shift span ±0.02% R.O./oC
Input resistance 780±50 ohms
Output resistance 750±50 ohms
Insulation resistance >5000M ohms
Ingress protection IP66
Material of element Alloy steel
Cable Ø5*5000mm 4-core shielded
Wiring code

Red--Excitation+ Black--Excitation-

Green--Signal+ White--Signal-



A Force Sensor is a transducer that converts mechanical load into mV signal proportional to the applied force.The acting force causes deformation of the measuring element,the bonded strain gage deforms accordingly which will cause the resistance change of the wheatstone bridge,under constant power supply, the output signal between Sig+ and Sig- will change proportionally,thus the load/force can be measured by measuring the output signal from the transducer which is normaly within -30mV...+30mV.A signal amplifier can be used to convert the mV signal into 0-5V / 0-10V / 4-20mA for further signal processing.

High Capacity Flange Mount Load Cell 300kN 500kN 1000kN 2000kN 3000kN 5000kN

compression force meter 5000KN 3000KN 2000KN 1000KN 500KN 300KN

Click here to download datasheet
