Jr S Beam Load Cell 10 lb 20 lb 30lb 50 lb 100 lb Miniature Force Transducer

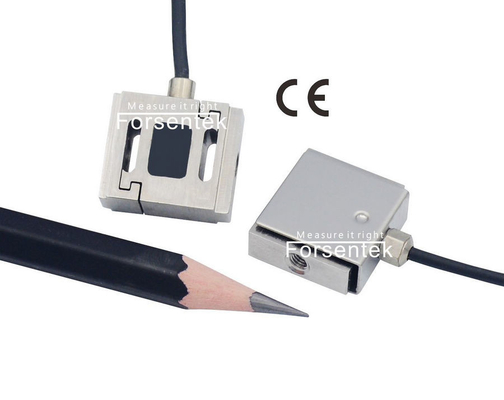

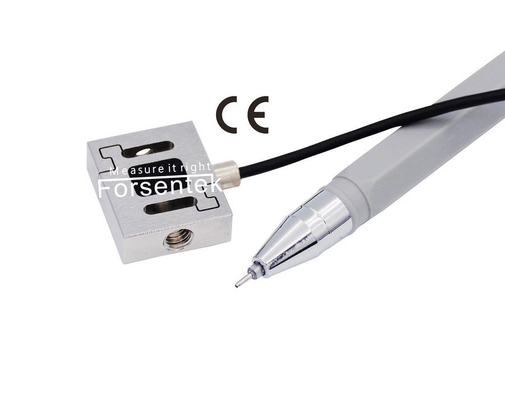

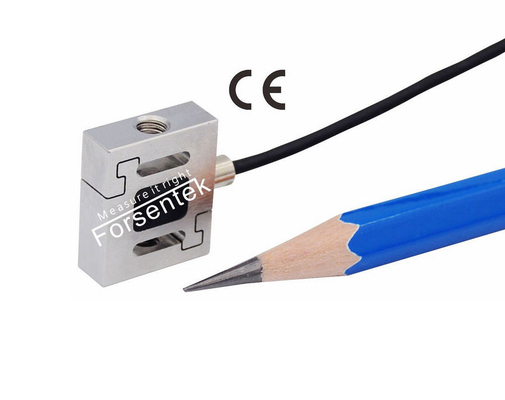

Miniature Tension Compression Force Sensor FSSM offers a compact design for a variety of applications. the S Beam Load Cell series provides accuracy, compact design features, offering 2 lb / 5lbf / 10 lb / 20lb / 45 lb / 67 lb / 100lbf / 200 lb eight rated capacities to choose from.The Miniature S-type Load Cell FSSM utilizes metal foil strain gauge technology to deliver 2.0mV/V output with maximum 0.1% non-linearity,the compact design enables the FSSM to be easily embedded into machinery or test equipment – ideal for packaging machinery, assembly machinery or end-of-line test equipment.The sensor features M3/M4 threaded holes on two sides for the mounting of attachments or implements, this micro load cell force sensor can be used for both tension and compression force measurement in applications with limited mounting space. You may find jr S beam load cell FSSM interchangeable with FUTEK load cell LSB200,Mark Miniature Force Sensors Series R04,flintec s-beam force sensor ISA,flintec force transducer ISB,etc..Besides the standard dimensions and capacities,Forsentek can also provide custom made service as client's request.

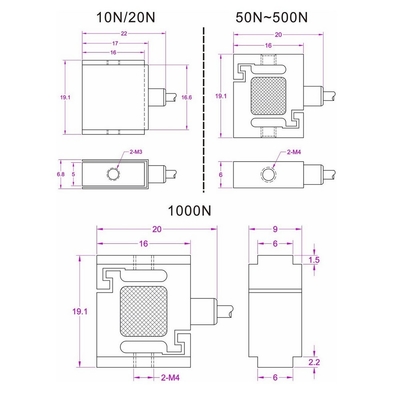

Specifications
| Capacity | 10N / 1kg / 2.2lb 20N / 2kg / 4.4 lbf 50N / 5kg / 11.2 lb 100N / 10kg / 22.4 lbf 200N / 20kg / 45 lb 300N / 30kg / 67 lbf 500N / 50kg / 112 lb 1000N / 100kg / 224 lbf |
| Rated output | 2.0mV/V |
| Excitation | 3-12V |
| Zero balance | ±0.05mV/V |
| Nonlinearity | ±0.1% R.O. |
| Hysteresis | ±0.1% R.O. |
| Nonrepeatability | ±0.05% R.O. |
| Creep(5min) | ±0.1% R.O. |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Compensated temperature | -10...+40oC |
| Operating temperature | -20...+60oC |
| Temperature shift zero | ±0.03% R.O./oC |
| Temperature shift span | ±0.02% R.O./oC |
| Input resistance | 380±30 ohms |
| Output resistance | 350±5 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP62 |
| Material of element | Stainless steel |
| Cable | Ø2*4000mm 4-core shielded cable |
| Wiring code |
Compression@ Green--Signal+ White--Signal- |
A force sensor is a transducer that converts force acting on it into electronic signal which is proportional to the applied force.The acting force causes deformation of the measuring element,the bonded strain gage deforms accordingly which will cause the resistance change of the wheatstone bridge,under constant power supply,the output signal between Sig+ and Sig- will change proportionally,thus the force can be measured by measuring the output signal from the load cell. Micro Load Cell FSSM is designed to measure force in both tension and compression direction,outputs millivolt signal ranging -30~30mV, and signal amplification may be required for most applications, a load cell signal conditioner can be used to deliver -5-5V, 0-10V or 4-20mA output proportional to applied force.The amplified signal then can be easily processed by PLCs and data acquisition software.The force can be displayed through force indicator, force meter FPT is integrated with high accuracy/low noise 24 bit Sigma-Delta ADC,sampling speed up to 960Hz makes it suitable for both static and dynamic measurement; FPT also supports Modbus RTU protocol with RS485 or RS232 communication port,amplified signal 0-5V,0-10V,0-20mV or 4-20mA is also achievable from FPT.
Miniature Load Cell 10lb 20lbf 30 lb 50 lb 100 lb Tension Compression Force Measurement
