| Usage: | Force Measurement | Type: | Flange Cylinder Load Cell |
|---|---|---|---|
| Output: | Analog Sensor | Capacity: | 20kN 10kN 5kN 2kN 1kN 500N 200N |
| Force Measurement Direction: | Tension And Compression | Mounting: | Flange-to-Flange |
Flange-to-Flange Load Cell 2000kg 1000kg 500kg 200kg 100kg 50kg 20kg

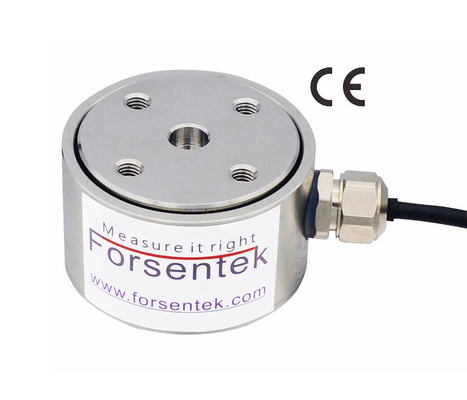

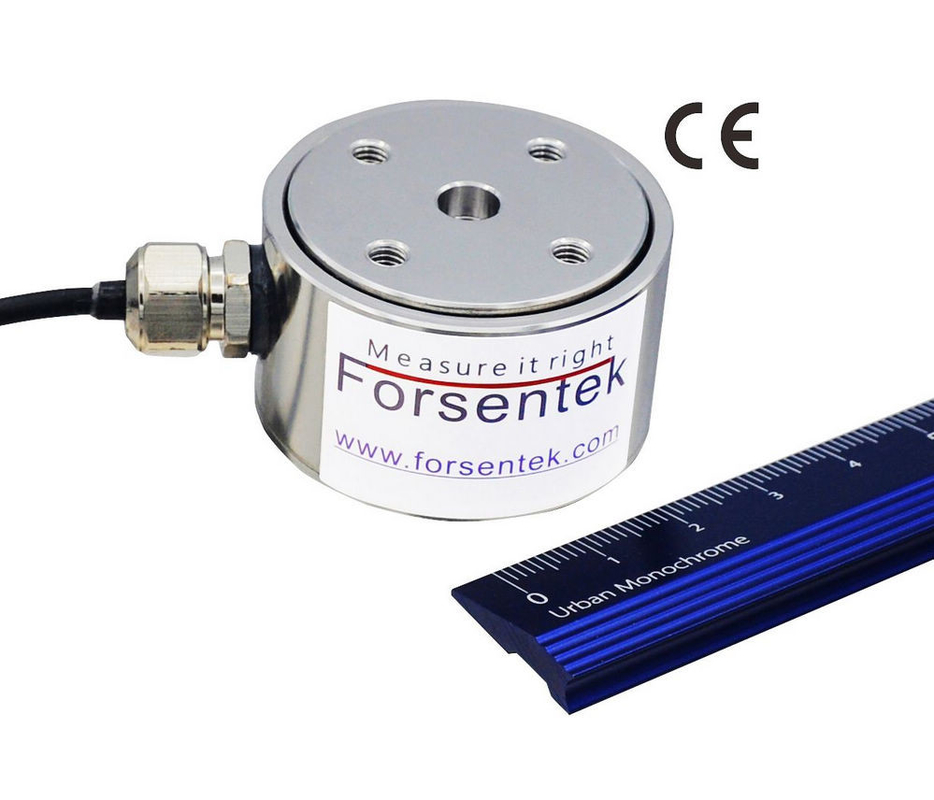

Flange Mounted Tension Compression Load Cell FFA is made of stainless steel utilizing strain gauge technology to deliver maximum 0.1% non-linearity of full scale.Tension Compression Force Sensor FFA offers 0-20kg / 0-50kg / 0-100kg / 0-200kg / 0-500kg / 0-1000kg / 0-2000kg seven rated measuring ranges to choose from, transducer FFA can be used for both tension and compression force measurement. Stainless steel construction, flange design, compact size, bidirectional force measurement, high accuracy, Flange Type Load Cell FFA offers a perfect force measuring solution for applications such as wire tension control, force distribution analysis, automated control, cylinder thrust measurement, assembly force monitoring, spring testing, ultrasonic welding clamp force control, hand press force verification,and so on. In addition to the standard specifications, Forsentek is also capable of and willing to provide custom design service to meet requirements of different applications.

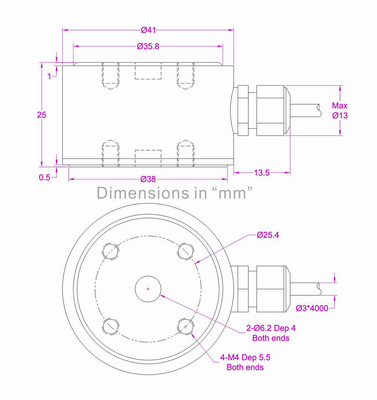

Dimensions(Unit in "mm")
| Ordering code | Measurement Range | Force direction |
| FFA-200N | 0-200N / 0-20kgf | Tension/compression |
| FFA-500N | 0-500N / 0-50kgf | |
| FFA-1kN | 0-1000N / 0-100kgf | |
| FFA-2kN | 0-2000N / 0-200kgf | |
| FFA-5kN | 0-5000N / 0-500kgf | |
| FFA-10kN | 0-10kN / 0-1000kg | |
| FFA-20kN | 0-20kN / 0-2000kg |
Specifications
| Capacity |
200N / 20kg / 45 lb 2kN / 200kg / 450lb 20kN / 2000kg / 4.5klb |
| Rated output | 2.0 mV/V |
| Excitation | 3-15V |
| Zero balance | ±0.05mV/V |
| Nonlinearity | ±0.1% R.O. |
| Hysteresis | ±0.1% R.O. |
| Nonrepeatability | ±0.05% R.O. |
| Creep(5min) | ±0.05% R.O. |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Compensated temperature | -10...+40oC |
| Operating temperature | -20...+60oC |
| Temperature shift zero | ±0.02% R.O./oC |
| Temperature shift span | ±0.02% R.O./oC |
| Input resistance | 400±50 ohms |
| Output resistance | 400±10 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP62 |
| Material of element | Stainless steel |
| Cable | Ø3*4000mm 4-core shielded |
| Wiring code |
Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal- |

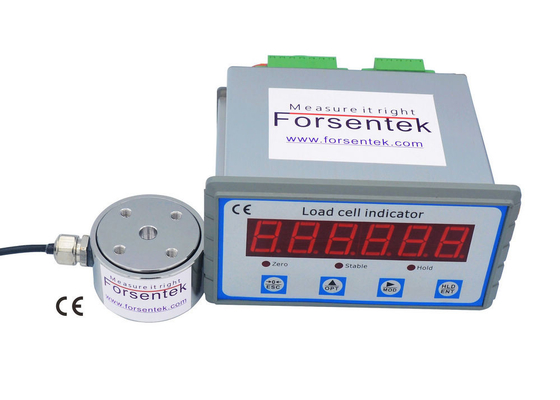

The output signal of force sensor FFA is normally within -30mV...+30mV. A load cell amplifier can be used to convert mV signal into -5~5V, 0-10V or 4-20mA output. Example: Flange Load Cell FFA-10kN working with amplifier FSC(-10-10V)-24V, the Force-Voltage relationship will be 0-10kN compression load VS 0-10V output, 0-10kN tension load VS 0-(-10V) output, 1V output corresponds to 1000N compression force, -5V output corresponds to 5000N tension force, and so on.
Flange Mounted Load Cell 2000kg 1000kg 500kg 200kg 100kg 50kg 20kg
