Flange-to-Flange Force Transducer 60kN 50kN 40kN 30kN 20kN 10kN 5kN 3kN

Good quality 3 axis force sensor for sales
Good quality 3 axis force sensor for sales
I'm Online Chat Now

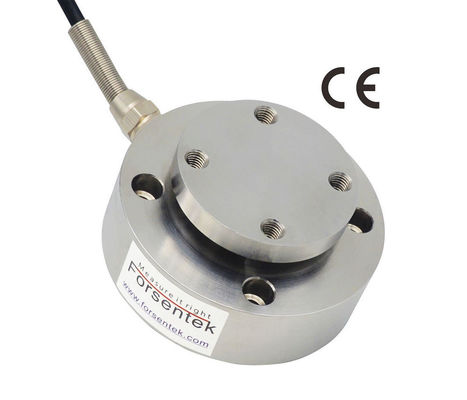

Flange-to-Flange Force Transducer 60kN 50kN 40kN 30kN 20kN 10kN 5kN 3kN

China Flange-to-Flange Force Transducer 60kN 50kN 40kN 30kN 20kN 10kN 5kN 3kN supplier
Flange-to-Flange Force Transducer 60kN 50kN 40kN 30kN 20kN 10kN 5kN 3kN supplier Flange-to-Flange Force Transducer 60kN 50kN 40kN 30kN 20kN 10kN 5kN 3kN supplier Flange-to-Flange Force Transducer 60kN 50kN 40kN 30kN 20kN 10kN 5kN 3kN supplier Flange-to-Flange Force Transducer 60kN 50kN 40kN 30kN 20kN 10kN 5kN 3kN supplier

Large Image :  Flange-to-Flange Force Transducer 60kN 50kN 40kN 30kN 20kN 10kN 5kN 3kN

Product Details:

Place of Origin: China
Brand Name: Forsentek
Certification: CE
Model Number: FFE

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Packaging Details: Carton
Delivery Time: 3~25 working days
Payment Terms: T/T,Western Union or Paypal
Supply Ability: 2260pcs/month
Contact Now
Detailed Product Description
Usage: Force Measurement Type: Flange Mounted Load Cell
Output: Analog Sensor Capacity: 0-60kN(Selectable)
Force Measurement Direction: Tension And Compression Mounting: Flange-to-Flange

Flange-to-Flange Force Transducer 60kN 50kN 40kN 30kN 20kN 10kN 5kN 3kN 2kN

Flange Type Tension And Compression Load Cell FFE is made of stainless steel utilizing strain gauge technology to deliver maximum 0.3% non-linearity of full scale. Tension Compression Force Sensor FFE offers 0-2kN / 0-3kN / 0-5kN / 0-10kN / 0-20kN / 0-30kN / 0-40kN / 0-50kN / 0-60knine rated measuring ranges to choose from, Flange Load Cell FFE can be used for both tension and compression force measurement. Stainless steel construction, flange design, compact size, bidirectional force measurement, Flange Force Transducer FFE offers a perfect force measuring solution for applications such as wire tension control, force distribution analysis, automated control, cylinder thrust measurement, assembly force monitoring, spring testing, ultrasonic welding clamp force control, hand press force verification,and so on. In addition to the standard specifications, Forsentek is also capable of and willing to provide custom made service to meet requirements of different applications.

flange to flange force sensor 50kN 30kN 20kN 10kN 5kN

Dimensions(Unit in "mm")

flange type force transducer 3kN 5kN 10kN 20kN 30kN 50kN

Ordering code Measurement Range Force direction
FFE-2kN 0-2000N / 0-200kg Tension/compression
FFE-3kN 0-3000N / 0-300kg
FFE-5kN 0-5000N / 0-500kg
FFE-10kN 0-10kN / 0-1000kg
FFE-20kN 0-20kN / 0-2000kg
FFE-30kN 0-30kN / 0-3000kg
FFE-40kN 0-40kN / 0-4000kg
FFE-50kN 0-50kN / 0-5000kg
FFE-60kN 0-60kN / 0-6000kg

Specifications

Capacity

2kN / 200kg / 440lb
3kN / 300kg / 660lb
5kN / 500kg / 1.1klb

10kN / 1000kg / 2.2klb
20kN / 2000kg / 4.4klb
30kN / 3000kg / 6.6klb

40kN / 4000kg / 8.8klb

50kN / 5000kg / 11klb

60kN / 6000kg / 13.2klb

Rated output 1.5 mV/V
Excitation 3-15V
Zero balance ±0.05mV/V
Nonlinearity ±0.3% R.O.
Hysteresis ±0.3% R.O.
Nonrepeatability ±0.1% R.O.
Creep(5min) ±0.1% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.02% R.O./oC
Temperature shift span ±0.02% R.O./oC
Input resistance 750±100 ohms
Output resistance 702±5 ohms
Insulation resistance >5000M ohms
Ingress protection IP65
Material of element Stainless steel
Cable Ø5*3000mm 4-core shielded
Wiring code

Compression@

Red--Exc+  Black--Exc-

Green--Sig+ White--Sig-



The output signal of model FFE is normally within -25mV...+25mV. A load cell amplifier can be used to convert mV singal into -5~5V, 0-10V or 4-20mA output.

Example: Compression Force Transducer FFE-50kN working with amplifier FSC(0-5V)-24V,the Force-Voltage relationship will be 0-50kN compression load VS 0-5V output, 1V voltage corresponds to 10kN compression load, 3V voltage corresponds to 30kN compression force,and so on.

Flange Type Load Cell 60kN 50kN 40kN 30kN 20kN 10kN 5kN 3kN 2kN Force Sensor

flange type load cell 50kN 30kN 20kN 10kN 5kN
Click here to download datasheet
