Hollow Flange Reaction Torque Sensor 100kg*m 50kgf*m 30kg*m 20kgf-m 10kg-m 5kgf*m

Hollow Flange Reaction Torque Sensor 100kg*m 50kgf*m 30kg*m 20kgf-m 10kg-m 5kgf*m

Hollow Flange Reaction Torque Sensor 100kg*m 50kgf*m 30kg*m 20kgf-m 10kg-m 5kgf*m
Hollow Flange Reaction Torque Sensor 100kg*m 50kgf*m 30kg*m 20kgf-m 10kg-m 5kgf*m Hollow Flange Reaction Torque Sensor 100kg*m 50kgf*m 30kg*m 20kgf-m 10kg-m 5kgf*m Hollow Flange Reaction Torque Sensor 100kg*m 50kgf*m 30kg*m 20kgf-m 10kg-m 5kgf*m Hollow Flange Reaction Torque Sensor 100kg*m 50kgf*m 30kg*m 20kgf-m 10kg-m 5kgf*m

Large Image :  Hollow Flange Reaction Torque Sensor 100kg*m 50kgf*m 30kg*m 20kgf-m 10kg-m 5kgf*m Get Best Price

Product Details:
Place of Origin: China
Brand Name: Forsentek
Certification: CE
Model Number: FTF
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: 1pc/box
Delivery Time: 3~20 working days
Payment Terms: T/T,Western Union or Paypal
Supply Ability: 2650pcs/month
Detailed Product Description
Usage: Torque Measurement Type: Hollow Flange Reaction Torque Transducer
Output: Analog Sensor Capacity: 0-1000N*M(Selectable)
Connection: Flange To Flange

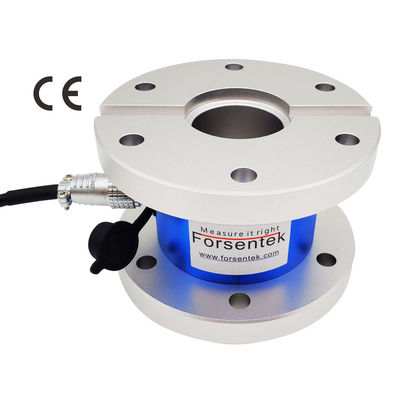

Hollow Flange Reaction Torque Sensor 100kg*m 50kgf*m 30kg*m 20kgf-m 10kg-m 5kgf*m
Hollow Type Flange to Flange Reaction Torque Sensor FTF features a flange-to-flange mounting with a center thru-hole design.Torque cell FTF offers 1kg*m / 2kgf*m / 3kgf-m / 5kg-m / 10kg*m / 20kgf*m / 30kg*m / 50kgf*m / 70kg-m / 100kgf*m ten rated capacities intended for torque measurement in both clockwise and anticlockwise direction,high accuracy with 0.2% non-linearity of the full scale.Torquemeter FTF is capable of meauring torque in both clockwise and anticlockwise direction,applicable for both reaction torque measurement and rotating torque measurement where inserting an extra part between the driving and driven elements is impracticable,the rotating shaft can pass through the through hole located at the center of the torque transducer,which enables measurement of rotating torque without influence of the rotating speed.Typical applications of Flange Torque Transducer FTF are for example torque measurement of pumps,drilling rigs,etc., actuator torque test, stirring torque control and so on.Here are some advantages of measuring rotating torque using hollow torque transducers compared to rotary torque sensors:

  • Less expensive.
  • Tolerating higher axial load.
  • With no limits on the rotating speed.
  • Taking up less space due to their short length.
  • More durable since no rotating parts are involved.
  • More flexible in terms of customization.

hollow type flange to flange reaction torque transducer

Dimensions
Hollow flange reaction torque sensor TFF600
Parameters

Rated capacity

10NM / 7.4 lbf*ft / 1kgf*m
20NM / 14.8 lbf-ft / 2kg*m
30NM / 22 lb*ft / 3kgf-m
50NM / 36.9 lb-ft / 5kg*m
100NM / 73.8 lbf-ft / 10kgf*m
200NM / 147.5 lbf*ft / 20kg*m
300NM / 221 lbf-ft / 30kgf-m
500NM / 368 lb*ft / 50kg*m
700NM / 516 lb-ft / 70kgf*m
1000NM / 737 lbf*ft / 100kg-m

Rated output 1.0 mV/V
Excitation 3-15V
Zero balance ±0.05mV/V
Non-linearity ±0.2% F.S.
Hysteresis ±0.2% F.S.
Non-repeatability ±0.2% F.S.
Creep(10min) ±0.1% F.S.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temp. -10...+40oC
Operating temp. -20...+60oC
Temp. shift zero ±0.02% F.S./oC
Temp. shift span ±0.02% F.S./oC
Input resistance 750±100 ohms
Output resistance 700±10 ohms
Insulation resistance >2000M ohms
Ingress protection IP50
Material of element <500NM Aluminum alloy
>300NM Stainless steel
Cable

Ø5.8*4000mm 6-core shielded cable

(Mating connector included)

Wiring code

Clockwise @

Red--Excitation+ Black--Excitation-

Yellow--Sense+ Blue--Sense-

Green--Signal+ White--Signal-



Hollow Flange Reaction Torque Sensor is a transducer that converts mechanical torque into mV signal proportional to the applied torque.The acting torsion causes deformation of the measuring element,the bonded strain gage deforms accordingly which will cause the resistance change of the wheatstone bridge,under constant power supply, the output signal between Sig+ and Sig- will change proportionally,thus the moment can be measured by measuring the output signal from the transducer.The output range of torque meter FTF is normally within -15mV...+15mV, signal amplification may be required for most applications, a signal conditioner can be used to convert mV signal into -5~5V, 0-10V or 4-20mA output for easy data processing.

reaction torque measurement device
