Usage: Weight Measurement Type: Micro Load Cell
Output: Analog Sensor Capacity: 10kg 5kg 2kg 1kg 0.5kg

Miniature Lightweight Load Cell 1kg 2kg 5kg 10kg Weight Measurement Sensor

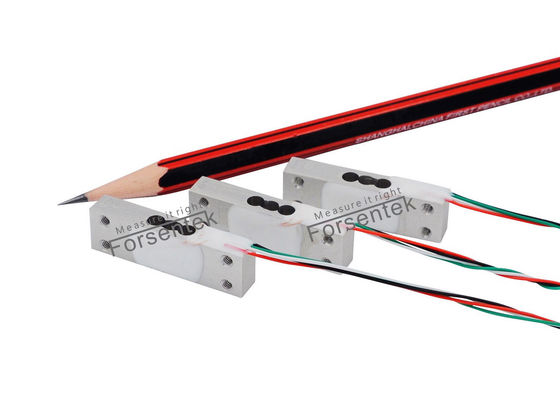

Miniature Light Weight Load Cell Sensor FMZK is strain gauge based to deliver 1.0mV/V output from full wheatstone bridge. Small load sensor FMZC offers 0.5kg / 1kg / 2kg / 3kg / 5kg / 6kg / 10kg seven measuring ranges to choose from,high accuracy with maximum 0.05% non-linearity of the full capacity.The 1000 ohms resistance strain gauges used are more energy-efficient compared to common 350 ohms gauges.The compact size and aluminum construction makes FMZK weighs only about 5.3 grams which makes it suitable for portable weighing devices or other weighing applications where self-weight matters like aircraft or drones.Small size weight sensor FMZK offers a perfect mixture of small size,high accuracy and low cost,which makes loadcell FMZK suitable for weight monitoring in consumer electronics.You may find sensor FMZK applicable for home appliances, force simulators, process control, robotics, automotive and so on. Forsentek is also capable of and willing to provide custom made service if you cannot find suitable weight/load/force measurement transducers from the standard product portfolio.
Lightweight Load Cell
Dimensions
micro load cell lightweight
Specifications

Rated capacity

0.5kg / 1.1 lb / 5N

1kg / 2.2lb / 10N

2kg / 4.4 lb / 20N

3kg / 6.6 lb / 30N

5kg / 11 lb / 50N

10kg / 22 lb / 100N

Rated output 1.0 mV/V
Excitation 3-10 V
Zero balance ±0.1mV/V
Nonlinearity ±0.05% of R.O.
Hysteresis ±0.05% of R.O.
Nonrepeatability ±0.05% of R.O.
Creep(3min) ±0.05% of R.O.
Safe overload 120% of F.S.
Ultimate overload 200% of F.S.
Compensated temperature 0...+40oC
Operating temperature -10...+60oC
Temperature shift zero ±0.03% of R.O./oC
Temperature shift span ±0.02% of R.O./oC
Input resistance 1000±100 ohms
Output resistance 1000±10 ohms
Insulation resistance >2000M ohms
Ingress protection IP62
Material of element Aluminum alloy
Cable 32AWG*170mm(Longer cable available)
Wiring code Red--Excitation+  Black--Excitation-
Green--Signal+  White--Signal-



Small size load cell sensor FMZK is a transducer that converts mechanical force into electrical signal proportional to the applied force or weight.The measured load or force causes deformation of the measuring element(elastic body),the bonded strain gauge deforms accordingly which will cause the impedance variation of the wheatstone bridge,under constant power supply, the output signal changes proportionally, thus the weight or force can be measured by measuring the output signal from the load cell.

Load cell output: = (Power supply * Rated output) * Load / Capacity
Rated output is normally within 1mV/V~3mV/V.
Power supply is normally within 3-15V.
Load / Capacity is within 0-1.
So the load cell output signal is normally within 0-45mV(-45mV...+45mV for bidirectional load cell).
Example one: Light Weight Load Cell FMZK-5kg with 1.0mV/V sensitivity powered by 10V DC,the output range is 0~10mV.
Example two:
Lightweight Load Cell FMZK-10kg with 1.0mV/V sensitivity powered by 3.3V DC,the output range is 0~3.3mV.

Miniature Load Cell Lightweight
