Usage: Torque Measurement Type: Static Torque Transducer
Output: Analog Sensor Capacity: 0-1000Nm(0-8850lbf-in)
Connection: Flange To Flange Structure: Hollow Flanged

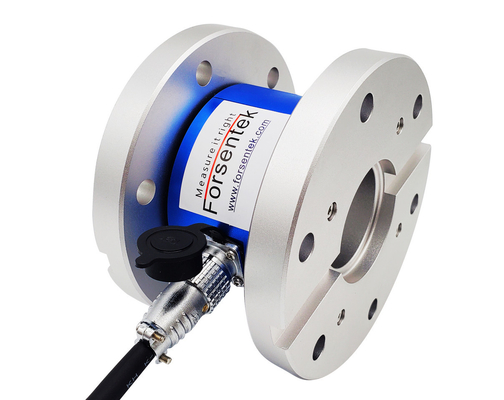

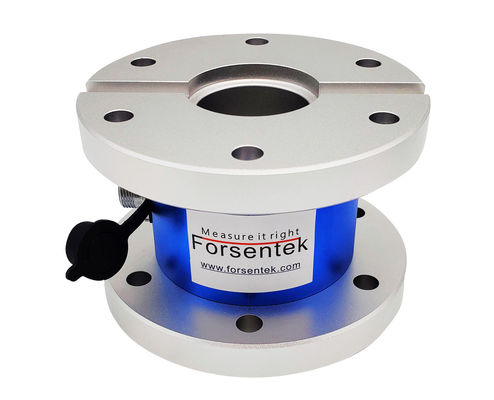

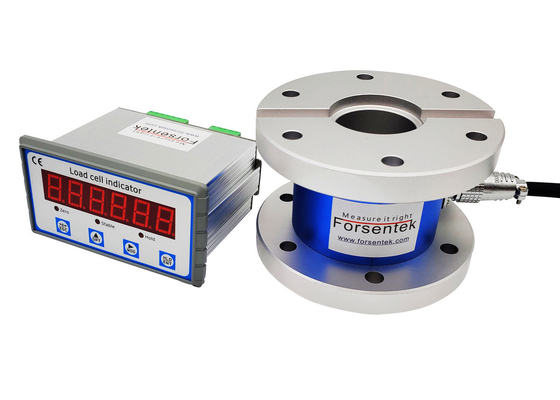

Flange-to-Flange Reaction Torque Sensor 10000 in-lb 5000in-lbf 2000 lb*in 1000lb-in
Hollow Type Flange to Flange Reaction Torque Transducer FTF features a flange-to-flange mounting with a center thru-hole design.Torque cell FTF offers 88lbf-in / 177 lb*in / 265 in-lb / 442 lb*in / 885 lb-in / 1770lbf-in / 2655lb*in / 4425 lb*in / 6195in-lb / 8850 lbf-in ten measuring ranges to choose from,high accuracy with 0.2% non-linearity of the full scale.Torquemeter FTF is capable of meauring torque in both clockwise and anticlockwise direction,applicable for both reaction torque measurement and rotating torque measurement where inserting an extra part between the driving and driven elements is impracticable,the rotating shaft can pass through the through hole located at the center of the torque transducer,which enables measurement of rotating torque without influence of the rotating speed.Typical applications of Reaction Torque Meter FTF are for example torque measurement of pumps,drilling rigs,etc., actuator torque test, stirring torque control and so on.Here are some advantages of measuring rotating torque using hollow torque transducers compared to rotary torque sensors:

  • Less expensive.
  • Tolerating higher axial load.
  • With no limits on the rotating speed.
  • Taking up less space due to their short length.
  • More durable since no rotating parts are involved.
  • More flexible in terms of customization.

Flange-to-Flange Reaction Torque Sensor 10000in-lbf 5000 in-lbf 2000 lb*in 1000 lbf-in

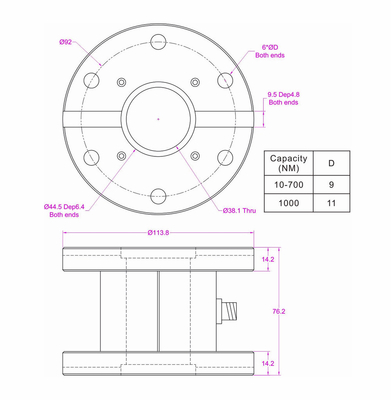

Dimensions
TFF600 torque sensor FSH04020
Specifications

Rated capacity

10N*m / 88 lbf-in
20N-m / 177 lb*in
30N-m / 265 in-lb
50N*m / 442 lb*in
100N*m / 885 lb-in
200N*m / 1770 lbf-in
300N-m / 2655 lb*in
500N*m / 4425 lb*in
700N-m / 6195 in-lb
1000N*m / 8850 lbf-in

Rated output 1.0 mV/V
Excitation 3-15V
Zero balance ±0.05mV/V
Non-linearity ±0.2% F.S.
Hysteresis ±0.2% F.S.
Non-repeatability ±0.2% F.S.
Creep(10min) ±0.1% F.S.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temp. -10...+40oC
Operating temp. -20...+60oC
Temp. shift zero ±0.02% F.S./oC
Temp. shift span ±0.02% F.S./oC
Input resistance 750±100 ohms
Output resistance 700±10 ohms
Insulation resistance >2000M ohms
Ingress protection IP50
Material of element <500NM Aluminum alloy
>300NM Stainless steel
Cable Ø5.8*4000mm 6-core shielded cable
Wiring code

Red--Excitation+ Black--Excitation-

Yellow--Sense+ Blue--Sense-

Green--Signal+ White--Signal-



Hollow flange reaction torque sensor FTF is a transducer that converts mechanical torque into mV signal proportional to the applied torque.The acting torsion causes deformation of the measuring element,the bonded strain gage deforms accordingly which will cause the resistance change of the wheatstone bridge,under constant power supply, the output signal between Sig+ and Sig- will change proportionally,thus the moment can be measured by measuring the output signal from the transducer.The output range of FTF is normally within -20mV...+20mV, signal amplification may be required for most applications, a signal conditioner can be used to get -5~5V, 0-10V or 4-20mA output for easy data processing.
