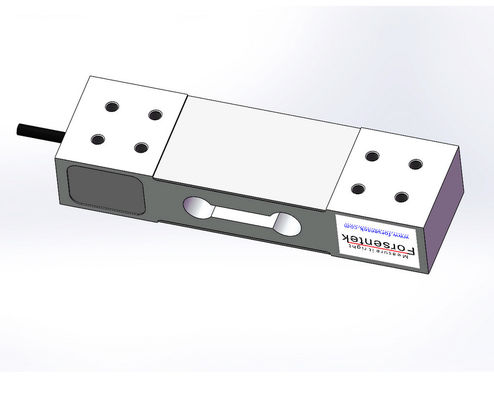

100kg 200kg 300kg 500kg load cell sensor with 0-5V 0-10V 4-20mA output

100kg 200kg 300kg 500kg load cell sensor with 0-5V 0-10V 4-20mA output

100kg 200kg 300kg 500kg load cell sensor with  0-5V 0-10V 4-20mA output
100kg 200kg 300kg 500kg load cell sensor with  0-5V 0-10V 4-20mA output 100kg 200kg 300kg 500kg load cell sensor with  0-5V 0-10V 4-20mA output 100kg 200kg 300kg 500kg load cell sensor with  0-5V 0-10V 4-20mA output 100kg 200kg 300kg 500kg load cell sensor with  0-5V 0-10V 4-20mA output

Large Image :  100kg 200kg 300kg 500kg load cell sensor with 0-5V 0-10V 4-20mA output Get Best Price

Product Details:
Place of Origin: China
Brand Name: Forsentek
Model Number: FAHK
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Packaging Details: Carton
Delivery Time: 25-40 working days
Payment Terms: T/T,Western Union or Paypal
Supply Ability: 5000pcs/month
Detailed Product Description
Type: Anglog Output: 0-5V/0-10V/4-20mA
Capacity: 500kg 300kg 200kg 100kg

100kg 200kg 300kg 500kg load cell sensor with 0-5V 0-10V 4-20mA output

Beam type load cell with built in amplifier to deliver 0-5V / 0-10V / 4-20mA output directly from the weight sensor .Compared to traditional external signal amplifier,load cell with amplifier inside the sensor has many advantages such as: Easier wiring, compact size and lower cost.The rectangular shape and low profile design of the amplifier board makes it compatible with most beam type load cells in the market,if you are looking for off center weighing load cell with amplified signal output,contact us for a customized solution.

weight_sensor_0-5V_output

Dimensions(in "mm")

load_sensor_0-5V_output

Specifications

Capacity

100kg 200kg 300kg 500kg

Rated output 0-5V/0-10V/4-20mA
Excitation 12V/24V DC
Zero balance ±5% R.O.
Nonlinearity ±0.15% R.O.
Hysteresis ±0.15% R.O.
Nonrepeatability ±0.1% R.O.
Creep(3min) ±0.05% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temperature 0...+40oC
Operating temperature -10...+60oC
Temperature shift zero ±0.03% R.O./oC
Temperature shift span ±0.02% R.O./oC
Insulation resistance >2000M ohms
Ingress protection IP65
Material of element Aluminum alloy
Cable Ø5*1000mm
Wiring code

3-wire for voltage output

2-wire for current output



Beam type load cell sensor with 0-5V 0-10V 4-20mA output

weight_sensor_4-20mA_output
