| Keyword: | 4 Channel Load Cell Signal Converter | Input: | 4 Load Cells |
|---|---|---|---|
| Output: | 4 Outputs | Type: | Analog Type |
4 channel load cell amplifier 4-20mA 0-5V for multiple load cells
4-input load cell signal conditioner LC4A can work with all our load cell sensors and torque transducers with mV/V configuration to deliver -5-5V / 0-3.3V / 0-5V / 0-10V / 0-20mA / 4-20mA for further data acquisition. Multi-channel load cell signal conditioner LC4A has 4 inputs and 4 outputs,each channel supports Zero adjustment and Gain adjustment for loadcell calibration.Analog signal amplifier LC4A offers a compact signal processing solution for load measurement applications where multiple load cells are involved.
Specifications
| Function | Turn mV signal into V or mA signal |
| Accuracy | 0.15% |
| Power supply | 24V DC or 12V DC |
| Output signal | -5-5V,-10-10V,0-5V,0-10V,4-20mA,0-20mA |
| Excitation for load cell | 5V DC |
| Applicable sensitivity | 0.6mV/V~3mV/V |
| Working temperature | -10...+60oC |
| Material of housing | Aluminum |
| Ingress protection | IP40 |
Input end & output end of 4-input load cell amplifier LC4A

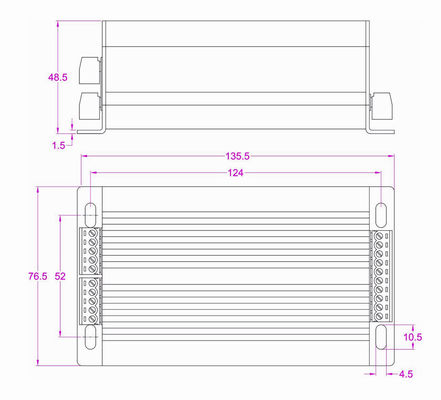

Dimensions(in mm)
