Low profile load cell 50kg 100kg 200kg tension/compression force measurement
Low profile load cell FCB-A utilizes strain gauge technology inteneded for both tension and compression force measurement.Compact design,suitable for force measuring applications where installation height is limited.Low profile tension compression load cell FCB-A offers 500N/1kN/2kN three rated capacities with mV/V output as standard,0-5V or 4-20mA output is available through external amplifier.Different force loading tools can be mounted to the M8*1 threaded hole located on the center of the force sensor for different applications.Force transducer FCB-A is RoHS compliant and CE certified.

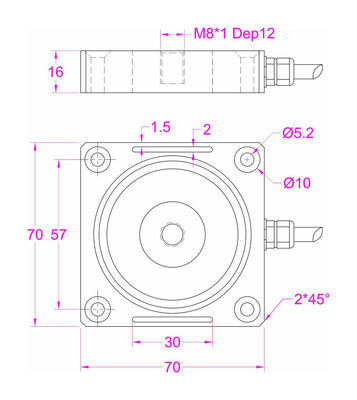

Dimensions(Unit in "mm")
Specifications
| Capacity |
500N / 50kg / 110lb 1000N / 100kg / 220lb 2000N / 200kg / 440lb |
| Rated output | 1.5mV/V |
| Excitation | 3-15V |
| Zero balance | ±0.05mV/V |
| Nonlinearity | ±0.2% R.O. |
| Hysteresis | ±0.2% R.O. |
| Nonrepeatability | ±0.1% R.O. |
| Creep(10min) | ±0.1% R.O. |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Compensated temperature | -10...+40oC |
| Operating temperature | -20...+60oC |
| Temperature shift zero | ±0.05% R.O./10oC |
| Temperature shift span | ±0.05% R.O./10oC |
| Input resistance | 750±30 ohms |
| Output resistance | 700±10 ohms |
| Insulation resistance | >5000M ohms |
| Ingress protection | IP62 |
| Material of element | Aluminum alloy |
| Cable | Ø4*2000mm 4-core shielded |
| Wiring code |
Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal- |
