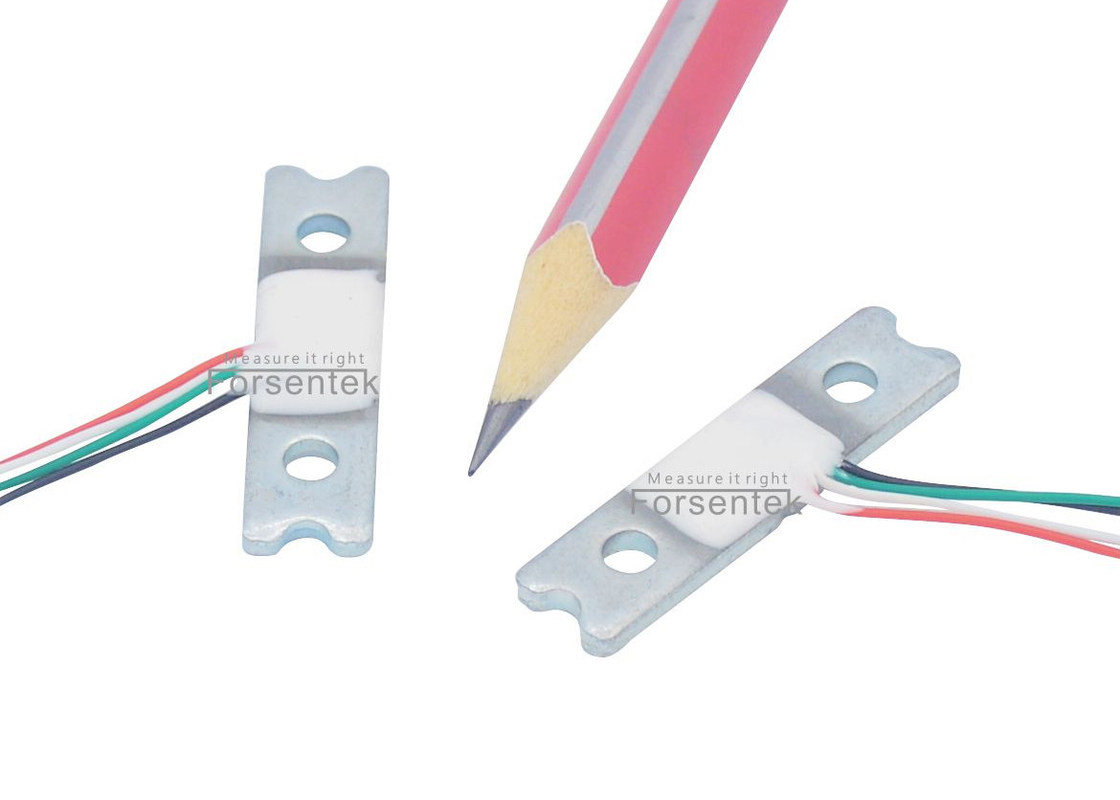

Low profile compact load cell 100N 200N 300N 500N Miniature force transducer
Miniature low profile compact load cell FMZH utilizes strain gauge technology which are bonded on to the alloy steel sensing body.Low profile load cell FMZH is available in 0-10kgf / 0-20kgf / 0-30kgf / 0-50kgf four measuring ranges with maximum 0.2% F.S. non-linearity of the full scale, it offers an accurate & low cost measurement solution for high volume applications, especially suitable for force/load measurement applications where installation space is limited. You may find low profile force transducer FMZH applicable for home appliances, force simulators, process control, robotics, automotive and so on. Other measuring ranges with similar structure can be custom made according to client’s requirements.
Dimensions(in "mm")
Specifications
| Capacity |
100N / 10kgf / 22lbf 200N / 20kgf / 45lb 300N / 30kgf / 67lb 500N / 50kgf / 112lb |
| Rated output | 1.8 mV/V |
| Excitation | 3-15V |
| Zero balance | ±0.3mV/V |
| Nonlinearity | ±0.2% R.O. |
| Hysteresis | ±0.2% R.O. |
| Nonrepeatability | ±0.1% R.O. |
| Creep(3min) | ±0.1% R.O. |
| Safe overload | 120% F.S. |
| Ultimate overload | 150% F.S. |
| Compensated temperature | -10...+40oC |
| Temperature shift zero | ±0.03% R.O./oC |
| Temperature shift span | ±0.03% R.O./oC |
| Input resistance | 1020±50 ohms |
| Output resistance | 1000±20 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP50 |
| Material of element | Alloy steel |
| Cable | AWG32*110mm |
| Wiring code |
Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal- |
