Shaft to shaft rotary torque sensor 5lbf-ft 10lb-ft 20 lb*ft 30lb*ft 50 lbf-ft

Shaft to shaft rotary torque sensor 5lbf-ft 10lb-ft 20 lb*ft 30lb*ft 50 lbf-ft

Shaft to shaft rotary torque sensor 5lbf-ft 10lb-ft 20 lb*ft 30lb*ft 50 lbf-ft
Shaft to shaft rotary torque sensor 5lbf-ft 10lb-ft 20 lb*ft 30lb*ft 50 lbf-ft Shaft to shaft rotary torque sensor 5lbf-ft 10lb-ft 20 lb*ft 30lb*ft 50 lbf-ft Shaft to shaft rotary torque sensor 5lbf-ft 10lb-ft 20 lb*ft 30lb*ft 50 lbf-ft Shaft to shaft rotary torque sensor 5lbf-ft 10lb-ft 20 lb*ft 30lb*ft 50 lbf-ft

Large Image :  Shaft to shaft rotary torque sensor 5lbf-ft 10lb-ft 20 lb*ft 30lb*ft 50 lbf-ft Get Best Price

Product Details:
Place of Origin: China
Brand Name: Forsentek
Model Number: FYTE
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: 1pc/box
Delivery Time: 3~20 working days
Payment Terms: T/T,Western Union or Paypal
Supply Ability: 3000pcs/month
Detailed Product Description
Usage: Rotating Torque Measurement Type: Contactless Torque Sensor
Output: ±5V/±10V/4-20mA Torque Measurement Direction: Clockwise&Anti-clockwise
Capacity: 100NM 50NM 30NM 20NM 10NM 5NM

Shaft to shaft rotary torque sensor 5lbf-ft 10lb-ft 20 lb*ft 30lb*ft 50 lbf-ft

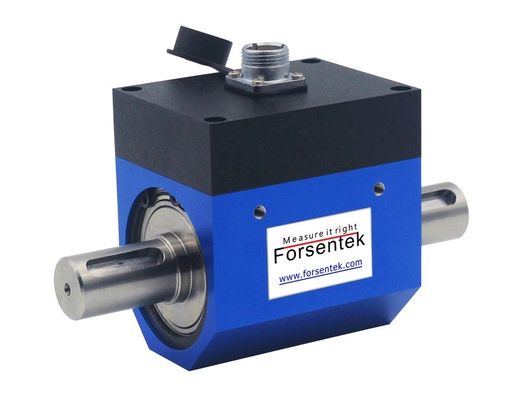

Contactless rotary torque sensor FYTE offers a contactless transmission for bridge supply voltage and measurement transmission which enables continuous operation with low wear out.Non contact rotary torque transducer FYTE offers 5NM / 10NM / 20NM / 30NM / 50NM / 100NM six measuring ranges with maximum 6000RPM to choose from, ±5V /±10V / 4-20mA direct output from the transducer thanks to its built-in amplifier circuit for easy data processing. Shaft to shaft configuration, can be easily installed through couplings, the housing remains still while the shaft rotates during measurement, it is also applicable for torsion measurement with low rotating speed. Typical applications for FYTE are such as motor test benches, tightening torque monitoring, rotating torque measurement for servo motors, pumps, gearbox, engines, agitators,and so on.

shaft-to-shaft rotary torque sensor 5lbf-ft 10lb-ft
Specifications

Capacity

5NM / 44lbf*in / 3.7lb-ft

10NM / 88 lb-in / 7.4 lbf*ft

20NM / 177 lbf-in / 15 lb*ft

30NM / 265lbf-in / 22 lb-ft

50NM / 442 lb*in / 37 lbf-ft

100NM / 885 lb-in / 74lbf-ft

Rotating speed 0-6000RPM
Rated output ±5V / ±10V / 4-20mA
Excitation 24V DC (or 12V DC)
Zero balance ±2% R.O.
Nonlinearity ±0.2% R.O.
Hysteresis ±0.2% R.O.
Nonrepeatability ±0.2% R.O.
Creep(10min) ±0.1% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Operating temp. -10...+60oC
Ingress protection IP50
Material of element Stainless steel
Material of housing Aluminum
Cable Ø6*3000mm(Mating connector provided)



Shaft to shaft rotary torque sensor 5lbf-ft 10lb-ft 20 lb*ft 30lb*ft 50 lbf-ft

shaft type rotary torque sensor 20 lbf-ft 30lb*ft

50lbf-ft rotating torque measurement 20lb-ft

Dimensions

torque measurement 20lbf-ft 10 lb*ft

contactless torque sensor pdf
