Shaft rotating torque meter for motor testing bench motor torque sensor

Shaft rotating torque meter for motor testing bench motor torque sensor

Shaft rotating torque meter for motor testing bench motor torque sensor
Shaft rotating torque meter for motor testing bench motor torque sensor Shaft rotating torque meter for motor testing bench motor torque sensor Shaft rotating torque meter for motor testing bench motor torque sensor Shaft rotating torque meter for motor testing bench motor torque sensor

Large Image :  Shaft rotating torque meter for motor testing bench motor torque sensor Get Best Price

Product Details:
Place of Origin: China
Brand Name: Forsentek
Certification: CE
Model Number: FY01
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: 1pc/box
Delivery Time: 3~20 working days
Payment Terms: T/T,Western Union or Paypal
Supply Ability: 1000pcs/month
Detailed Product Description
Usage: Torque Test/torque Measure Theory: Strain Gauge Torque Sensor
Output: Analog Sensor Torque Measurement Direction: Clockwise&Counterclockwise

Shaft rotating torque meter for motor testing bench motor torque sensor

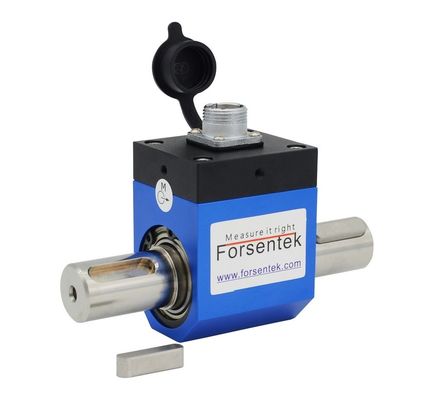

Rotating torque meter FY01 is a transducer that converts a torsional mechanial input into an electrical output signal,torque transducer FY01 is CE certified with 0-10NM / 0-20NM / 0-30NM / 0-50NM / 0-100NM / 0-200NM / 0-300NM / 0-500NM eight measuring ranges to choose from.Built-in wheatstone bridge delivers mV/V output with maximum 0.2% non-linearity of the full scale. Keyed shafts located on both ends of the sensor can be connected to motor and load through couplings.Rotating speed of model FY01 can go up to 4000RPM,it is also suitable for non-rotating and low-speed torque measurement applications.Signal conditioner and torque meter is also available to get the readout and 0-5V/0-10V/4-20mA output.Typical applications for this type of torque transducer are for example servo motor torque measurement, test bench applications, valve torque test, torque measurement for stirring devices, screw driver calibration, twist measurement, actuator test,etc..

rotating_torque_meter
Dimensions
motor_rotating_torque_sensor

Ordering code of rotating torque transducer FY01
Part No. Torque measuring range Torque measurement direction
FY01-10NM 0~10NM Clockwise and anticlockwise
FY01-20NM 0~20NM
FY01-30NM 0~30NM
FY01-50NM 0~50NM
FY01-100NM 0~100NM
FY01-200NM 0~200NM
FY01-300NM 0~300NM
FY01-500NM 0~500NM

Specifications

Capacity

10NM 20NM 30NM 50NM 100NM

200NM 300NM 500NM

Rated output 1.5 mV/V
Excitation 3-15V
Zero balance ±2% R.O.
Nonlinearity ±0.15% R.O.
Hysteresis ±0.15% R.O.
Nonrepeatability ±0.05% R.O.
Creep(5min) ±0.1% R.O.
Safe overload 120% F.S.
Ultimate overload 200% F.S.
Compensated temp. -10...+40oC
Operating temp. -20...+60oC
Temp. shift zero ±0.01% R.O./oC
Temp. shift span ±0.01% R.O./oC
Input resistance 350±30 ohms
Output resistance 350±10 ohms
Insulation resistance >5000M ohms
Ingress protection IP50
Material of element Stainless steel
Cable Ø5.5*3000mm 4-core shielded
Wiring code

Red--Exc+   Green--Exc-

Green--Sig+   White--Sig-



Shaft rotating torque meter for motor testing bench motor torque sensor

motor_torque_sensor

torque_meter_for_motor_testing

rotary torque sensor pdf
