Pancake load cell 300N 500N 1kN 2kN 3kN 5kN 10kN compression force transducer

Pancake load cell 300N 500N 1kN 2kN 3kN 5kN 10kN compression force transducer

Pancake load cell 300N 500N 1kN 2kN 3kN 5kN 10kN compression force transducer
Pancake load cell 300N 500N 1kN 2kN 3kN 5kN 10kN compression force transducer Pancake load cell 300N 500N 1kN 2kN 3kN 5kN 10kN compression force transducer Pancake load cell 300N 500N 1kN 2kN 3kN 5kN 10kN compression force transducer Pancake load cell 300N 500N 1kN 2kN 3kN 5kN 10kN compression force transducer

Large Image :  Pancake load cell 300N 500N 1kN 2kN 3kN 5kN 10kN compression force transducer Get Best Price

Product Details:
Place of Origin: China
Brand Name: Forsentek
Certification: CE
Model Number: FCMA
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: Carton
Delivery Time: 3~25 working days
Payment Terms: T/T,Western Union or Paypal
Supply Ability: 4100pcs/month
Detailed Product Description
Usage: Force Measurement/Weighing Type: Universal Pancake Load Cell
Output: Analog Sensor Material: Alloy Steel
Capacity: 30kg 50kg 100kg 200kg 300kg 500kg 1000kg Threaded Hole: M16

Pancake load cell 300N 500N 1kN 2kN 3kN 5kN 10kN compression force transducer

Pancake load cell FCMA is made of high stiffness alloy steel based on foil strain gauge technology to deliver 2.0mV/V rated output proportional to the applied force.Pancake load cell FCMA offers 30kg / 50kg / 100kg / 200kg / 300kg / 500kg / 1000kg seven different measuring ranges with maximum 0.1% non-linearity of the rated output to choose from intended for both static and dynamic force measurement,low profile load cell FCMA can be used for both tension and compression measurement,low profile structure makes it also suitable for in-line force monitoring. Model FCMA is designed with a M16x1.5 threaded hole running through the center of the transducer which can be used to mount attachments such as load buttons,eye bolts or other adapters for force loading,this makes spoke type load cells very adaptable to various cases,you may find pancake type load cell FCMA applicable for force measurement in injection-molding machines,press machines and material testing equipment,weight measurement for tanks,vessels and hoppers, and so on.

universal_compression_load_cell_1kN_2kN_3kN_5kN

Specifications

Capacity

30kg / 300N / 66 lbf

50kg / 500N / 110lbf

100kg / 1kN / 220lb

200kg / 2kN / 440 lb

300kg / 3kN / 660 lbf

500kg / 5kN / 1.1klb

1000kg / 10kN / 2.2k lbf

Rated output 2.0 mV/V
Excitation 3-15V
Zero balance ±0.05mV/V
Nonlinearity ±0.1% R.O.
Hysteresis ±0.1% R.O.
Nonrepeatability ±0.05% R.O.
Creep(5min) ±0.05% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.05% R.O./10oC
Temperature shift span ±0.05% R.O./10oC
Input resistance 750±50 ohms
Output resistance 700±10 ohms
Insulation resistance >5000M ohms
Ingress protection IP65
Material of element Alloy steel
Cable Ø5*2000mm 4-core shielded
Wiring code

Red--Excitation+ Black--Excitation-

Green--Signal+ White--Signal-

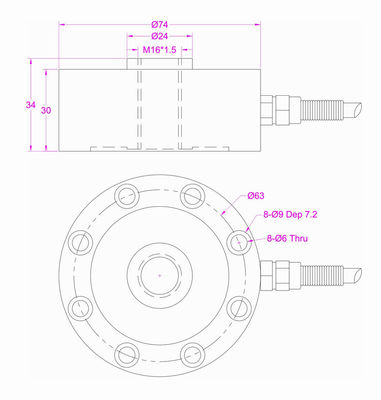

Low profile pancake load cell 300N 500N 1kN 2kN 3kN 5kN 10kN

compression_force_measurement_transducer

Click here to download datasheet
