50lb side mount load cell replacement for FUTEK FSH03978 LSM300
The FS12 Precision Load Cell also known as the Belt Buckle Load Cell offers an impressive lightweight design with an easy side mounting feature making it ideal for OEM applications. Utilized in both Tension and Compression.Compact load cell FS12 is made of aluminum using metal foil strain gauge technology to deliver maximum 0.05% non-linearity,available force ranges are 10N/20N/50N/100N/200N/300N/500N.Parallelogram Load Cell FS12 is offered as an accurate and cost-effective replacement for FUTEK LSM300 series load cells.
Specifications
Capacity | 10N 20N 50N 100N 200N 300N 500N |
Rated output | 1.0 mV/V |
Excitation | 3-12V |
Zero balance | ±0.05mV/V |
Nonlinearity | ±0.05% R.O. |
Hysteresis | ±0.05% R.O. |
Nonrepeatability | ±0.02% R.O. |
Creep(5min) | ±0.03% R.O. |
Safe overload | 150% F.S. |
Ultimate overload | 200% F.S. |
Compensated temperature | -10...+40oC |
Operating temperature | -20...+60oC |
Temperature shift zero | ±0.05% R.O./10oC |
Temperature shift span | ±0.05% R.O./10oC |
Input resistance | 395±20 ohms |
Output resistance | 350±5 ohms |
Insulation resistance | >2000M ohms |
Ingress protection | IP64 |
Material of element | Aluminum alloy |
Cable | AWG28*180mm |
Wiring code | Red--E+ Black--E- Green--S+ White--S- |
Side mount load cell 10N 20N 50N 100N 200N 300N 500N

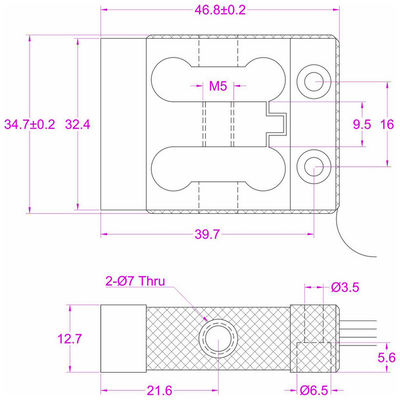

Dimensions(Unit in "mm")
