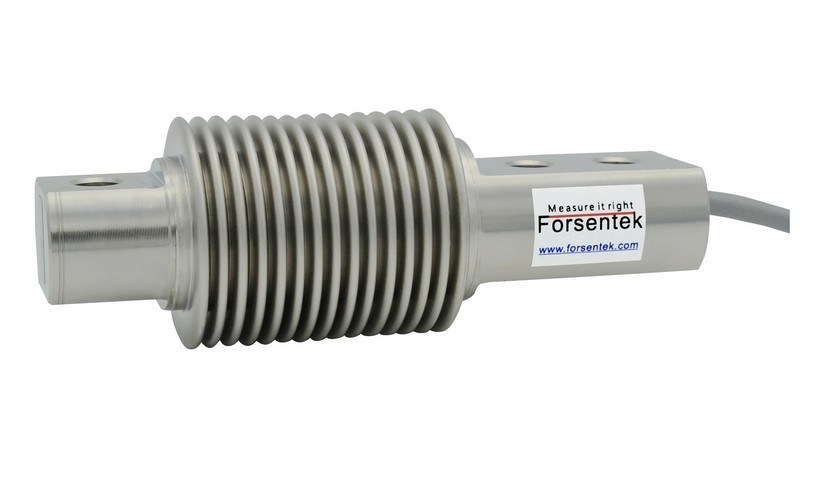

Single-ended revere load cell shbxr SHBxR VPG Revere 9102 load cell
The single-ended beam load cell is based on the strain gauge technology. It is available in seven different versions with maximum capacities that range from 10kg to 500kg. The load cell with the characteristic bellows has become a worldwide standard. It is widely employed in low-profile platform scales and conveyor scales,packaging machines for dosing and level measurement as well as in weighing modules that, for instance, are used for tank weighing and hopper weighing applications. The metal bellows protects the load cell against the ingress of moisture enables model FSH to function in harsh environments while maintaining its operating specifications,which makes suitable for both indoor and outdoor weight measurement applications.You may find Forsentek load cell FSH interchangeable with HBM load cell Z6FC3,RICE LAKE load cell RL9018SS,RICE LAKE load cell RLHBB,ZEMIC load cell BM11,Tedea-Huntleigh load cell model 355,VPG Revere load cell 9102, VPG Revere load cell SHBxR,VPG Celtron model HBB,etc..
Specifications
| Rated capacity | 10kg 20kg 30kg 50kg 100kg 200kg 500kg |
| Rated output | 2.0±0.002mV/V |
| Excitation | 3-15V |
| Zero balance | ±2% R.O. |
| Nonlinearity | ±0.018% R.O. |
| Hysteresis | ±0.018% R.O. |
| Nonrepeatability | ±0.017% R.O. |
| Creep(30min) | ±0.017% R.O. |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Compensated temperature | -10...+40oC |
| Operating temperature | -30...+70oC |
| Temperature shift zero | ±0.02% R.O./10oC |
| Temperature shift span | ±0.02% R.O./10oC |
| Input resistance | 390±30 ohms |
| Output resistance | 356±5 ohms |
| Insulation resistance | >5000M ohms |
| Ingress protection | IP68 |
| Material of element | Stainless steel |
| Cable | Ø5.3*3000mm 6-core shielded cable |
| Wiring code | Blue--Exc+ Black--Exc- Green--Sen+ Grey--Sen- White--Sig+ Red--Sig- |
Stainless steel hopper scale load cell 500kg 200kg 100kg 50kg 30kg 20kg 10kg
A load cell sensor is a transducer that converts mechanical force into electrical signal whose magnitude is proportional to the weight(or force) being applied.The measured load or force causes deformation of the measuring element(elastic body),the bonded strain gauge deforms accordingly which will cause the resistance change of the wheatstone bridge,under constant power supply,the output signal between Sig+ and Sig- will change proportionally,thus the load/force can be measured by measuring the output signal from the load cell.
