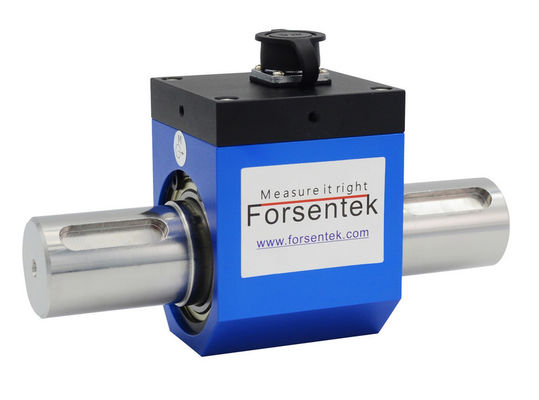

Rotating torque sensor shaft to shaft 200Nm dynamic torque transducer

Rotating torque sensor shaft to shaft 200Nm dynamic torque transducer

Rotating torque sensor shaft to shaft 200Nm dynamic torque transducer
Rotating torque sensor shaft to shaft 200Nm dynamic torque transducer Rotating torque sensor shaft to shaft 200Nm dynamic torque transducer Rotating torque sensor shaft to shaft 200Nm dynamic torque transducer

Large Image :  Rotating torque sensor shaft to shaft 200Nm dynamic torque transducer Get Best Price

Product Details:
Place of Origin: China
Brand Name: Forsentek
Certification: CE
Model Number: FY01
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: 1pc/box
Delivery Time: 3~20 working days
Payment Terms: T/T,Western Union or Paypal
Supply Ability: 1000pcs/month
Detailed Product Description
Usage: Torque Test/torque Measure Theory: Strain Gauge Torque Sensor
Output: Analog Sensor Torque Measurement Direction: Clockwise&Counterclockwise

Rotating torque sensor shaft to shaft 200Nm dynamic torque transducer

Shaft to Shaft Rotating Torque Sensor features a shaft to shaft mounting solution with torque measurements ranging from ±10 Nm to 500N-m .Dynamic torque sensor FY01 utilizes metal foil strain gauge technology and features slip-ring signal transmission allowing the sensor to operate at up to 4000RPM.Applications for the FY01 series torque transducer include power tool auditing, engine testing for automotive and aerospace, and industrial testing apparatuses.

A torque sensor is a transducer that converts a torsional mechanial input into an electrical output signal.Rotary torque sensor is designed to measure rotating torque like motor torque , rotating shaft torque,mixture torque,etc..Rotary torque transducer can also be used to measure static torque(which is also known as reaction torque).

FY01 is a slip ring torque transducer,utilizing strain gauge technology,compact size,shaft to shaft design,analog output,working with signal conditioner can get ±5V,±10V,0-5V,0-10V or 4-20mA output which is proportional to applied torque.The measured torque can also be display through torque indicator.
rotating torque sensor
Specifications

Capacity10NM 20NM 30NM 50NM 100NM
200NM 300NM 500NM
Rated output1.5mV/V
Excitation3-15V
Zero balance±2% R.O.
Non-linearity±0.2% R.O.
Hysteresis±0.2% R.O.
Non-repeatability±0.1% R.O.
Creep(5min)±0.1% R.O.
Safe overload120% F.S.
Ultimate overload200% F.S.
Compensated temperature-10...+40oC
Operating temperature-20...+60oC
Temperature shift zero±0.01% R.O./oC
Temperature shift span±0.01% R.O./oC
Input resistance350±30 ohms
Output resistance350±10 ohms
Insulation resistance>5000M ohms
Ingress protectionIP50
Material of elementStainless steel
CableØ5*3000mm 4-core shielded cable
Wiring codeRed--E+ Green--E- Yellown--S+ White--S-


Rotating torque sensor shaft to shaft 200Nm dynamic torque transducer
dynamic torque transducer
Dimensions(unit in mm)
shaft torque measurement

Rotating torque meter pdf
