| Usage: | Force Measurement | Theory: | Strain Gauge Load Cell |
|---|---|---|---|
| Output: | Analog Sensor | Capacity: | 500N 1KN 2KN 3KN 5KN 10KN |
| Force Measurement Direction: | Tension And Compression |

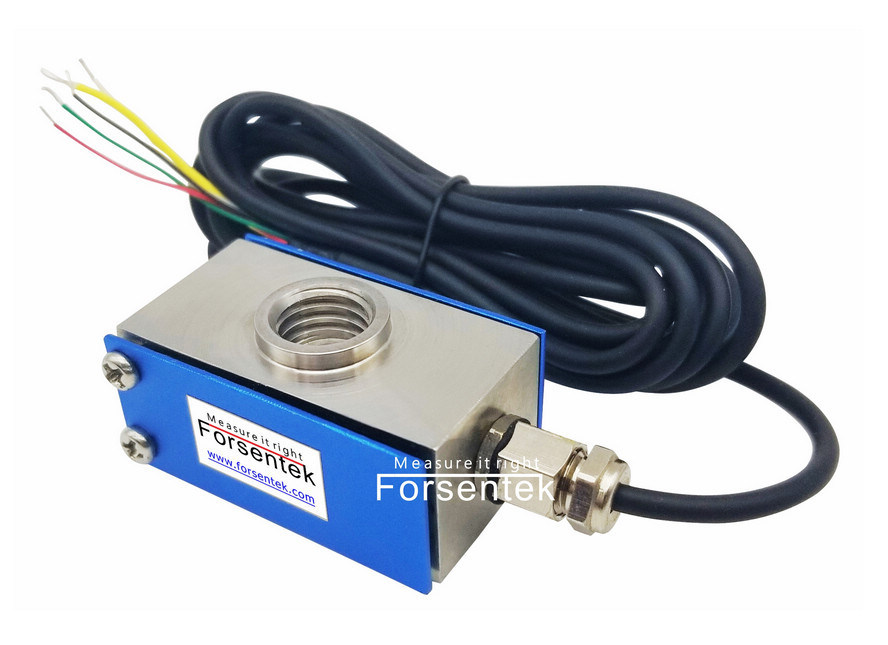

Low profile load cell 200lbs Transducer techniques mlp-200
Low profile load cell FLCE is strain gauge based to deliver mV/V output proportional to the measured force.FLCE series load cells are made of stainless steel,the unique low profile sturcture of FLCE series provides excellent stability for in line applications for tension and/or compression force measurement,while saving mounting space at the same time.You may find model FLCE is interchangeable with transducer techniques MLP series load cells.Low profile force transducer FLCE can be modified or customized according to client’s specific requirements.
Specifications
| Capacity | 500N 1kN 2kN 3kN 5kN 10kN |
| Rated output | 2.0mV/V |
| Excitation | 3-15V |
| Zero balance | ±0.05mV/V |
| Nonlinearity | ±0.15% R.O. |
| Hysteresis | ±0.15% R.O. |
| Nonrepeatability | ±0.05% R.O. |
| Creep(5min) | ±0.05% R.O. |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Compensated temperature | -10...+40oC |
| Operating temperature | -20...+60oC |
| Temperature shift zero | ±0.02% R.O./oC |
| Temperature shift span | ±0.02% R.O./oC |
| Input resistance | 700±100 ohms |
| Output resistance | 700±10 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP62 |
| Material of element | Stainless steel |
| Cable | Ø3.2*2000mm |
| Wiring code | Red--E+ Black--E- Green--S+ White--S- |
Mini low profile load cell interchangeable with transducer techniques MLP series load cells
Dimensions(in milimeter)
Ordering Code:
FLCE-500N (Measuring range 0-500N,tension and compression)
FLCE-1kN (Measuring range 0-1000N,tension and compression)
FLCE-2kN (Measuring range 0-2000N,tension and compression)
FLCE-3kN (Measuring range 0-3000N,tension and compression)
FLCE-5kN (Measuring range 0-5000N,tension and compression)
FLCE-10kN (Measuring range 0-10kN,tension and compression)
