| Usage: | Tension Compression Force Measurement | Theory: | Miniature Force Sensor 500N |
|---|---|---|---|
| Structure: | Micro S-type Load Cell | Capacity: | 10N 20N 50N 100N 200N 300N 500N 1KN |
| Force Measurement Direction: | Tension And Compression | Output: | Analog Transducer |
| Connection: | M4 Threaded Hole |

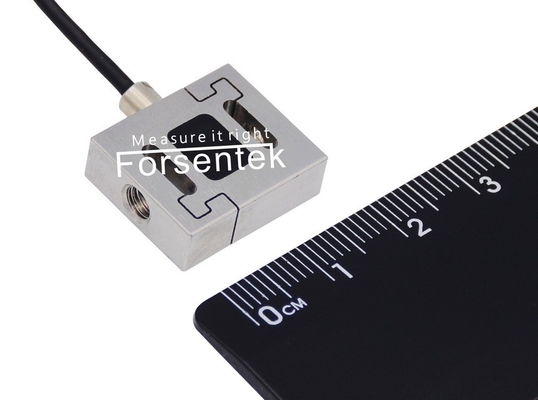

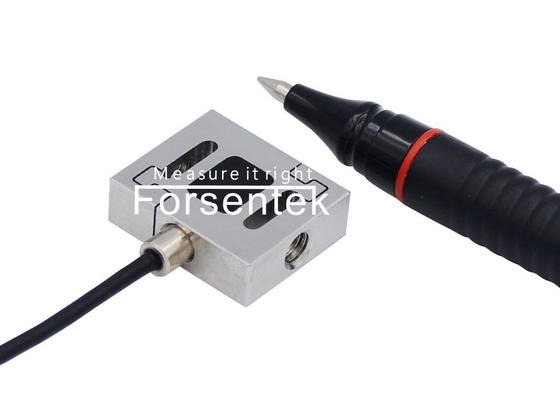

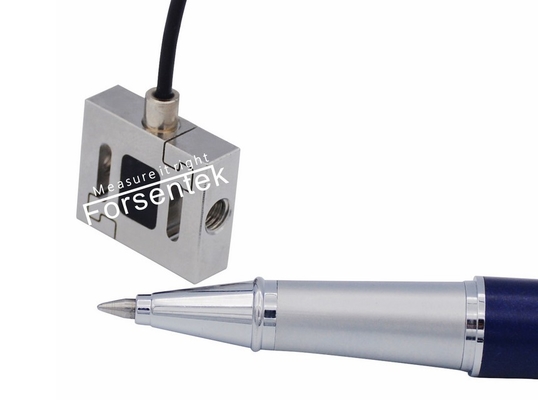

Miniature force transducer 500N mini force sensor tension load cell 50kg
Mini force sensor FSSM is made of stainless steel based on strain gauge technology with maximum 0.1% non-linearity,model FSSM is available in 10N / 20N / 50N / 100N / 200N / 300N / 500N / 1000N measuring ranges,it can be used for both tension and compression force measurement.The metric threaded holes located on both ends can be used to mount attachments to fit various industrial applications.The compact size makes model FSSM suitable for applications with limited mounting space.Miniature load cell FSSM is interchangeable with Futek Jr. Miniature S-Beam Load Cell LSB200 in most cases.
Specifications
| Capacity | 10N/1kgf/2.2lbf 20N/2kgf/4.4lbf 50N/5kgf/11.2lbf 100N/10kgf/22.4lbf 200N/20kgf/45lbf 300N/30kgf/67lbf 500N/50kgf/112lbf 1kN/100kgf/224lbf |
| Rated output | 2.0mV/V |
| Excitation | 3-12V |
| Zero balance | ±0.05mV/V |
| Nonlinearity | ±0.1% R.O. |
| Hysteresis | ±0.1% R.O. |
| Nonrepeatability | ±0.05% R.O. |
| Creep(5min) | ±0.1% R.O. |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Compensated temperature | -10...+40oC |
| Operating temperature | -20...+60oC |
| Temperature shift zero | ±0.03% R.O./oC |
| Temperature shift span | ±0.02% R.O./oC |
| Input resistance | 380±30 ohms |
| Output resistance | 350±5 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP62 |
| Material of element | Stainless steel |
| Cable | Ø2*4000mm 4-core shielded |
| Wiring code |
Compression@ Green--Signal+ White--Signal- |
Miniature force sensor 1000N 500N 300N 200N 100N 50N 20N 10N

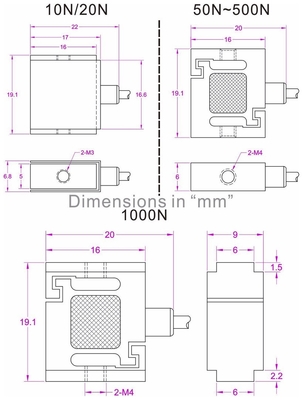

Dimensions(in milimeter)
Ordering Code:
FSSM-10N, FSSM-20N, FSSM-50N, FSSM-100N, FSSM-200N, FSSM-300N, FSSM-500N, FSSM-1kN
