Product Details:
Payment & Shipping Terms:
|
| Usage: | Compression Tension Force Measurement | Theory: | Strain Gauge Load Cell |
|---|---|---|---|
| Output: | Analog Sensor | Capacity: | 5kN 10kN 20kN 30kN 40kN 50kN 60kN 75kN |
| Material: | Stainless Steel | Type: | S-type Load Cell |

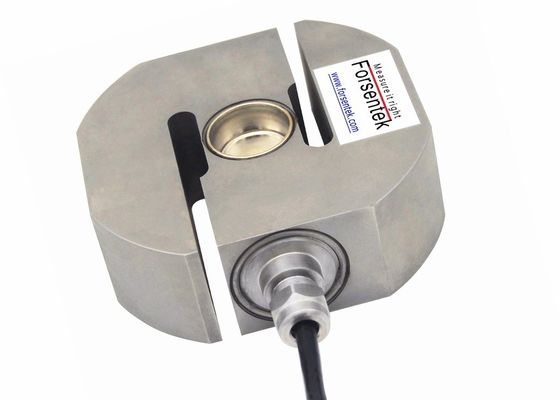

500kg tension compression load cell 1000kg compression and tension load cell 2000kg
Specifications
| Capacity |
500kg / 5kN 1000kg / 10kN 2000kg / 20kN 3000kg / 30kN 4000kg / 40kN 5000kg / 50kN 6000kg / 60kN 7500kg / 75kN |
| Rated output | 2.0 mV/V |
| Excitation | 3-15V |
| Zero balance | ±0.03mV/V |
| Nonlinearity | ±0.017% R.O. |
| Hysteresis | ±0.017% R.O. |
| Nonrepeatability | ±0.01% R.O. |
| Creep(30min) | ±0.017% R.O. |
| Safe overload | 150% F.S. |
| Ultimate overload | 300% F.S. |
| Compensated temperature | -10...+40oC |
| Operating temperature | -35...+65oC |
| Temperature shift zero | ±0.02% R.O./10oC |
| Temperature shift span | ±0.02% R.O./10oC |
| Input resistance | 350±5 ohms |
| Output resistance | 350±3 ohms |
| Insulation resistance | >5000M ohms |
| Ingress protection | IP68 |
| Material of element | Stainless steel |
| Cable |
500kg---Ø5*3000mm 1000kg~7500kg---Ø5*6000mm 4-core shielded cable |
| Wiring code |
Red--Exc+ Black--Exc- |

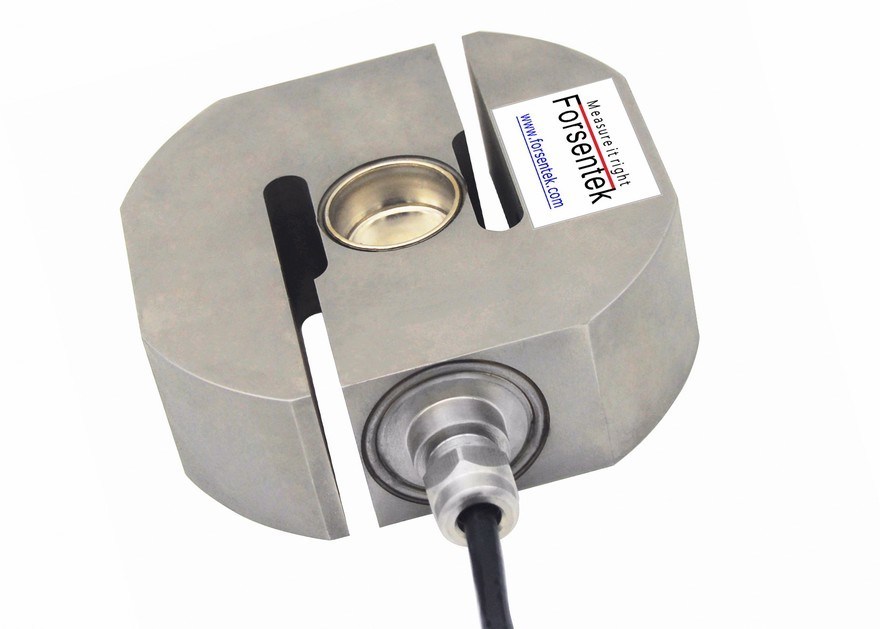

500kg tension compression load cell 1000kg compression and tension load cell 2000kg
Dimensions(Unit in "mm")
