| Usage: | Measure Torque | Theory: | Strain Gauge Torque Sensor |
|---|---|---|---|
| Output: | Analog Sensor | Torque Measurement Direction: | Clockwise&Counterclockwise |
| Torque Capacity: | 0.1NM 0.2NM 0.5NM 1NM 2NM 3NM 5NM |

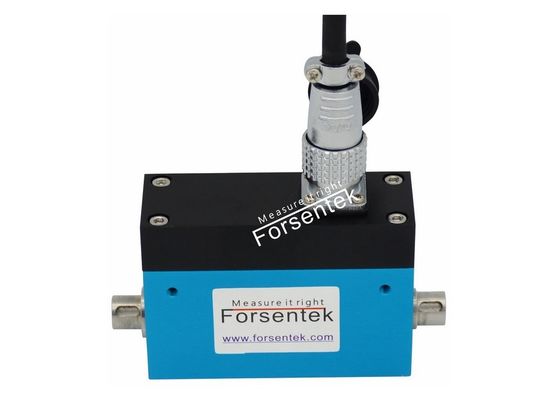

10 lb-in Rotary torque sensor 20 in-lb Motor torque measurement 50 lbf*in
Specifications
| Capacity |
0.1NM 0.2NM 0.5NM 1NM 2NM 3NM 5NM |
| Rated output | 1.0 mV/V |
| Excitation | 3-15V |
| Zero balance | ±2% R.O. |
| Nonlinearity | ±0.15% R.O. |
| Hysteresis | ±0.15% R.O. |
| Nonrepeatability | ±0.05% R.O. |
| Creep(5min) | ±0.1% R.O. |
| Safe overload | 120% F.S. |
| Ultimate overload | 200% F.S. |
| Compensated temp. | -10...+40oC |
| Operating temp. | -20...+60oC |
| Temp. shift zero | ±0.01% R.O./oC |
| Temp. shift span | ±0.01% R.O./oC |
| Input resistance | 350±30 ohms |
| Output resistance | 350±10 ohms |
| Insulation resistance | >5000M ohms |
| Ingress protection | IP50 |
| Material of element | Stainless steel |
| Cable | Ø5.5*3000mm with mating connector included |
| Wiring code |
Red--Exc+ Green--Exc- |
Rotary torque meter measuring torque of a motor
A torque sensor is a transducer that converts a torsional mechanial input into an electrical output signal.Rotary torque sensor is designed to measure rotating torque like motor torque, rotating shaft torque,mixture torque,etc..Rotary torque transducer can also be used to measure static torque which is also known as reaction torque.
Dimensions(in milimeter)
