Load button load cell 1KN 500N 200N 100N miniature button load cell

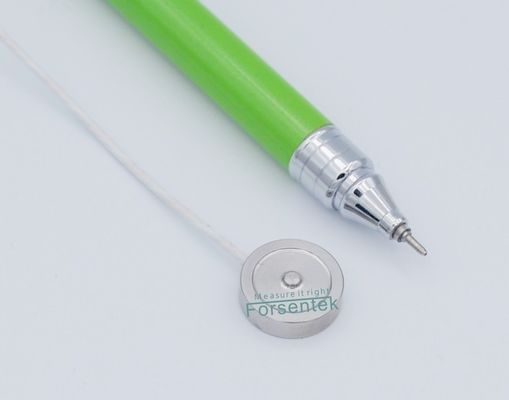

Miniature load button load cell FCCK is made of stainless steel based on strain gauge technology,very compact size with 12.7mm outer diameter and 3.95mm height.Miniature load cell FCCK offers 50N / 100N / 200N / 500N four different measuring ranges to choose from.High output resistance,low heat emission,you may find mini load cell FCCK suitable for applications such as clamping force measurement,force overload protection,load distribution measurement,pressing die force measurement,auto equipment,medical divices,assembly line,etc..
Ordering Code: FCCK-50N FCCK-100N FCCK-200N FCCK-500N
Specifications
| Capacity |
50N 100N 200N 500N (5kgf 10kgf 10kgf 50kgf) |
| Rated output | 1.5mV/V |
| Excitation | 3-12V |
| Zero balance | ±0.1mV/V |
| Nonlinearity | ±1% R.O. |
| Hysteresis | ±1% R.O. |
| Nonrepeatability | ±0.5% R.O. |
| Creep(5min) | ±0.5% R.O. |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Compensated temperature | -10...+40oC |
| Operating temperature | -20...+60oC |
| Temperature shift zero | ±0.05% R.O./oC |
| Temperature shift span | ±0.05% R.O./oC |
| Input resistance | >700 ohms |
| Output resistance | >700 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP65 |
| Material of element | Stainless steel |
| Cable | Ø1.2*4000mm |
| Wiring code | Red--E+ Black--E- Green--S+ White--S- |
Mini button load cell 500N 200N 100N 50N
Dimensions(unit in "mm")
