| Usage: | Force Measurement | Theory: | Strain Gauge Load Cell |
|---|---|---|---|
| Output: | Analog Sensor | Capacity: | 1000N(100kgf) |
| Force Measuring Direction: | Tension And Compression |

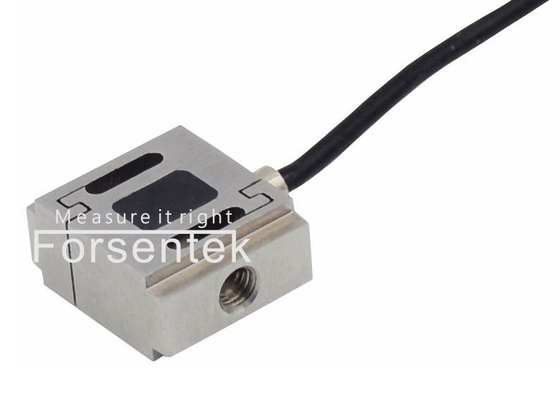

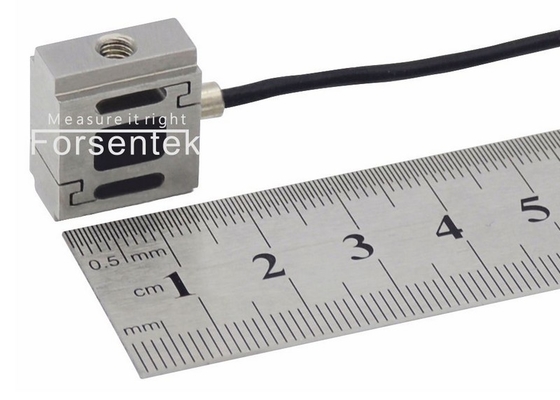

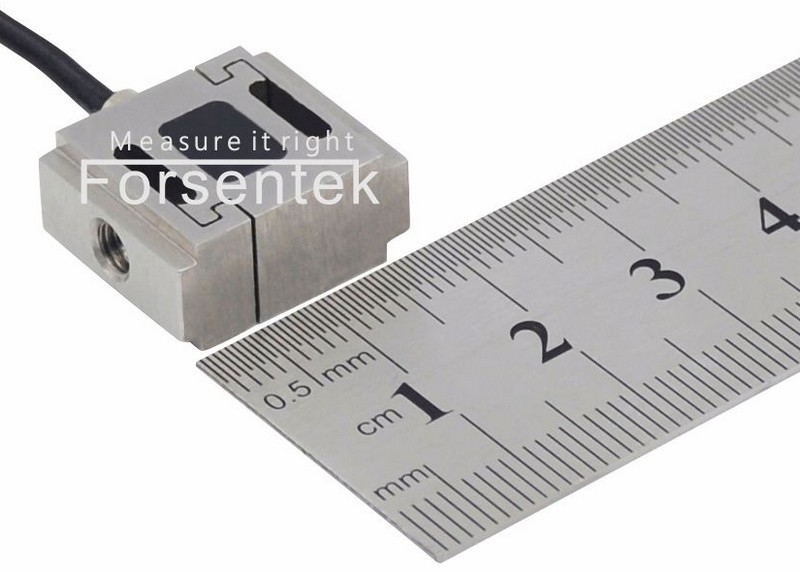

1000N Miniature load cell 100kg miniature tension compression force sensor 1kN
Features
Specifications
| Capacity | 1000N(100kgf) |
| Rated output | 2.0 mV/V |
| Excitation | 3-10V |
| Zero balance | ±0.1mV/V |
| Nonlinearity | ±0.1% R.O. |
| Hysteresis | ±0.1% R.O. |
| Nonrepeatability | ±0.05% R.O. |
| Creep(5min) | ±0.1% R.O. |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Compensated temperature | -10...+40oC |
| Operating temperature | -20...+60oC |
| Temperature shift zero | ±0.03% R.O./oC |
| Temperature shift span | ±0.02% R.O./oC |
| Input resistance | 380±30 ohms |
| Output resistance | 355±5 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP65 |
| Material of element | Stainless steel |
| Cable | Ø2*4000mm |
| Wiring code | Red--E+ Black--E- Green--S+ White--S- |
Miniature load cell for tension and compression force measurementLFS 27
0

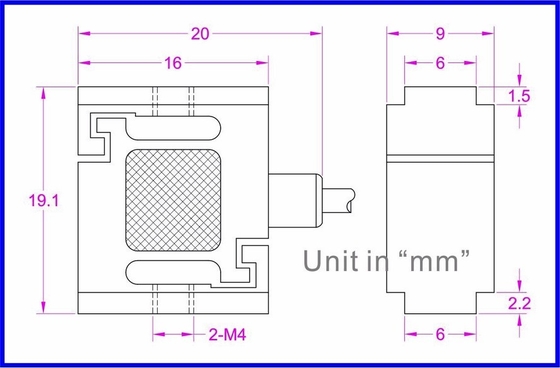

Dimensions(Unit in "mm")
Ordering Code: FSSM-1kN
