Detailed Product Description
Usage: Force Measurement Style: Miniature S Type Force Sensor
Output: Analog Sensor Capacity: 10N 20N 50N 100N 200N 300N 500N 1KN
Direction: Tension And Compression Threaded Hole: M3/M4

Micro Force Transducer 2 lb 5lb 10 lb 20lb 50lb 100 lb Miniature Jr S-beam Load Cell

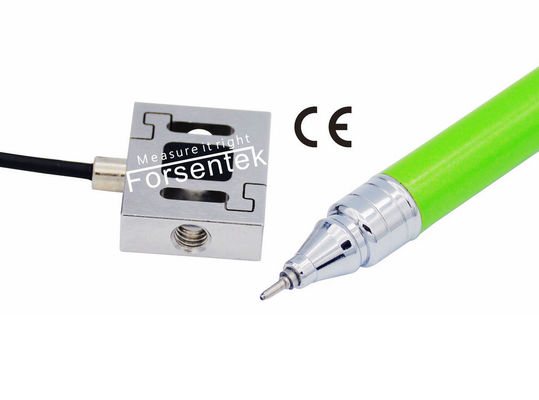

Miniature Force Sensor FSSM offers a compact design for a variety of applications. the S Beam Load Cell series provides accuracy, compact design features, offers 10N / 20N / 50N / 100N / 200N / 300N / 500N / 1kN eight rated capacities to choose from.The mini load cell FSSM utilizes metal foil strain gauge technology to deliver 2.0mV/V output with maximum 0.1% non-linearity,the compact design enables the FSSM to be easily embedded into machinery or test equipment – ideal for packaging machinery, assembly machinery or end-of-line test equipment.The sensor features M3/M4 threaded holes on two sides for the mounting of attachments or implements, this Micro Force Transducer force sensor can be used for both tension and compression force measurement in applications with limited mounting space. You may find junior S beam load cell FSSM interchangeable with FUTEK load cell LSB200,Mark Miniature Force Sensors Series R04,flintec s-beam force sensor ISA,flintec force transducer ISB,etc..

miniature force sensor 2lb 5 lb 10lb 20 lb 50 lb 100lb
Specifications

Capacity 10N / 1kgf / 2.2lbf
20N / 2kgf / 4.4 lbf
50N / 5kg / 11.2lb
100N / 10kgf / 22.4lbf
200N / 20kgf / 45 lbs
300N / 30kg / 67lbf
500N / 50kgf / 112 lb
1kN / 100kg / 224 lbf
Rated output 2.0mV/V
Excitation 3-12V
Zero balance ±0.05mV/V
Nonlinearity ±0.1% R.O.
Hysteresis ±0.1% R.O.
Nonrepeatability ±0.05% R.O.
Creep(5min) ±0.1% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.03% R.O./oC
Temperature shift span ±0.02% R.O./oC
Input resistance 380±30 ohms
Output resistance 350±5 ohms
Insulation resistance >2000M ohms
Ingress protection IP62
Material of element Stainless steel
Cable Ø2*4000mm 4-core shielded cable
Wiring code

Compression@
Red--Excitation+ Black--Excitation-

Green--Signal+ White--Signal-



A force sensor is a transducer that converts force acting on it into electronic signal which is proportional to the applied force.The acting force causes deformation of the measuring element,the bonded strain gage deforms accordingly which will cause the resistance change of the wheatstone bridge,under constant power supply,the output signal between Sig+ and Sig- will change proportionally,thus the force can be measured by measuring the output signal from the load cell. Tension and compression force transducer FSSM is designed to measure force in both tension and compression direction,outputs millivolt signal ranging -30~30mV, and signal amplification may be required for most applications, a load cell signal conditioner can be used to get -5-5V, 0-10V or 4-20mA signal proportional to applied force.The amplified output then can be easily processed by PLCs and data acquisition software.The force can be displayed through force indicator,force meter FPT is integrated with high accuracy/low noise 24 bit Sigma-Delta ADC,sampling speed up to 960Hz makes it suitable for both static and dynamic measurement;FPT also supports Modbus RTU protocol with RS485 or RS232 communication port,amplified signal 0-5V,0-10V,0-20mV or 4-20mA is also achievable from FPT.
