Product Details:
Payment & Shipping Terms:
|
| Usage: | Force Monitoring | Output: | Analog Sensor |
|---|---|---|---|
| Capacity: | 3t | Submersible Depth: | 1000 Meters |

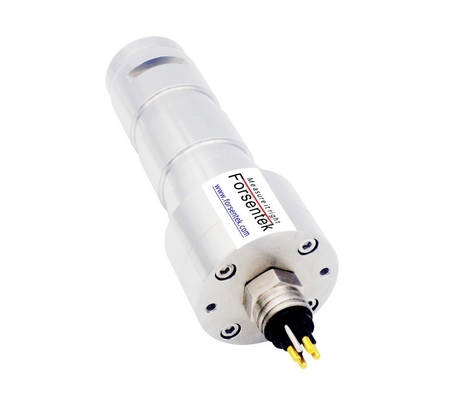

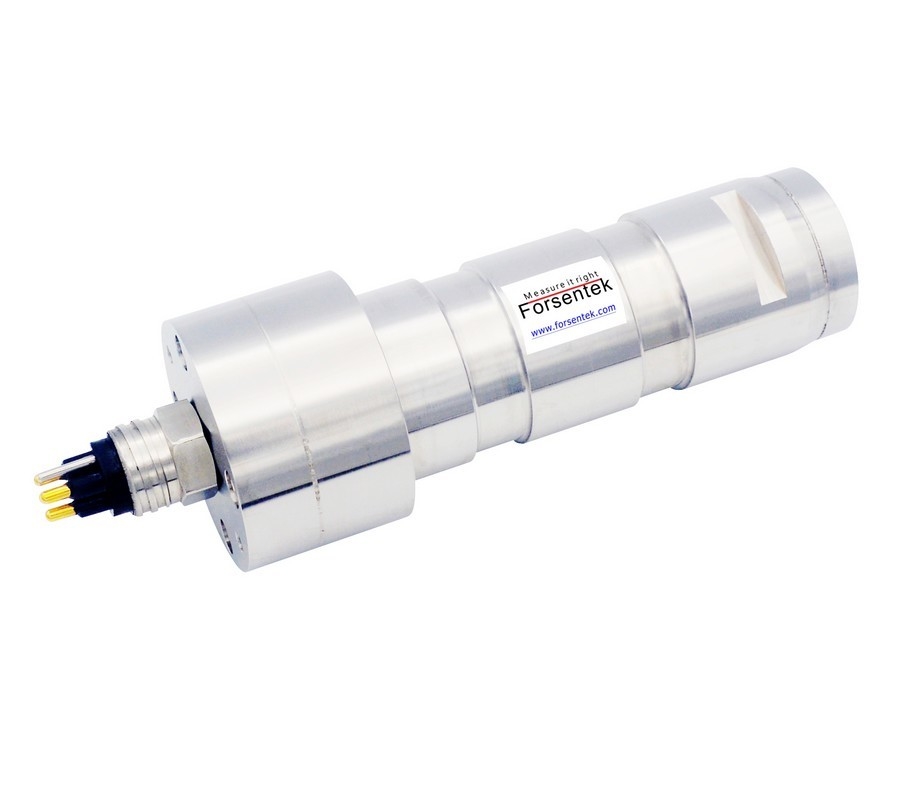

Custom Underwater Pin Load Cell | Bespoke Submersible Load Pin
The custom underwater pin load cell is purpose-built for demanding subsea and offshore applications where accurate, long-term force measurement is essential. Engineered from marine-grade stainless steel and featuring a hermetically sealed construction, it offers exceptional resistance to corrosion and water ingress, ensuring reliable operation in harsh marine conditions. A fully integrated subsea connector enables secure and stable signal transmission, even at extreme depths. While the standard configuration operates effectively down to 1000 meters, bespoke designs with enhanced sealing technology can endure pressures equivalent to 4000 meters of water depth. This adaptability makes it an ideal solution for deep-sea exploration, heavy-duty offshore lifting operations, mooring load monitoring, and integration into ROV-mounted tooling systems. The robust build and precision engineering ensure that performance remains stable over years of operation, even in continuously submerged environments.
Each bespoke submersible load pin is designed and manufactured to match the customer’s specific dimensional, mechanical, and functional requirements. Capacities of up to 200 tonnes can be accommodated, and users can select from a variety of electrical output options—including mV/V, 0–5V, 0–10V, 4–20mA, and RS485—for seamless integration into new or existing monitoring and control systems. The load cell is designed to operate reliably in a wide thermal range from –40°C to +150°C, making it suitable for both polar seas and high-temperature subsea zones. Whether used for precision load monitoring in offshore lifting, structural load testing in marine engineering, or tension measurement in underwater mooring systems, the custom underwater pin load cell delivers repeatable accuracy and dependable results. By combining advanced sealing techniques, high-strength materials, and a tailored design approach, it provides a trusted measurement solution for some of the world’s most challenging underwater environments.
Specifications
| Rated capacity |
3000kg (Customizable) |
| Rated output | 1.0 mV/V |
| Excitation | 3-12V |
| Zero balance | ±0.05mV/V |
| Non-linearity | ±0.5% F.S. |
| Hysteresis | ±0.5% F.S. |
| Non-repeatability | ±0.2% F.S. |
| Creep(3min) | ±0.1% F.S. |
| Safe overload | 150% F.S. |
| Ultimate overload | 250% F.S. |
| Compensated temp. | 0...+40oC |
| Operating temp. | -20...+65oC |
| Temp. shift zero | ±0.02% F.S./oC |
| Temp. shift span | ±0.02% F.S./oC |
| Input resistance | 750±100 ohms |
| Output resistance | 700±100 ohms |
| Insulation resistance | >2000M ohms |
| Submersible depth | 1000 meters |
| Material of element | Stainless steel |
| Cable | Need to be confirmed seperately |
Custom Underwater Pin Load Cell | Bespoke Submersible Load Pin
