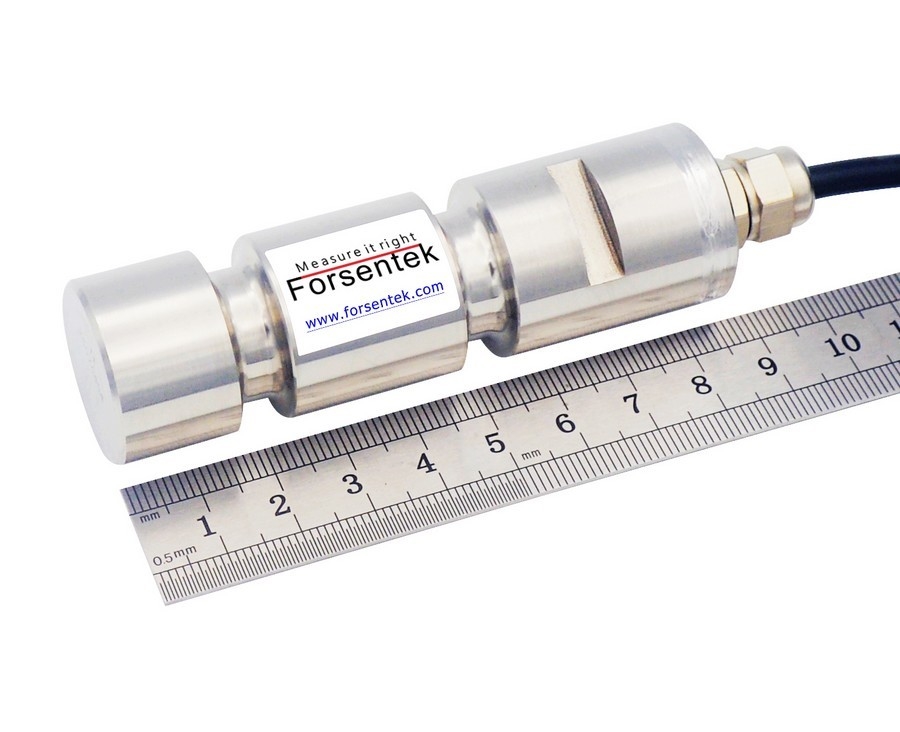

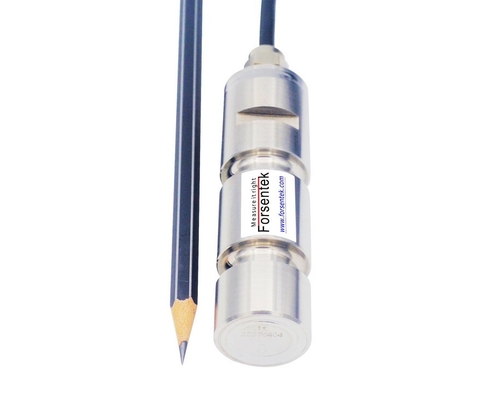

Miniature Pin Load Cell | IP68 Waterproof Load Pin | Customizable Design
The LPMA Miniature Pin Load Cell is a highly compact and durable force sensing solution designed for applications that demand both precision and reliability. Manufactured from premium stainless steel, this load pin is engineered to withstand challenging operating conditions while delivering consistent and accurate force measurements. With rated capacities available in 500kg, 1000kg, and 2000kg, the LPMA load cell is suitable for a wide range of industrial and commercial applications. Its IP68-rated hermetic sealing provides superior protection against dust, water, and corrosive environments, ensuring reliable performance in both indoor and outdoor settings. The load cell utilizes shear pin sensing technology to detect force effectively, making it particularly well-suited for tension monitoring and load control tasks in demanding operations.
Ideal application scenarios for the LPMA include pulley and tension sheave load monitoring, marine cable and mooring tension measurement, industrial automation systems requiring real-time force feedback, and safety load detection in amusement rides. Its miniature form factor allows for seamless integration in space-limited environments, without compromising on strength or measurement integrity. The robust construction ensures a long service life, even under constant mechanical stress. Furthermore, Forsentek offers customized design services for the LPMA model, allowing it to be precisely tailored to your specific installation and performance requirements. This ensures not only compatibility but also optimal operation within your existing mechanical setup.
Specifications
| Rated capacity |
500kg 1000kg 2000kg (Customizable) |
| Rated output | 1.0 mV/V |
| Excitation | 3-12V |
| Zero balance | ±0.05mV/V |
| Non-linearity | ±1% F.S. |
| Hysteresis | ±1% F.S. |
| Non-repeatability | ±0.3% F.S. |
| Creep(10min) | ±0.1% F.S. |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Compensated temp. | 0...+40oC |
| Operating temp. | -20...+65oC |
| Temp. shift zero | ±0.02% F.S./oC |
| Temp. shift span | ±0.02% F.S./oC |
| Input resistance | 380±30 ohms |
| Output resistance | 350±10 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP68 |
| Material of element | Stainless steel |
| Cable | Ø5*3000mm 4-core shielded cable |
| Wiring code |
Red--Exc+ Black--Exc- Green--Sig+ White--Sig- |
