| Usage: | Beehive Scales,platform Scales | Type: | Platform Load Cell |
|---|---|---|---|
| Output: | Analog Sensor | Capacity: | 60kg 100kg 150kg 200kg 300kg 500kg |
| Feature: | Off Center Weighing Sensor |

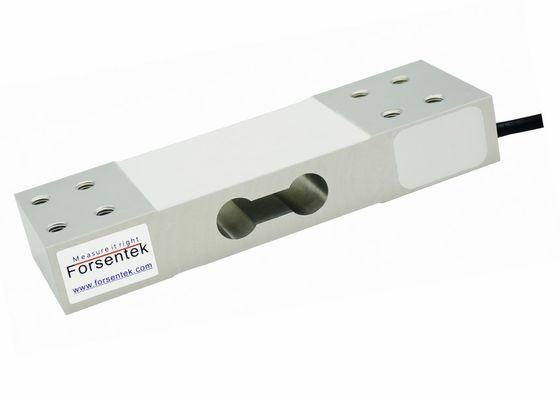

60kg 100kg 150kg 200kg 300kg 500kg
weighing load cell for hive scales
Features
Specifications
| Capacity | 60kg 100kg 150kg 200kg 300kg 500kg |
| Rated output | 2.0±5%mV/V |
| Excitation | 5-15V |
| Zero balance | ±5% R.O. |
| Nonlinearity | ±0.015% R.O. |
| Hysteresis | ±0.01% R.O. |
| Nonrepeatability | ±0.01% R.O. |
| Creep(30min) | ±0.02% R.O. |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Compensated temperature | -10...+40oC |
| Operating temperature | -20...+60oC |
| Temperature shift zero | ±0.02% R.O./10oC |
| Temperature shift span | ±0.02% R.O./10oC |
| Input resistance | 405±10 ohms |
| Output resistance | 350±3 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP65 |
| Material of element | Aluminum alloy |
| Cable | Ø5*2000mm(Longer cable available) |
| Wiring code | Red--Exc+ Black--Exc- Green--Sig+ White--Sig- |
Off-center load cell 60kg 100kg 150kg 200kg 300kg 500kg
Dimensions(in "mm")
Ordering code
FNP-60kg FNP-100kg FNP-150kg FNP-200kg FNP-300kg FNP-500kg
