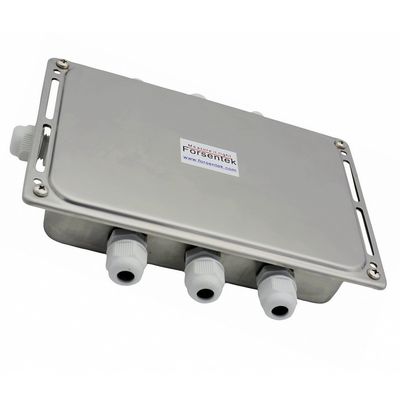

Summing box junction box for load cell

Dimensions

Internal view

Brief instruction

• Stainless steel housing,IP65 protection

• Clip terminals J1~J6 are for load cell connection

• Potentiometers W1~W6 are for signal trimming

• Terminal "indicator" is for indicator connection

• Wiring code: E+/E- --- Excitation+/-    S+/S- --- Signal+/-

• Recommended cable diameter: 3.5~6.5mm

• Signal trimming for up to 6 load cells
