| Usage: | Force Measurement | Type: | Female Threaded Load Cell |
|---|---|---|---|
| Load Range: | 100N 200N 500N 1kN 2kN 5kN 10kN | Connection: | M4/M5/M6/M8/M10 Internal Thread |
| Load Direction: | Tension/Compression |

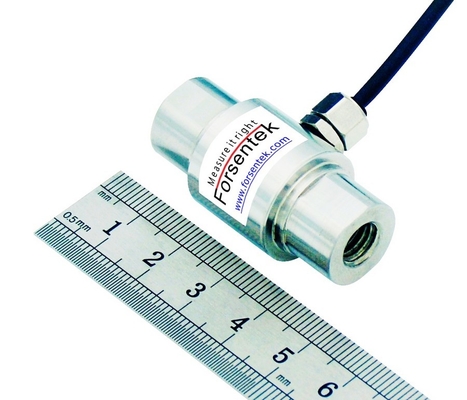

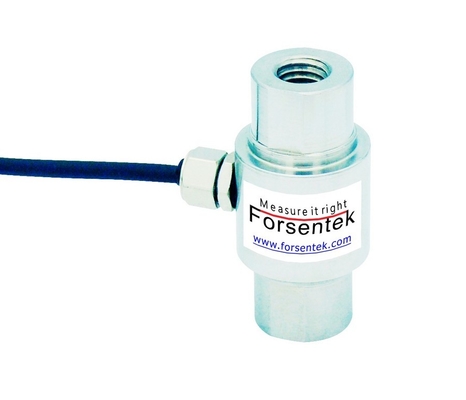

Miniature Tension Load Cell With M10/M8/M6/M5/M4 Mounting Hole
Tension compression rod end load cell FLRA is designed with an internal threaded hole on each side of the transducer, this allows it to be easily embedded into machinery or test equipment. Miniature tension compression force sensor FLRA is made from stainless steel and offers M4 / M5 / M6 / M8 / M10 five mounting options. Internal threaded load cell FLRA is available in 100N / 200N / 500N / 1kN / 2kN / 5kN / 10kN seven rated capacities for bidirectional force measurement and it can be customized according to customer requirements.

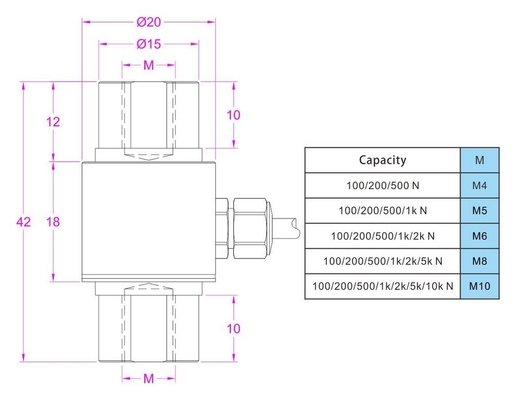

Dimensions
Specifications
| Rated capacity |
100N / 10kg / 20lb 200N / 20kg / 44lb 500N / 50kg / 110lb 1kN / 100kg / 220 lb 2kN / 200kg / 440 lb 5kN / 500kg / 1.1klb 10kN / 1000kg / 2.2k lb |
| Rated output | 1.5 mV/V |
| Excitation | 3-12V |
| Zero balance | ±0.05mV/V |
| Nonlinearity |
±0.1% of R.O. ≥5kN: ±0.3% of R.O. |
| Hysteresis |
±0.1% of R.O. ≥5kN: ±0.3% of R.O. |
| Nonrepeatability |
±0.05% of R.O. ≥5kN: ±0.1% of R.O. |
| Creep(3min) | ±0.05% of R.O. |
| Safe overload | 150% of F.S. |
| Ultimate overload | 200% of F.S. |
| Compensated temperature | 0...+40oC |
| Operating temperature | -20...+60oC |
| Temperature shift zero | ±0.02% R.O./oC |
| Temperature shift span | ±0.02% R.O./oC |
| Input resistance | 350±30 ohms |
| Output resistance | 350±10 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP62 |
| Material of element | Stainless steel |
| Cable | Ø3*2000mm 4-core shielded |
| Wiring code | Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal- |

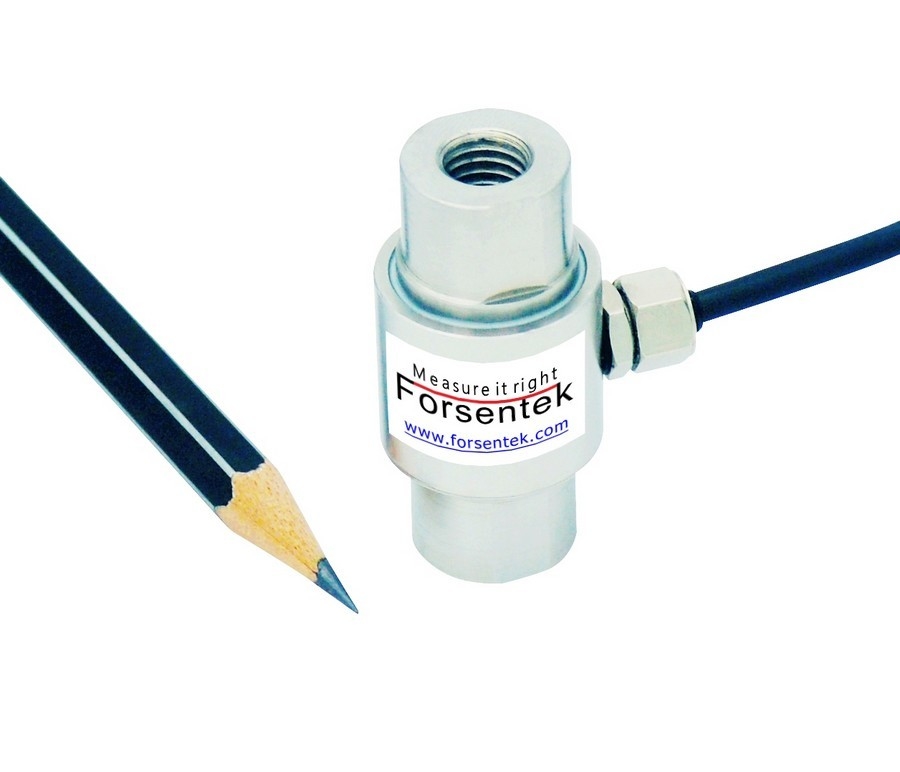

Miniature Tension Load Cell With M10/M8/M6/M5/M4 Mounting Hole
Instruction of load cell output:
Load cell output: = (Power supply * Rated output) * Load / Capacity
Rated output of Rod End Load Cell FLRA is around 1.5mV/V.
Power supply of Rod End Force Sesnor FLRA is within 3-12V.
Load / Capacity is within 0-1.
So the output range of Female Threaded Load Cell FLRA is normally within -18mV...+18mV for pull and push force measurement.
Example: Internal threaded rod end load cell FLRA-500N with 1.5mV/V sensitivity powered by 10V DC, the output range is -15mV...+15mV.
A signal conditioner can be used with the load cell to deliver -5~5V, 0-10V or 4-20mA output.
Example: Compression And Tension Load Cell FLRA-2kN working with -10-10V amplifier, the Force-Voltage relationship will be 0-2000N push force VS 0-10V output, 0-2000N pull force VS 0-(-10V) output, which is linear regardless of the measurement error.
