| Type: | Clamp-on Load Cell | Capacity: | 10kN 20kN 50kN 100kN 200kN |
|---|---|---|---|
| Usage: | Wire Rope Tension Measurement | Output: | 0-5V 0-10V 4-20mA |
| Material: | Alloy Steel | Function: | Rope Overload Protection |
Steel Cable Overload Protection Load Cell Wire Rope Overload Sensor

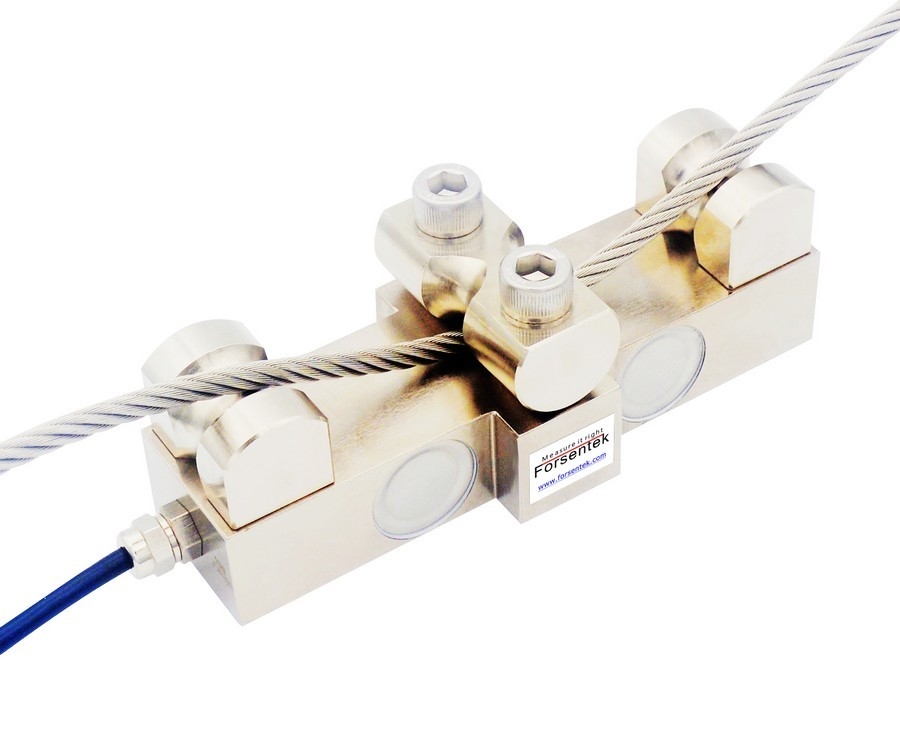

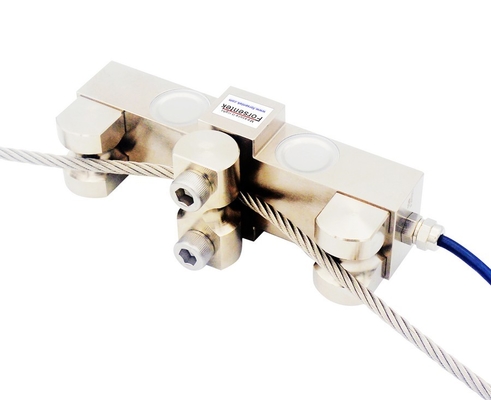

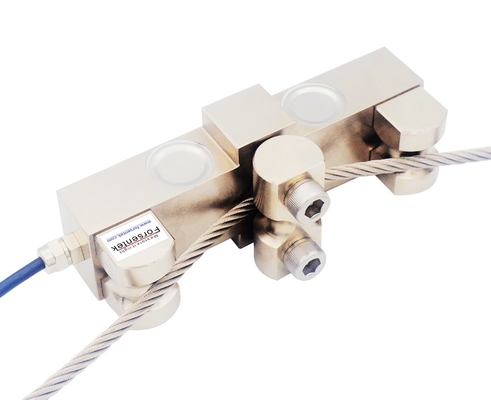

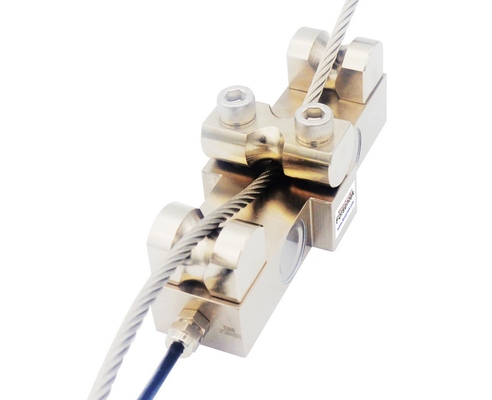

Wire rope load cell FZTA is specially designed to be easily clamped on the fixed end of the steel cable to monitor the rope tension without opening it, this allows the existing safety margin to be maintained. Clamp-on load cell FZTA offers 10kN, 20kN, 50kN, 100kN and 200kN five rated capacities supporting cable diameter from 6mm to 36mm. 0-5V, 0-10V and 4-20mA output is available through built-in amplifier. Rope tension sensor FZTA is widely used for cable tension measurement and provides overload protection for hoisting equipment like cranes and elevators.
Dimensions(Unit in milimeter)
Specifications
| Rated Capacity |
10kN 20kN 50kN 100kN 200kN |
|
| Rated output | 1.0-1.5mV/V | 0-5V 0-10V 4-20mA |
| Excitation | 3-15V | 12-26V DC |
| Zero balance | ±5% of rated output | |
| Nonlinearity | ±0.5% of rated capacity | |
| Hysteresis | ±0.5% of rated capacity | |
| Nonrepeatability | ±0.2% of rated capacity | |
| Creep(5min) | ±0.05% of rated capacity | |
| Safe overload | 150% of rated capacity | |
| Ultimate overload | 200% of rated capacity | |
| Compensated temperature | 0...+40oC | |
| Operating temperature | -20...+60oC | |
| Temperature shift zero | ±0.01% R.O./oC | |
| Temperature shift span | ±0.01% R.O./oC | |
| Ingress protection | IP65 | |
| Material of element | Alloy steel | |
| Cable |
10/20kN: Ø5*3000mm 50/100/200kN: Ø5.8*6000mm |
|
