Jr S-beam Miniature Load Cell 2kg Futek QSH02031 Force Transducer 5lb

Jr S-beam Miniature Load Cell 2kg Futek QSH02031 Force Transducer 5lb

Jr S-beam Miniature Load Cell 2kg Futek QSH02031 Force Transducer 5lb
Jr S-beam Miniature Load Cell 2kg Futek QSH02031 Force Transducer 5lb Jr S-beam Miniature Load Cell 2kg Futek QSH02031 Force Transducer 5lb Jr S-beam Miniature Load Cell 2kg Futek QSH02031 Force Transducer 5lb Jr S-beam Miniature Load Cell 2kg Futek QSH02031 Force Transducer 5lb Jr S-beam Miniature Load Cell 2kg Futek QSH02031 Force Transducer 5lb

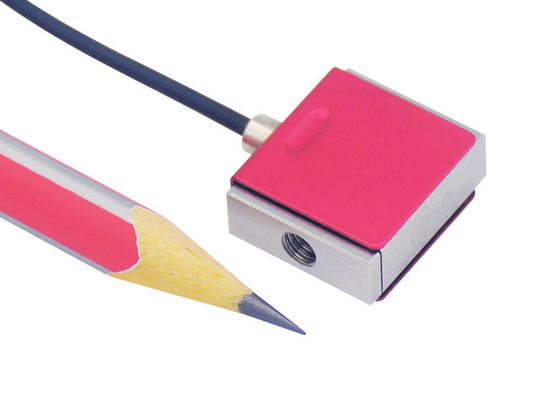

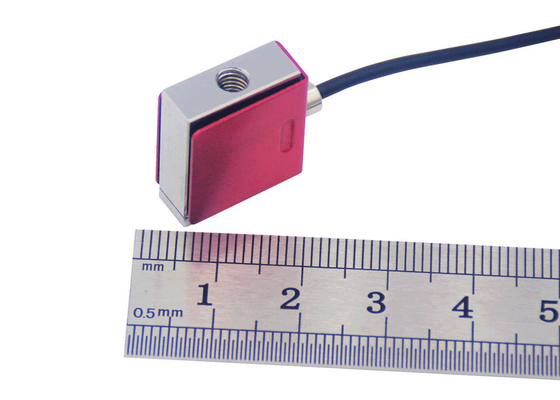

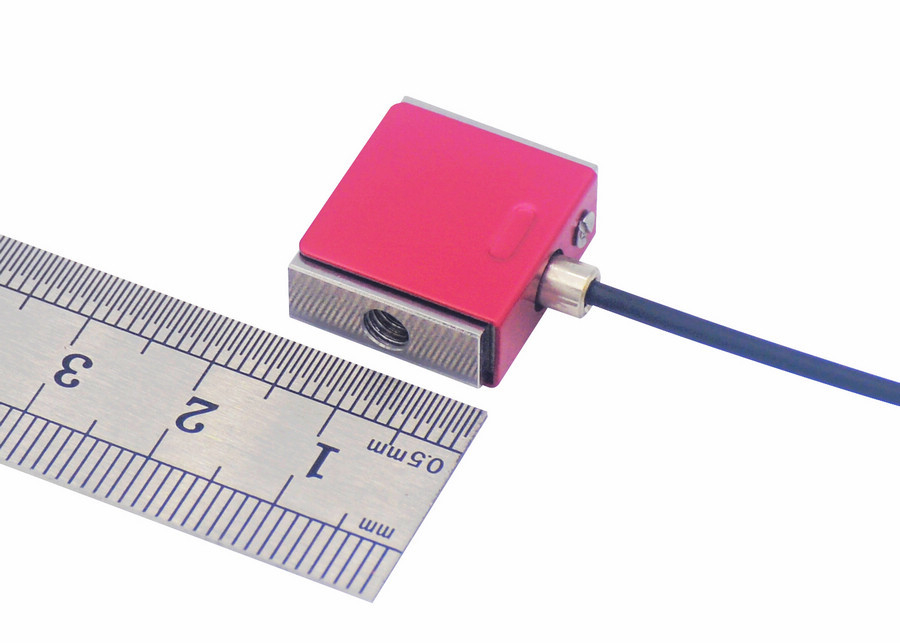

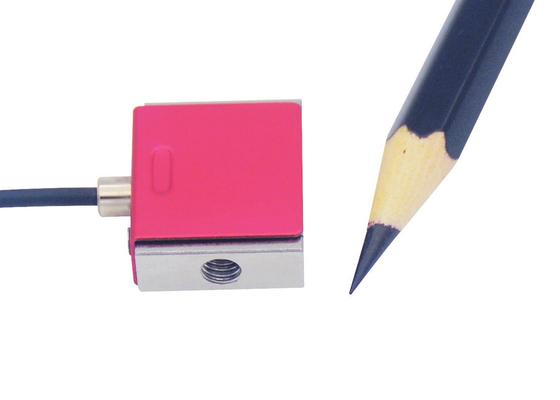

Large Image :  Jr S-beam Miniature Load Cell 2kg Futek QSH02031 Force Transducer 5lb Get Best Price

Product Details:
Place of Origin: China
Brand Name: Forsentek
Model Number: FSSP
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: Carton
Delivery Time: 3~25 working days
Payment Terms: T/T,Western Union or Paypal
Supply Ability: 4566pcs/month
Detailed Product Description
Usage: Force Measurement Load Direction: Compression And Traction
Structure: Miniature S-beam Jr. Load Cell Output: Analog Transducer
Connection: M3/M4 Threaded Hole QSH02029: 1lb
QSH02030: 2lb QSH02031: 5lb
QSH02032: 10lb QSH02033: 25lb
QSH02034: 50lb QSH02035: 100lb
Material: Stainless Steel

Jr S-beam Miniature Load Cell 2kg Futek QSH02031 Force Transducer 5lb

Miniature Junior S-Beam Load Cell FSSP offers a compact design for a variety of applications. the S Beam Load Cell series provides accuracy, compact design features, micro Junior Load Cell FSSP offers 500g / 1kgf / 2kgf / 5kgf / 10kgf / 20kgf / 30kgf / 50kgf eight rated capacities to choose from.The mini jr. s beam Pull Load Cell FSSP utilizes metal foil strain gauge technology to deliver 2.0mV/V output with maximum 0.1% non-linearity,the compact design enables s type pull force sensor FSSP to be easily embedded into machinery or test equipment – ideal for packaging machinery, assembly machinery or end-of-line test equipment. The tension sensor features M3/M4 threaded holes on two sides for the mounting of attachments or implements, this micro load cell force sensor can be used for both tension and compression force measurement in applications with limited mounting space. You may find junior S beam pull load cell FSSP interchangeable with FUTEK jr s-beam load cell LSB201, Mark Miniature Force Sensors Series R04, flintec s-beam force sensor ISA, flintec force transducer ISB,etc..

Miniature Jr. S-Beam Load Cell 5lbMiniature S-Beam Jr Load Cell 5lb

A force sensor is a transducer that converts force acting on it into electronic signal which is proportional to the applied force.The acting force causes deformation of the measuring element,the bonded strain gage deforms accordingly which will cause the resistance change of the wheatstone bridge,under constant power supply,the output signal between Sig+ and Sig- will change proportionally,thus the force can be measured by measuring the output signal from the load cell. Miniature Push And Pull Load Cell FSSP is designed to measure force in both tension and compression direction,outputs millivolt signal ranging -30~30mV, and signal amplification may be required for most applications, a load cell signal conditioner can be used to get -5-5V, 0-10V or 4-20mA signal proportional to applied force. The amplified output then can be easily processed by PLCs and data acquisition software.The force can be displayed through force indicator, force meter FPT is integrated with high accuracy/low noise 24 bit Sigma-Delta ADC, sampling speed up to 960Hz makes it suitable for both static and dynamic measurement; FPT also supports Modbus RTU protocol with RS485 or RS232 communication port, amplified signal 0-5V,0-10V,0-20mV or 4-20mA is also achievable from FPT.

Miniature Jr. S-Beam Load Cell QSH02031Futek Jr. S-Beam Load Cell QSH02031

Specifications

Capacity

5N / 500g / 1.1lb

10N / 1kg / 2.2lbf
20N / 2kg / 4.5 lbs
50N / 5kg / 11.2lb
100N / 10kg / 22.5lb
200N / 20kg / 45lbs
300N / 30kg / 67lbf
500N / 50kg / 112lb

Rated output 2.0mV/V
Excitation 3-12V
Zero balance ±0.1mV/V
Nonlinearity ±0.1% of capacity
Hysteresis ±0.1% of capacity
Nonrepeatability ±0.05% of capacity
Creep(5min) ±0.1% of capacity
Safe overload 150% of capacity
Ultimate overload 200% of capacity
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.03% R.O./oC
Temperature shift span ±0.02% R.O./oC
Input resistance 380±30 ohms
Output resistance 352±3 ohms
Insulation resistance >2000M ohms
Ingress protection IP50
Material of element Stainless steel
Cable Ø2*4000mm 4-core shielded cable

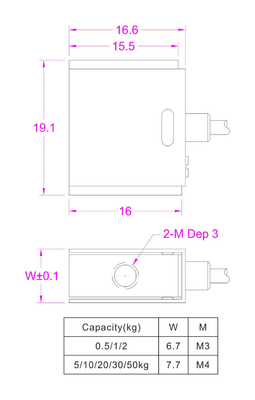

Wiring code

Compression@
Red--Excitation input+  Black--Excitation input-

Green--Signal output+  White--Signal output-

QSH02029 QSH02030 QSH02031 QSH02032 QSH02033 QSH02034 QSH02035

Jr S-beam Miniature Load Cell 2kg Futek QSH02031 Force Transducer 5lb

Futek Jr. S-Beam Load Cell LSB201Futek S-Beam Jr. Load Cell QSH02031

Instruction of load cell output:

Load cell output: = (Power supply * Rated output) * Load / Capacity
Rated output of Miniature Jr S-beam Load Cell FSSP is around 2.0mV/V.
Power supply of Miniature Push Pull Force Sensor FSSP is normally within 3-12V.
Load / Capacity is within 0-1.
So the output range of Micro Load Cell FSSP is normally within -24mV...+24mV for tension/compression force measurement.
Example: Miniature Jr S-beam Load Cell FSSP-2kg with 2.0mV/V sensitivity powered by 10V DC,the output range is -20mV...+20mV.

A signal conditioner can be used with the load cell to deliver -5~5V, 0-10V or 4-20mA output.

Example: Miniature Force Load Cell FSSP-1kg working with -10-10V amplifier,the Force-Voltage relationship will be 0-1000g compression load VS 0-10V output,0-1000g tension load VS 0-(-10V) output,when you get 5V output,it means the current load is 500gf compression force,when you get -1V output,it means the current load is 100gf traction force,and so on.

Miniature Jr. S-Beam Load Cell 2kg
 Click here to download datasheet
