| Type: | Handbrake Force Sensor | Capacity: | 1000N |
|---|---|---|---|
| Usage: | Braking Force Measurement | Load Direction: | Push And Pull |
| Output: | Analog Sensor |
Automative Handbrake Force Transducer Car Braking Force Measurement

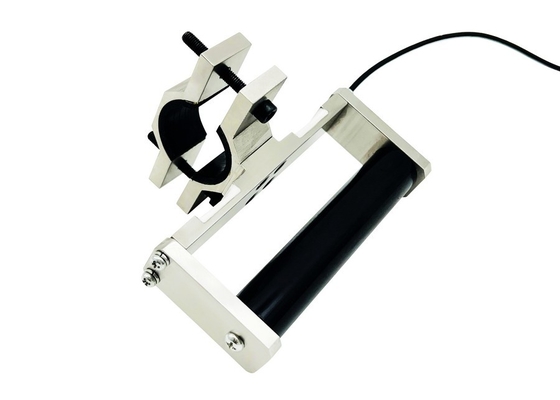

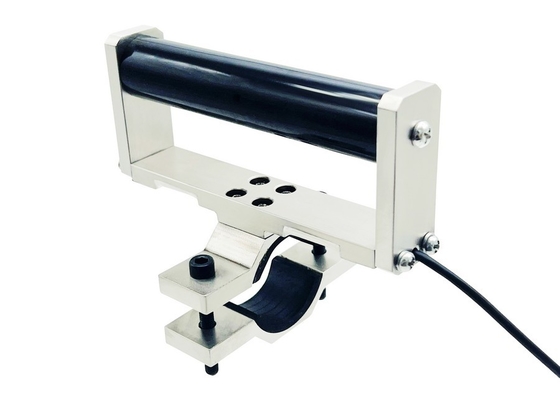

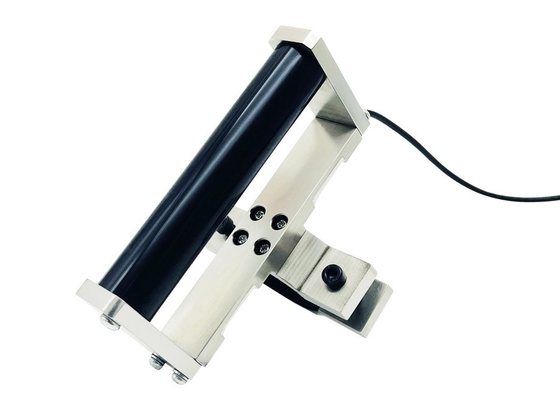

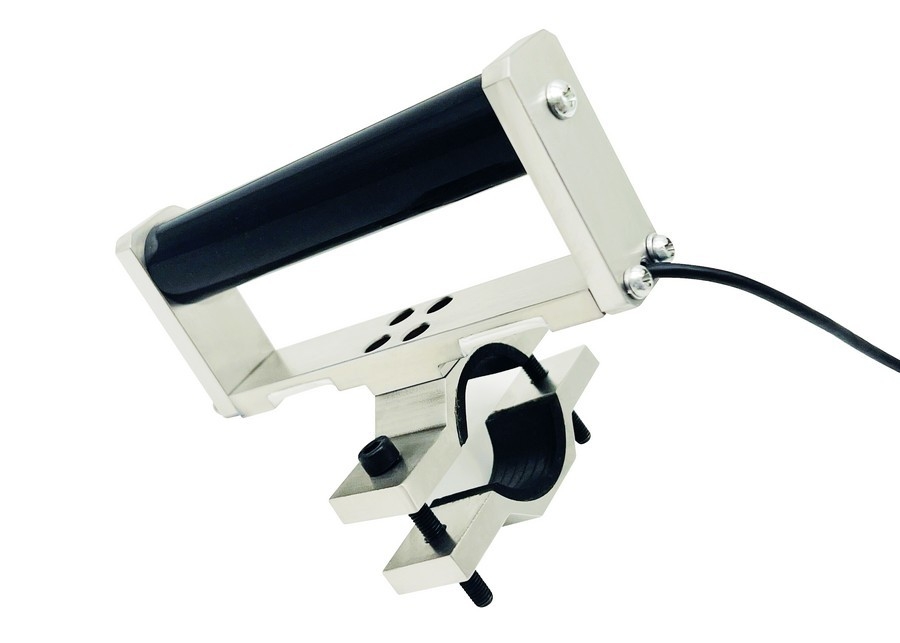

Car handbrake operating force sensor FLXG-1kN is specially designed with an integrated clamping tool which can be used to mount the transducer to a parking brake easily and measures the vertical force applied to car handbrake. Hand brake force transducr FLXG-1kN is made from stainless steel based on strain gauge technology with 1kN rated capacity, it is also applicable for force measurement in rehabilitation and sports equipment. Model FLXG-1kN can be modified or customized to suit different applications.
Dimensions
Specifications
| Rated Capacity |
1kN |
| Rated output | 1.5 mV/V |
| Excitation | 3-15V |
| Zero balance | ±0.1mV/V |
| Nonlinearity | ±0.3% of rated capacity |
| Hysteresis | ±0.3% of rated capacity |
| Nonrepeatability | ±0.1% of rated capacity |
| Creep(3min) | ±0.05% of rated capacity |
| Safe overload | 150% of rated capacity |
| Ultimate overload | 180% of rated capacity |
| Compensated temperature | 0...+40oC |
| Operating temperature | -10...+60oC |
| Temperature shift zero | ±0.03% of R.O./oC |
| Temperature shift span | ±0.03% of R.O./oC |
| Input resistance | 750±50 ohms |
| Output resistance | 700±10 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP62 |
| Material of element | Stainless steel |
| Cable | Ø3*3000mm 4-core shielded |
| Wiring code |
Tension@ Green--Signal+ White--Signal- |
