Usage: Clamping Force Measurement Structure: Donut Thru-hole
Output: Analog Sensor Capacity: 10/20/30/50/100/200KN

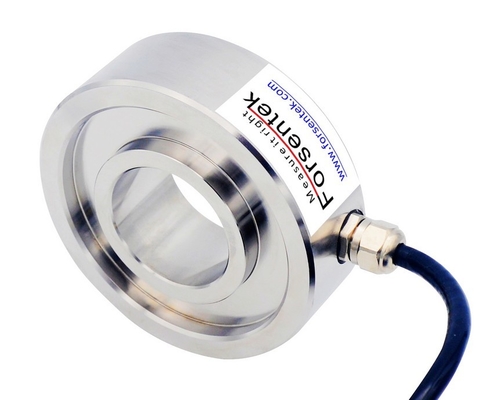

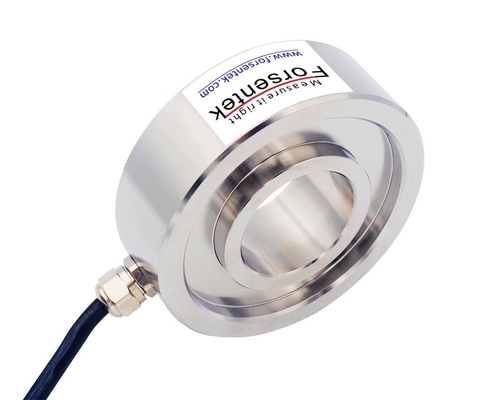

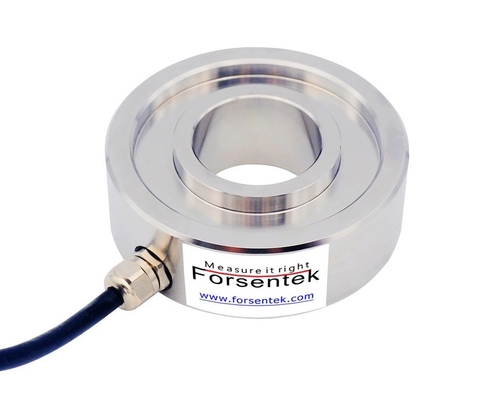

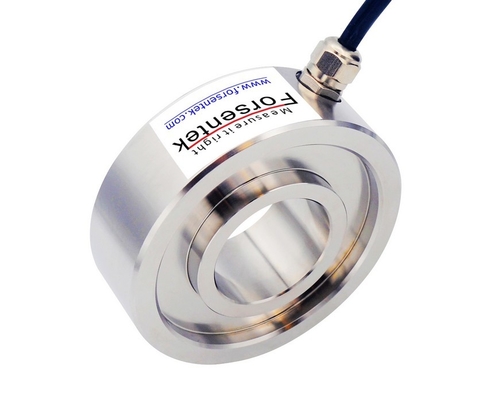

Washer Load Cell 1t 2t 3ton Donut Thru-Hole Force Sensor 5t 10t 20t

Through Hole Washer Load Cell FDBG is made of stainless steel based on strain gauge technology to deliver maximum 0.5% non-linearity of the rated capacity intended for fastening force measurement. Donut Load Cell FDBG offers 0-1ton / 0-2ton / 0-3ton / 0-5ton / 0-10ton / 0-20ton six rated measuring ranges to choose from. Hollow type load cell FDBG features a customizable thru-hole ranging from 7mm to 32mm located at the center of the transducer, so the load structure can pass through the sensor, which makes hollow force transducer FDBF an excellent option for fastening force measurement. Clamping force load cell FDBG can also be modified or customized upon request.

10t_THROUGH_HOLE_LOAD_CELL_20t



Specifications

Capacity

10kN / 20kN / 30kN / 50kN / 100kN / 200kN

2.2klb / 4.5klb / 6.7klbs / 11.2klbf / 22klbf / 45klb

1 ton / 2 ton / 3 ton / 5 ton / 10 ton / 20 ton

Rated output 1.5 mV/V
Excitation 3-15V
Zero balance ±0.05mV/V
Nonlinearity ±0.5% R.O.
Hysteresis ±0.5% R.O.
Nonrepeatability ±0.2% R.O.
Creep(10min) ±0.1% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.02% R.O./oC
Temperature shift span ±0.02% R.O./oC
Input resistance 750±50 ohms
Output resistance 700±10 ohms
Insulation resistance >5000M ohms
Ingress protection IP64
Material of element Stainless steel
Cable Ø5*3000mm 4-core shielded
Wiring code

Red--Excitation+    Black--Excitation-

Green--Signal+     White--Signal-



Washer Load Cell 1t 2t 3ton Donut Thru-Hole Force Sensor 5t 10t 20t

2t_THROUGH_HOLE_LOAD_CELL_5t

Output signal of load cell FDBG:

Load cell output: = (Power supply * Rated output) * Load / Capacity
Rated output of Hollow Load Cell FDBG is normally around 1.5mV/V.
Power supply of Washer Type Force Sensor FDBG is normally within 3-15V.
Load / Capacity is within 0-1.
So the output range of Clamping Force Transducer FDBG is normally within 0…+22.5mV.

Example one: Through Hole Load Cell FDBG-10kN with 1.5mV/V sensitivity powered by 10V DC,the output range is 0mV...+15mV.
Example two: Hollow Type Load Cell FDBG-20kN with 1.5mV/V rated output powered by 5V DC,the output range is 0mV...+7.5mV.

10t_WASHER_LOAD_CELL_20ton

The mV/V output from the wheatstone bridge sometimes can hardly be processed directly, a signal conditioner can be used with the load cell to deliver 0~5V, 0-10V or 4-20mA output.

Example: Washer  Type Load Cell FDBG-50kN working with amplifier FSC(0-5V)-24V,the Load-Voltage relationship will be 0-50kN compression force VS 0-5V output, which is linear regardless of the measurement error, 1V output corresponds to 10kN compression load, 2V output corresponds to 20kN press force, and so on.

Thru-hole Loadcell FDBG can also work with digital indicator FPT to deliver below functions:

-Display force value in real time

-Peak holding to grab the maximum force during testing

-RS485 or RS232 interface

-0-5V/0-10V/4-20mA analog output

-Switch output

3t_WASHER_LOAD_CELL_5ton

Washer Load Cell 1t 2t 3ton Donut Thru-Hole Force Sensor 5t 10t 20t

1t_WASHER_LOAD_CELL_2ton

Ordering code Measurement Range Force direction
FDBG-10kN 0-1000kgf / 0-2200lbs Compression
FDBG-20kN 0-2000kgf / 0-4500lbs
FDBG-30kN 0-3000kgf / 0-6700lbf
FDBG-50kN 0-5000kgf / 0-11200lbs
FDBG-100kN 0-10 ton / 0-22.5klbf
FDBG-200kN 0-20 ton / 0-45klb
