Usage: Clamping Force Measurement Structure: Hollow Load Cell
Output: Analog Sensor Capacity: 0-15ton Selectable

Donut Thru-hole Load Cell 1t 2t 3t Hollow Type Clamping Sensor 5t 10t 15ton

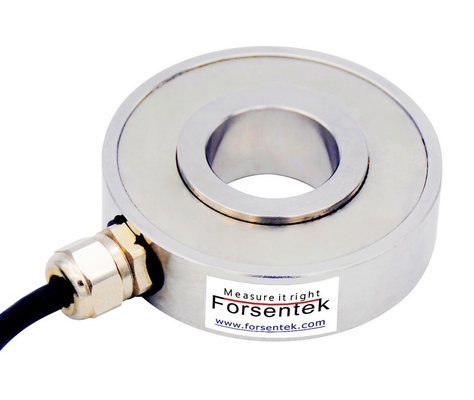

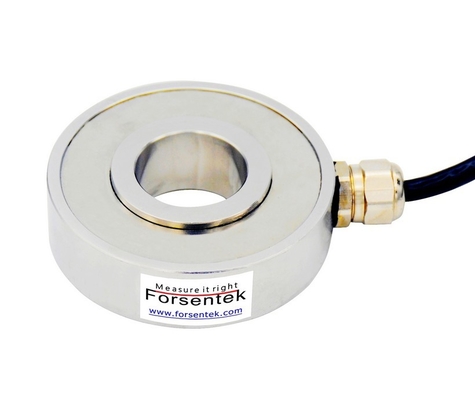

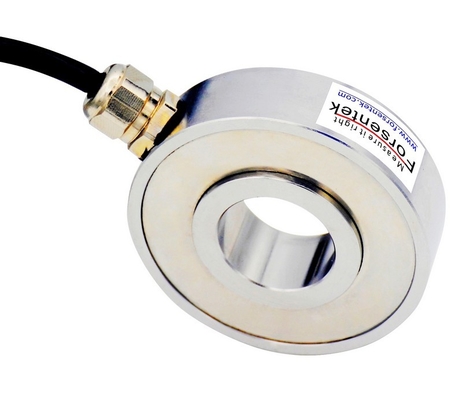

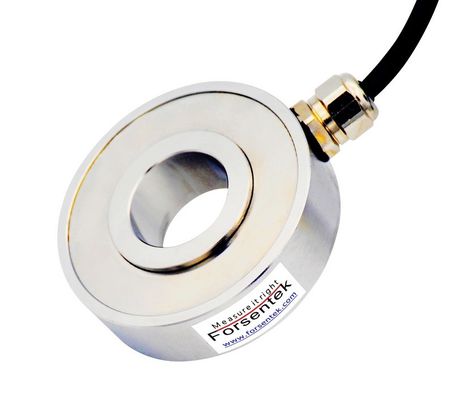

Donut Through Hole Load Cell FDBA is made of stainless steel based on strain gauge technology to deliver maximum 0.5% non-linearity of the rated capacity intended for fastening force measurement. Force Washer Load Cell FDBA offers a wide measuring ranges from 10kgf to 15ton.Hollow type load cell FDBA features a thru-hole located at the center of the transducer, so the load structure can pass through the sensor, which makes hollow force transducer FDBA an excellent option for tightening force measurement. Clamping force load cell FDBA can also be modified or customized upon request.

1000kg_donut_load_cell_2000kg

Dimensions

Thru-hole_Donut_Load_Cell

Ordering code Measurement Range Force direction
FDBA-10kg 0-100N / 0-22lbs Compression
FDBA-20kg 0-200N / 0-44lbs
FDBA-50kg 0-500N / 0-110lbf
FDBA-100kg 0-1kN / 0-220lbs
FDBA-200kg 0-2kN / 0-440lbf
FDBA-300kg 0-3kN / 0-660lbs
FDBA-500kg 0-5kN / 0-1.1klb
FDBA-1t 0-10kN / 0-2.2klbf
FDBA-2t 0-20kN / 0-4.4klb
FDBA-3t 0-30kN / 0-6.6klbf
FDBA-5t 0-50kN / 0-11klb
FDBA-10t 0-100kN / 0-22klbs
FDBA-15t 0-150kN / 0-33klb

Specifications

Capacity

10kg / 20kg / 50kg / 100kg / 200kg / 300kg / 500kg

1 ton / 2 ton / 3 ton / 5 ton / 10 ton / 15ton

Rated output 1.5 mV/V
Excitation 3-15V
Zero balance ±0.05mV/V
Nonlinearity ±0.5% R.O.
Hysteresis ±0.5% R.O.
Nonrepeatability ±0.2% R.O.
Creep(10min) ±0.1% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.02% R.O./oC
Temperature shift span ±0.02% R.O./oC
Input resistance 750±50 ohms
Output resistance 700±10 ohms
Insulation resistance >5000M ohms
Ingress protection IP65
Material of element Stainless steel
Cable Ø3*3000mm 4-core shielded
Wiring code

Red--Excitation+    Black--Excitation-

Green--Signal+     White--Signal-



Donut Thru-hole Load Cell 1t 2t 3t Hollow Type Clamping Sensor 5t 10t 15ton

5000kg_donut_load_cell_10ton

Output signal of load cell FDBA:

Load cell output: = (Power supply * Rated output) * Load / Capacity
Rated output of Force Washer Load Cell FDBA is normally around 1.5mV/V.
Power supply of Washer Type Force Sensor FDBA is normally within 3-15V.
Load / Capacity is within 0-1.
So the output range of Clamping Force Transducer FDBA is normally within 0…+22.5mV.

Example one: Through Hole Load Cell FDBA-100kg with 1.5mV/V sensitivity powered by 10V DC,the output range is 0mV...+15mV.
Example two: Hollow Type Load Cell FDBA-200kg with 1.5mV/V rated output powered by 5V DC,the output range is 0mV...+7.5mV.

1t_washer_load_cell_2t

The mV/V output from the wheatstone bridge sometimes can hardly be processed directly, a signal conditioner can be used with the load cell to deliver 0~5V, 0-10V or 4-20mA output.

Example: Washer  Type Load Cell FDBA-500kg working with amplifier FSC(0-5V)-24V, the Load-Voltage relationship will be 0-500kgf clamping force VS 0-5V output, which is linear regardless of the measurement error, 1V output corresponds to 100kgf load, 2V output corresponds to 200kgf force, and so on.

Thru-hole Loadcell FDBA can also work with digital indicator FPT to deliver below functions:

-Display force value in real time

-Peak holding to grab the maximum force during testing

-RS485 or RS232 interface

-0-5V/0-10V/4-20mA analog output

-Switch output

5t_WASHER_LOAD_CELL_10t

Click here to download datasheet
