Through Hole Force Sensor 10kN 20kN 30kN Hollow Load Cell 50kN 100kN 200kN

Through Hole Force Sensor 10kN 20kN 30kN Hollow Load Cell 50kN 100kN 200kN

Through Hole Force Sensor 10kN 20kN 30kN Hollow Load Cell 50kN 100kN 200kN
Through Hole Force Sensor 10kN 20kN 30kN Hollow Load Cell 50kN 100kN 200kN Through Hole Force Sensor 10kN 20kN 30kN Hollow Load Cell 50kN 100kN 200kN Through Hole Force Sensor 10kN 20kN 30kN Hollow Load Cell 50kN 100kN 200kN Through Hole Force Sensor 10kN 20kN 30kN Hollow Load Cell 50kN 100kN 200kN

Large Image :  Through Hole Force Sensor 10kN 20kN 30kN Hollow Load Cell 50kN 100kN 200kN Get Best Price

Product Details:
Place of Origin: China
Brand Name: Forsentek
Model Number: FDBG
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: Carton
Delivery Time: 3~25 working days
Payment Terms: T/T,Western Union or Paypal
Supply Ability: 3189pcs/month
Detailed Product Description
Usage: Force Measurement Structure: Through Hole
Output: Analog Sensor Capacity: 10/20/30/50/100/200KN

Through Hole Force Sensor 10kN 20kN 30kN Hollow Load Cell 50kN 100kN 200kN

Donut Through Hole Force Transducer FDBG is made of stainless steel based on strain gauge technology to deliver maximum 0.5% non-linearity of the rated capacity intended for fastening force measurement. Washer Type Load Cell FDBG offers 0-10kN / 0-20kN / 0-30kN / 0-50kN / 0-100kN / 0-200kN six rated measuring ranges to choose from. Hollow type load cell FDBG features a customizable thru-hole ranging from 7mm to 32mm located at the center of the transducer, so the load structure can pass through the sensor, which makes hollow force transducer FDBF an excellent option for tightening force measurement. Clamping force load cell FDBG can also be modified or customized upon request.

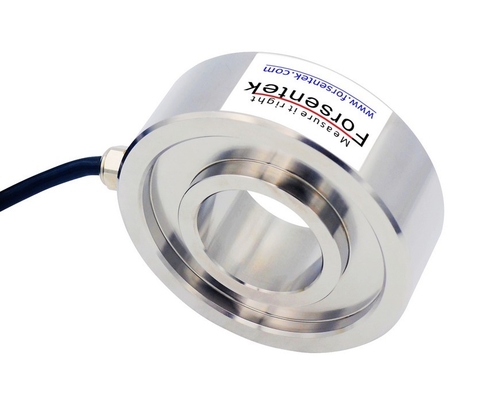

DONUT_THROUGH_HOLE_LOAD_CELL



Specifications

Capacity

10kN / 20kN / 30kN / 50kN / 100kN / 200kN

2.2klb / 4.5klb / 6.7klbs / 11.2klbf / 22klbf / 45klb

1ton / 2ton / 3ton / 5ton / 10ton / 20ton

Rated output 1.5 mV/V
Excitation 3-15V
Zero balance ±0.05mV/V
Nonlinearity ±0.5% R.O.
Hysteresis ±0.5% R.O.
Nonrepeatability ±0.2% R.O.
Creep(10min) ±0.1% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.02% R.O./oC
Temperature shift span ±0.02% R.O./oC
Input resistance 750±50 ohms
Output resistance 700±10 ohms
Insulation resistance >5000M ohms
Ingress protection IP64
Material of element Stainless steel
Cable Ø5*3000mm 4-core shielded
Wiring code

Red--Excitation+    Black--Excitation-

Green--Signal+     White--Signal-



Through Hole Force Sensor 10kN 20kN 30kN Hollow Load Cell 50kN 100kN 200kN

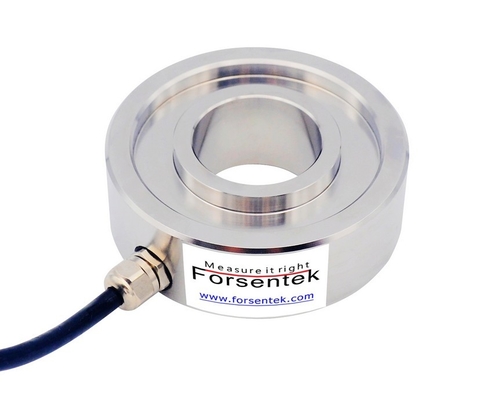

100kN_THROUGH_HOLE_FORCE_SENSOR_200kN

Output signal of load cell FDBG:

Load cell output: = (Power supply * Rated output) * Load / Capacity
Rated output of Hollow Load Cell FDBG is normally around 1.5mV/V.
Power supply of Washer Type Force Sensor FDBG is normally within 3-15V.
Load / Capacity is within 0-1.
So the output range of Clamping Force Transducer FDBG is normally within 0…+22.5mV.

Example one: Through Hole Load Cell FDBG-100kN with 1.5mV/V sensitivity powered by 10V DC,the output range is 0mV...+15mV.
Example two: Hollow Type Load Cell FDBG-200kN with 1.5mV/V rated output powered by 5V DC,the output range is 0mV...+7.5mV.

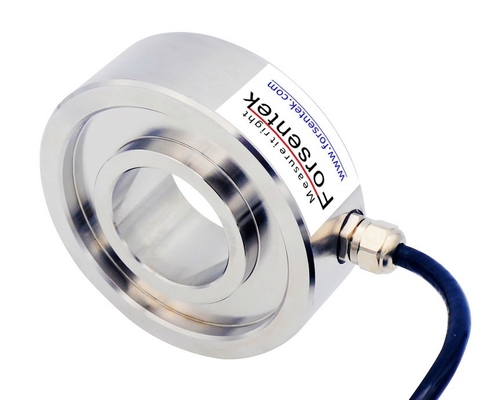

30kN_THROUGH_HOLE_FORCE_SENSOR_50kN

The mV/V output from the wheatstone bridge sometimes can hardly be processed directly, a signal conditioner can be used with the load cell to deliver 0~5V, 0-10V or 4-20mA output.

Example: Washer  Type Load Cell FDBG-50kN working with amplifier FSC(0-5V)-24V,the Load-Voltage relationship will be 0-50kN compression force VS 0-5V output, which is linear regardless of the measurement error, 1V output corresponds to 10kN compression load, 2V output corresponds to 20kN press force, and so on.

Thru-hole Loadcell FDBG can also work with digital indicator FPT to deliver below functions:

-Display force value in real time

-Peak holding to grab the maximum force during testing

-RS485 or RS232 interface

-0-5V/0-10V/4-20mA analog output

-Switch output

10kN_THROUGH_HOLE_FORCE_SENSOR_20kN

Through Hole Force Sensor 10kN 20kN 30kN Hollow Load Cell 50kN 100kN 200kN

100kN_HOLLOW_Load_Cell_50kN

Ordering code Measurement Range Force direction
FDBG-10kN 0-1000kgf / 0-2200lbf Compression
FDBG-20kN 0-2000kgf / 0-4500lbf
FDBG-30kN 0-3000kgf / 0-6700lbs
FDBG-50kN 0-5000kgf / 0-11200lbf
FDBG-100kN 0-10 ton / 0-22.5klb
FDBG-200kN 0-20 ton / 0-45klbf



Click here to download datasheet
