Single Ended Load Cell 5klb 7.5klbf 10klb 20klb Shear Beam Load Cell

Single Ended Load Cell 5klb 7.5klbf 10klb 20klb Shear Beam Load Cell

Single Ended Load Cell 5klb 7.5klbf 10klb 20klb Shear Beam Load Cell
Single Ended Load Cell 5klb 7.5klbf 10klb 20klb Shear Beam Load Cell Single Ended Load Cell 5klb 7.5klbf 10klb 20klb Shear Beam Load Cell Single Ended Load Cell 5klb 7.5klbf 10klb 20klb Shear Beam Load Cell Single Ended Load Cell 5klb 7.5klbf 10klb 20klb Shear Beam Load Cell

Large Image :  Single Ended Load Cell 5klb 7.5klbf 10klb 20klb Shear Beam Load Cell Get Best Price

Product Details:
Place of Origin: China
Brand Name: Forsentek
Certification: CE
Model Number: FH8C
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: Carton
Delivery Time: 2-6 weeks
Payment Terms: T/T,Western Union or Paypal
Supply Ability: 6900pcs/month
Detailed Product Description
Usage: Weight Measurement Type: Single Ended Shear Beam Load Cell
Output: Analog Transducer Capacity: 0-20klbf
Material: Alloy Steel

Single Ended Load Cell 5klb 7.5klbf 10klb 20klb Shear Beam Load Cell

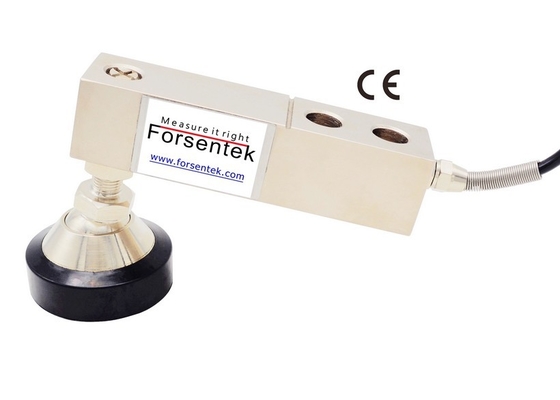

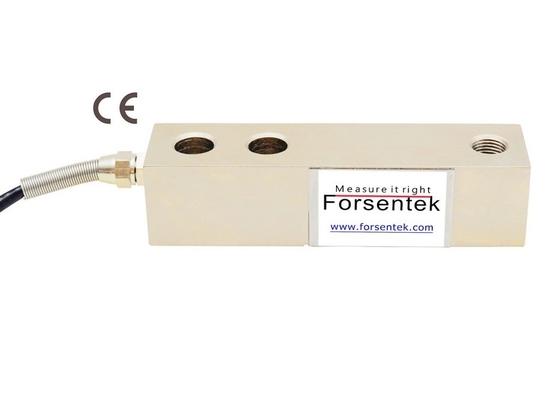

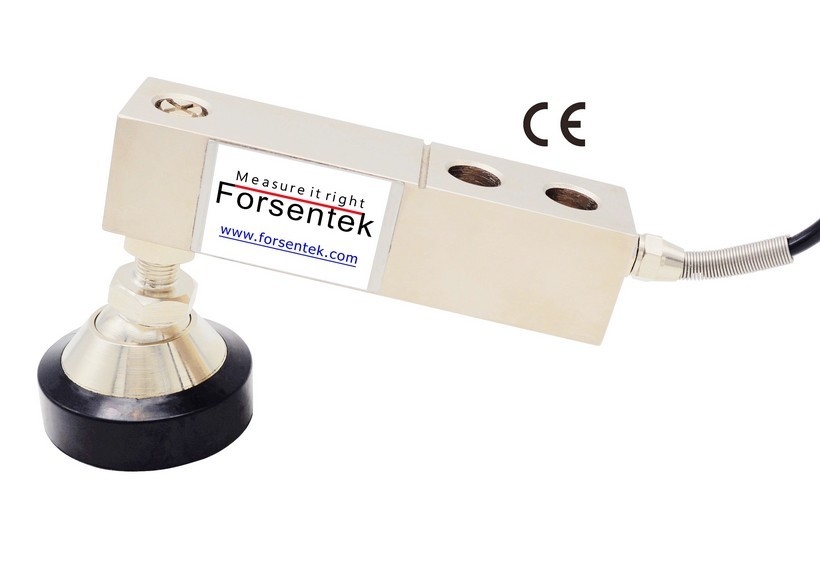

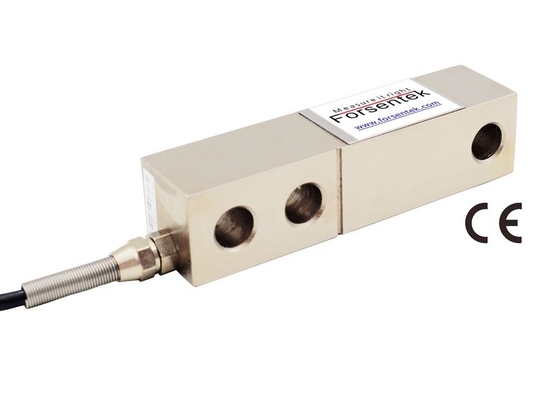

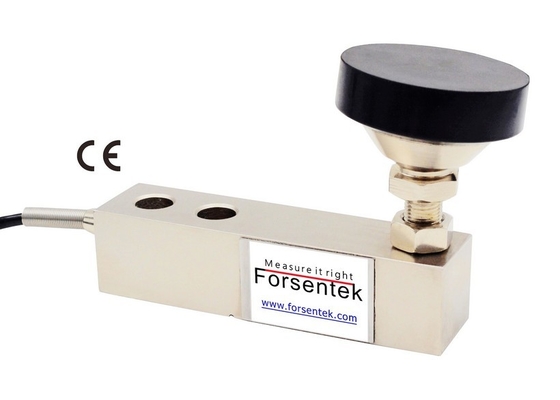

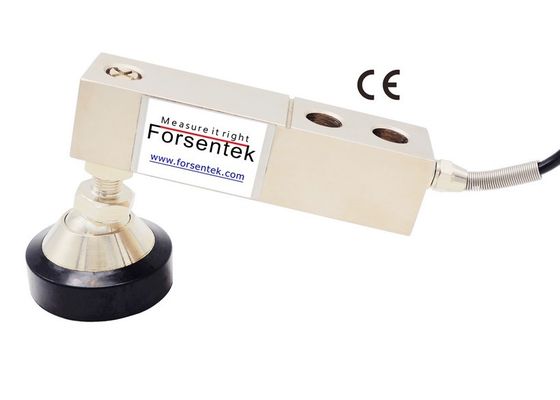

Single ended shear beam load cell FH8C is made of alloy steel utilizing strain gauge technology, high sensitivity with unified 3.0mV/V rated output. Single ended weight sensor FH8C offers 220lb / 550lb / 1klb / 1.5klb / 2klb / 2.5klb / 3klb / 4klbf / 5klb / 7.5klb / 10klb / 20klb (100kg / 250kg / 500kg / 1000kg / 1500kg / 2000kg / 2500kg / 3000kg / 5000kg / 10000kg) rated capacities to choose from, loadcell sensor FH8C is temperature compensated with maximum 0.02% non-linearity of the full scale. High accuracy, competitive price, IP67 hermetically sealed, you may find shear beam load cell transducer FH8C applicable for platform scales, batch weighing, hopper scales, garbage weighing system, medical bed weighing and so on.

Shear_Beam_Load_Cell_20klb
Dimensions(Unit in milimeter)
Single_Ended_Load_Cell_5klbf
Shear_Beam_Load_Cell_10klb
Specifications

Capacity100kg 250kg 500kgf 1t 1.5ton 2t 2.5t 3ton 5t 10t
220lb 550lb 1klb 1.5klbs 2klbf 2.5klb 3klbf 5klb 7.5klb 10klb 20klb
Rated output3.0 mV/V
Excitation3-15V
Zero balance±0.05mV/V
Nonlinearity±0.02% of capacity
Hysteresis±0.02% of capacity
Nonrepeatability±0.017% of capacity
Creep(30min)±0.02% of capacity
Safe overload150% of capacity
Ultimate overload250% of capacity
Compensated temperature-10...+40oC
Operating temperature-35...+65oC
Temperature shift zero±0.02% R.O./10oC
Temperature shift span±0.02% R.O./10oC
Input resistance350±10 ohms
Output resistance350±5 ohms
Insulation resistance>5000M ohms
Ingress protectionIP67
Material of elementNickel-plated alloy steel
Cable0.5-2t Ø5x4000mm 4-core shielded cable
Other capacities Ø5x6000mm 4-core shielded cable
Wiring code

Red-Excitation+  Black-Excitation-

Green-Signal+  White-Signal-  Yellow-Shield



Single Ended Load Cell 5klb 7.5klbf 10klb 20klb Shear Beam Load Cell

Shear_Beam_Load_Cell_7.5klb

A load cell (or loadcell) is a transducer which converts force into a measurable electrical output. Strain gauge based load cells are the most commonly used type and suitable for almost all industrial applications. Strain gauge load sensors contain wheatstone bridge within them to deliver mV output signal which is proportional to the applied load/force under constant power supply, thus the load/force can be measured by measuring the output signal from the transducer.

Load cell output: = (Power supply * Rated output) * Load / Capacity
The rated output of weight transducer FH8C is around 3mV/V.
The power supply is normally within 3-15V.
Load / Capacity is within 0-1.
So the output signal range of loadcell FH8C is normally within 0...+45mV.
Example one: Single Ended Load Cell FH8C-5klb with 3.0mV/V rated output powered by 10V DC, the output range is 0...+30mV.

Example two: Shear Beam Load Cell FH8C-10klb with 3.0mV/V rated output powered by 5V DC, the output range is 0...+15mV.

Shear_Beam_Load_Cell_5klb

Click here to download datasheet
